SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

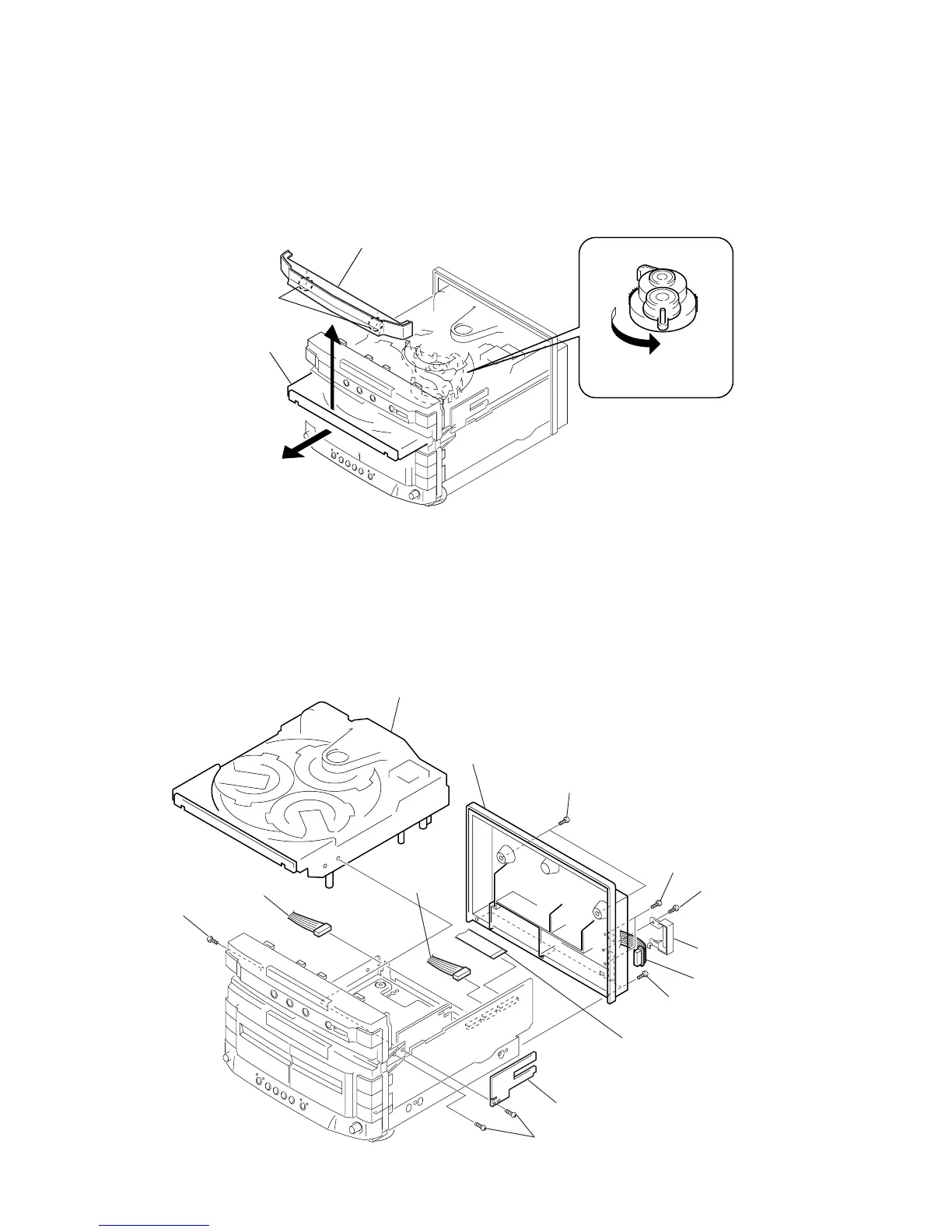

3-1. LOADING PANEL
3-2. BACK PANEL AND CD MECHANISM DECK
2 Pull-out the disc tray.
1 Turn the cam to the
direction of arrow.
3 Loading panel
(Remove two claws)
Two claws
1 Screw
(BVTP3x8)
2 Cover (SC)
4 Two screws
(BVTP3x10)
3 System cable
5 Three screws
(BVTP3x10)
6 Two screws
(BVTP3x8)
7 Back panel
8 Two screws
(BVTP3x10)
!º Screw
(BVTP3x10)
!¡ Flat type wire
(19core, CNS103)
!™ Connector
(CN111)
!£ Connector
(CN112)
!¢ CD mechanism deck
9 Dummy board
