Recording/Playback
* Set [TV TYPE] according to your TV.
b Notes
• When the A/V connecting cable is used to output images, images are output with SD (standard definition)
image quality.
z Tips
• If you connect your camcorder to the TV using more than one type of cable to output images, the order of
priority of the TV input jacks is as follows:
HDMI t component t S VIDEO t video.
: Signal flow
Type Camcorder Cable TV HOME MENU setting
(SETTINGS) t
[OUTPUT SETTINGS]
t [COMPONENT] t
[480i] (p. 55)
(SETTINGS) t
[OUTPUT SETTINGS]
t [TV TYPE] t [16:9]/
[4:3]* (p. 55)
• If you connect only component video, audio signals are not output. Connect the white and red plugs to
output audio signals.
(SETTINGS) t
[OUTPUT SETTINGS]
t [TV TYPE] t [16:9]/
[4:3]* (p. 55)
• When the S VIDEO plug (S VIDEO channel) is connected, audio signals are not output. To output audio
signals, connect the white and red plugs to the audio input jack of your TV.
• This connection produces higher resolution images compared with the A/V connecting cable (Type ).
(SETTINGS) t
[OUTPUT SETTINGS]
t [TV TYPE] t [16:9]/
[4:3]* (p. 55)

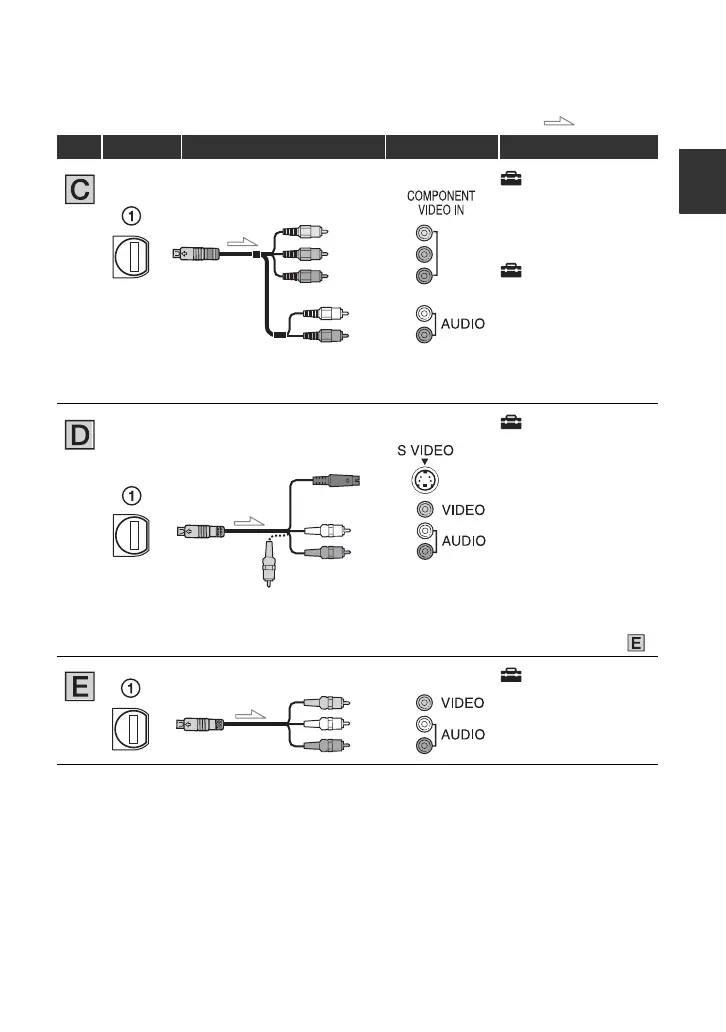

Component A/V cable
(supplied)
(Green) Y
(Blue) P B /C B
(Red) P R /C R
(Red)
(White)
A/V connecting cable with
S VIDEO (sold separately)
(Red)
(White)
(Yellow)
A/V connecting cable
(supplied)
(Red)
(White)
(Yellow)
