Sony ICD-ST25 - 5 Exploded Views; Upper Lid Block

SECTION 5
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
34
ICD-ST25
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

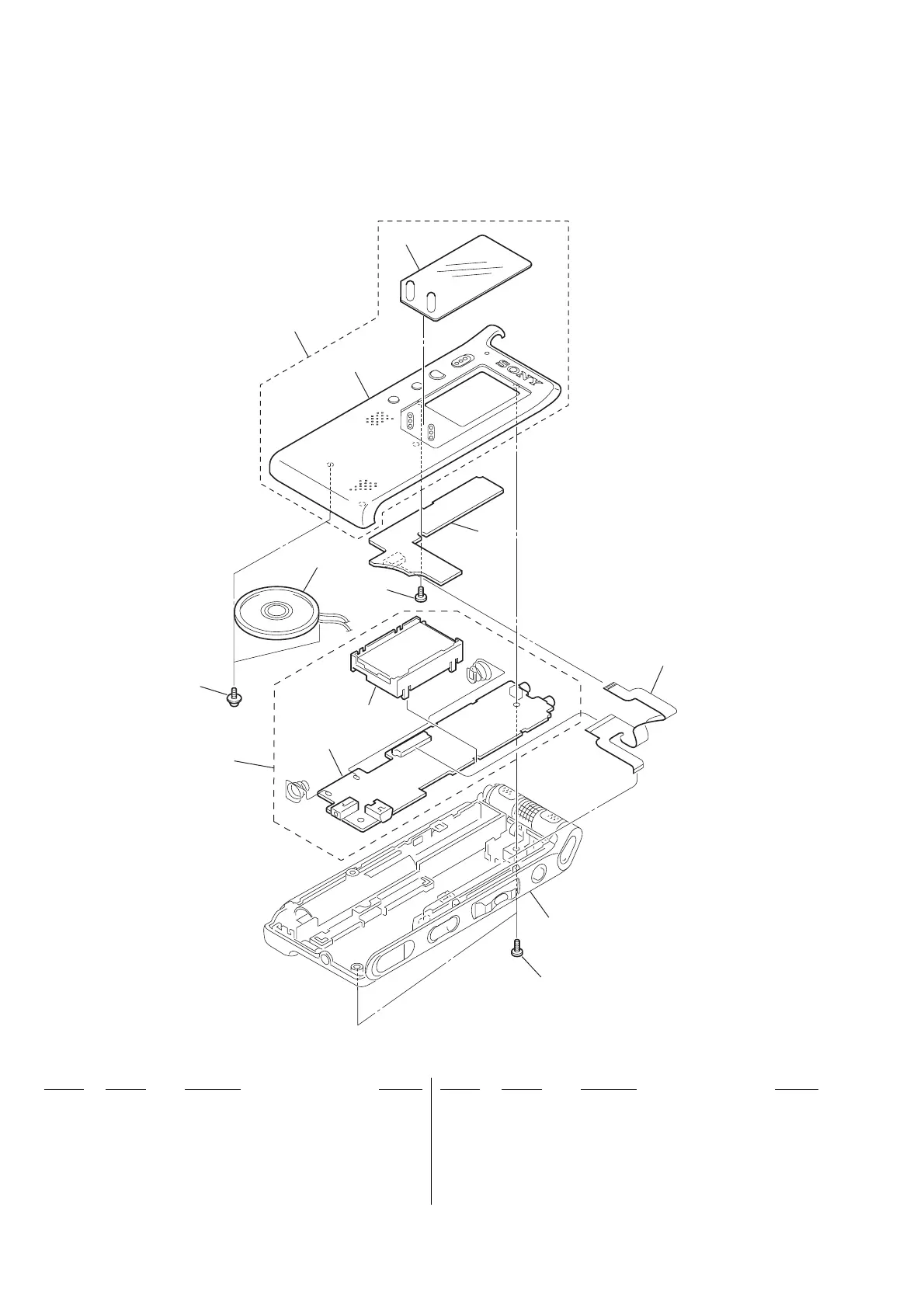

5-1. UPPER LID BLOCK
1 3-318-203-81 SCREW (B1.7X7), TAPPING
* 3 A-4547-174-A MAIN BOARD, COMPLETE
4 X-3383-280-1 HOLDER (LCD) ASSY
5 1-687-791-11 PWB, FLEXIBLE
6 4-973-264-02 SCREW (1.7X2.5)
7 3-318-382-91 SCREW (1.7X2.5), TAPPING
* 8 A-4547-169-A F-SW BOARD, COMPLETE
9 X-2022-142-1 LID SUB ASSY, UPPER (EXCEPT AEP)
9 X-2022-143-1 LID SUB ASSY, UPPER (AEP)
10 3-266-210-01 WINDOW (LCD)
SP3001 1-529-276-21 SPEAKER (2.8cm)
1
3
5
4
6
7
8
9
10
not
supplied
not
supplied
SP3001
cover assy
