ICD-ST25
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
Note : Disassemble the unit in the order as shown below.
2-1.
CASE BLOCK ASSY
(Page 4)
2-3.
MAIN BOARD
(Page 5)
2-2.
F-SW BOARD
(Page 5)
2-5.
MICROPHONE UNIT
(Page 7)
2-4.
S-SW BOARD,
MICROPHONE BLOCK ASSY
(Page 6)
SET

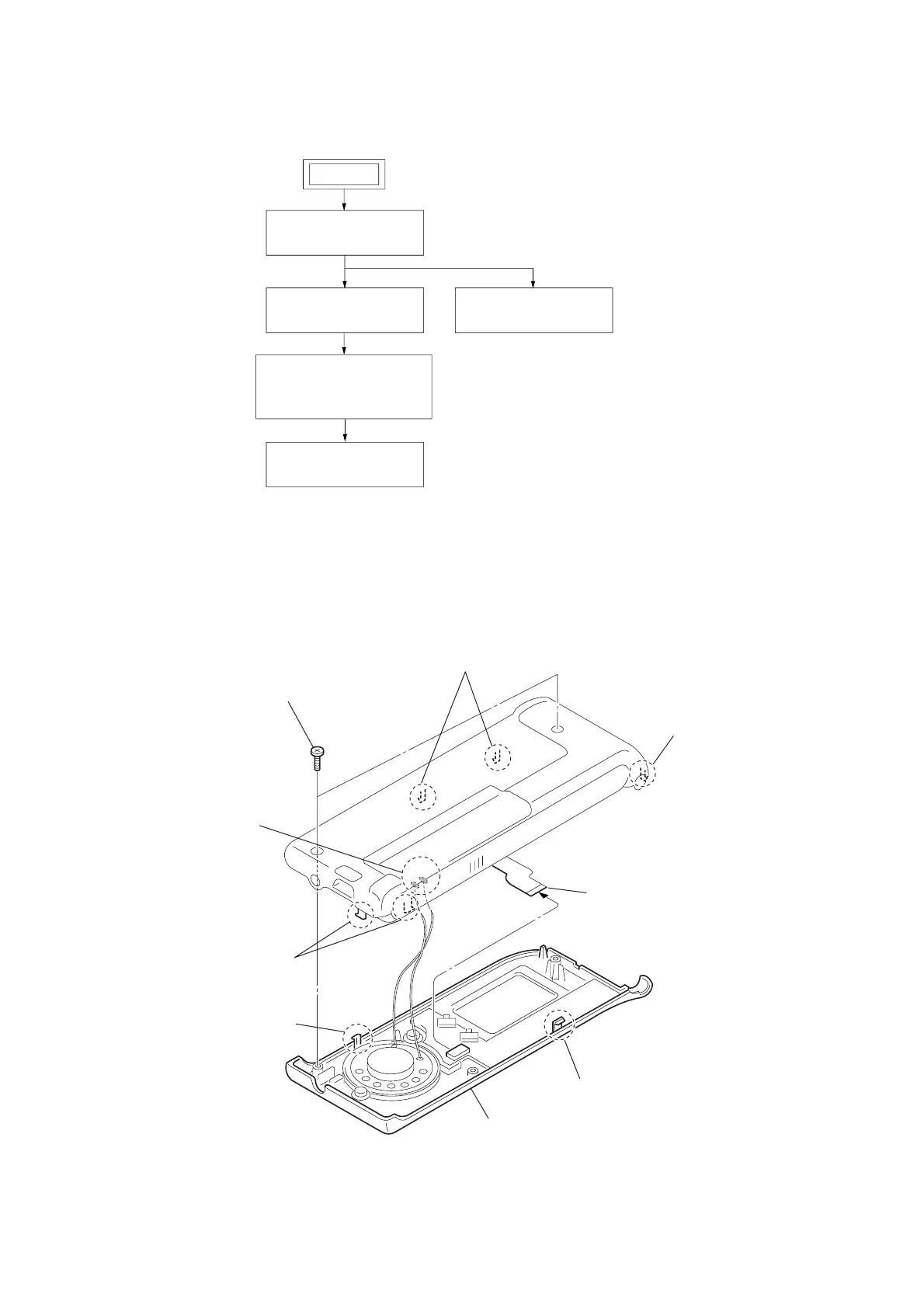

2-1. CASE BLOCK ASSY
1 two screws
(+B 1.7
× 7)
2 flexible board
4 case block assy
two claws
two claws
claw
claw
claw
3 Remove two solders
of the MAIN board.
