Sony ICF-SW1005 - Using the SW Compact Antenna AN-71; AN-71 Antenna Setup

For Better SW/MW/LW Reception

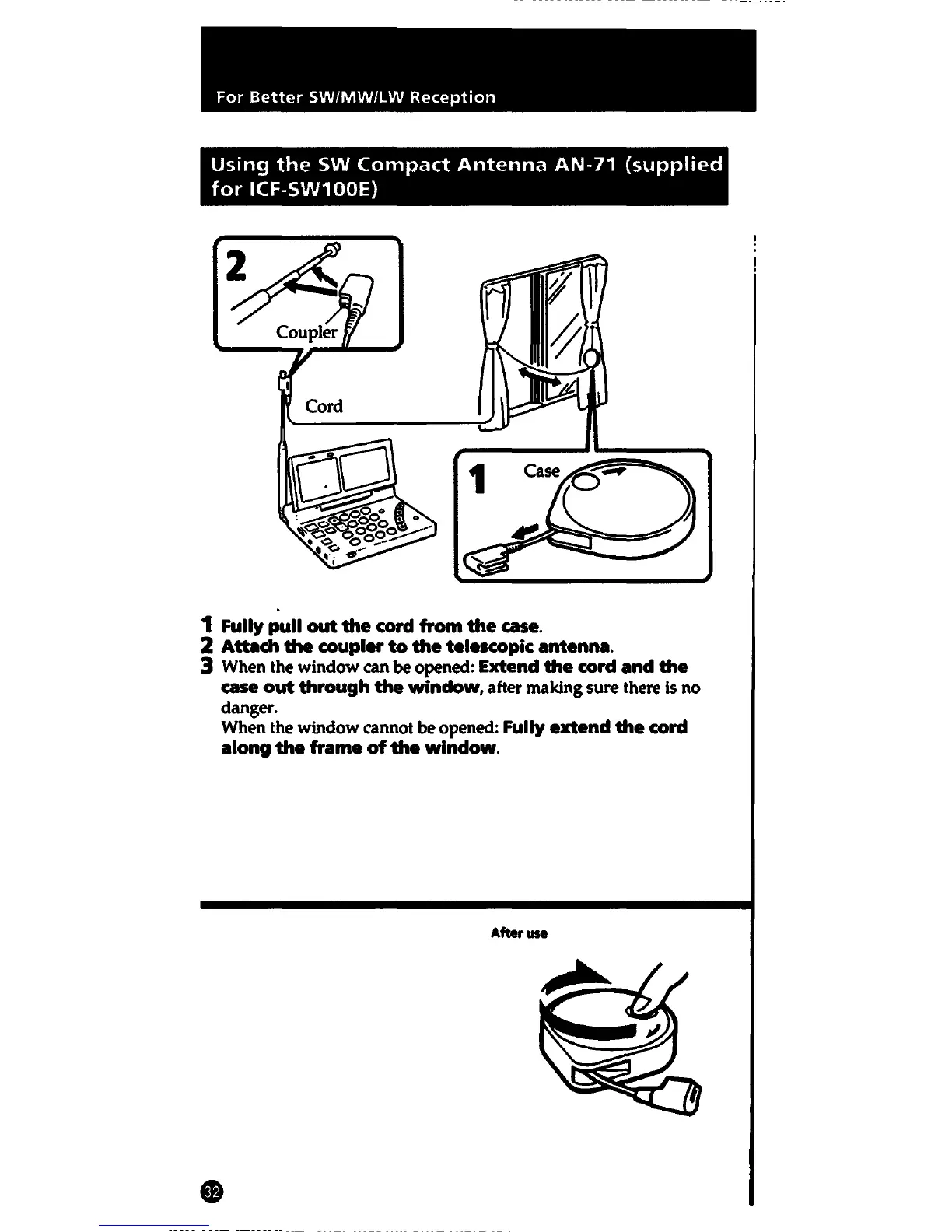

Using the SW Compact Antenna AN-71 (supplied
for ICF-SW1 OOE)
1 Fully pull out the cord from the case.
2 Attach the coupler to the telescopic antenna.
3 When the window can be opened: Extend the cord and the
case out through the window, after making sure there is no
danger.
When the window cannot
be opened: Fully extend the cord
along the frame of the window.
After use
