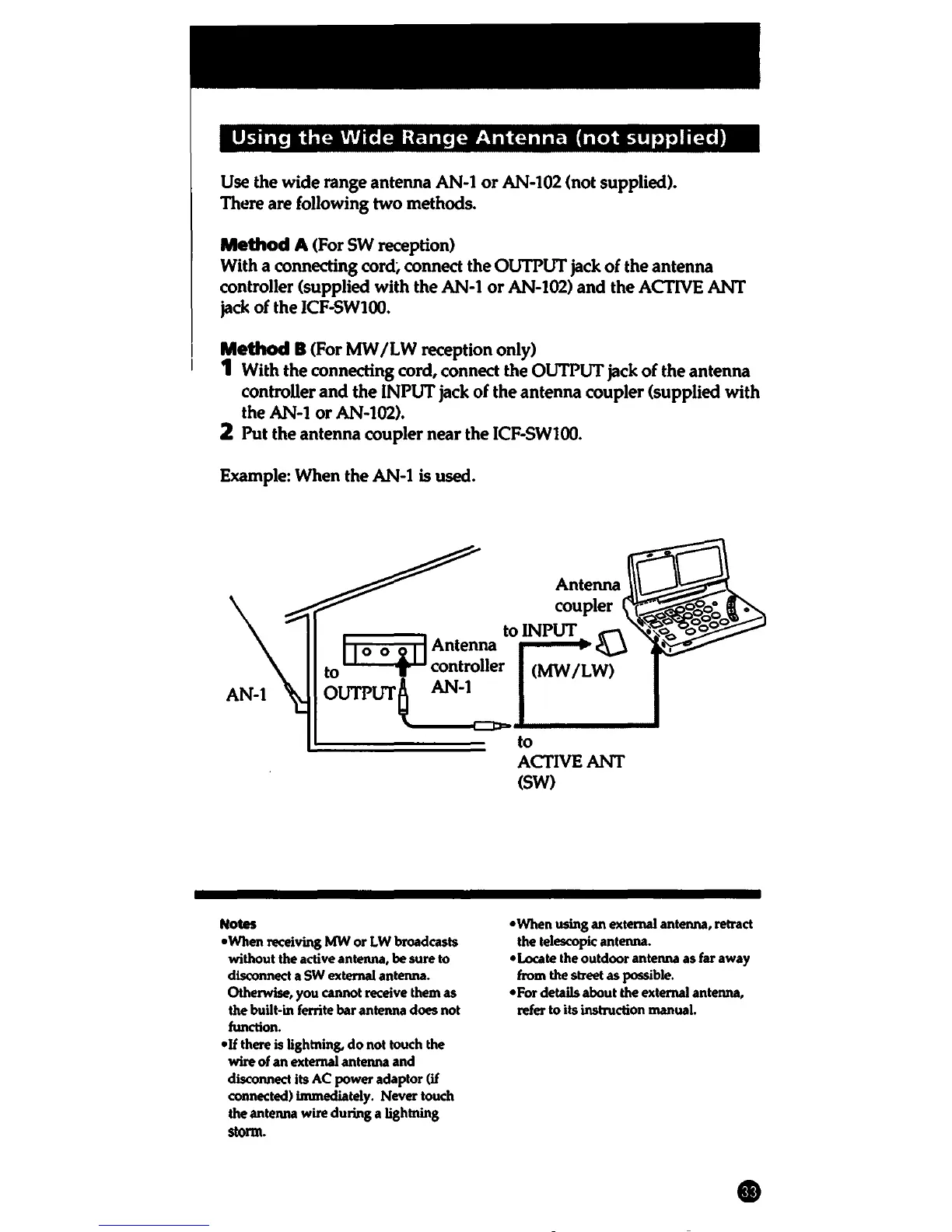

Using
the
Wide
Range
Antenna
(not
supplied)
Use the
wide
range antenna AN-1
or
AN-102 (not supplied).
There
are
following
two
methods.
Method A (For SW reception)
With a connecting
cord~
connect
the
OUTPUT jack
of
the
antenna
controller (supplied
with
the AN-1
or
AN-102)
and
the
ACTIVE ANT
jack
of
the
ICF-SW100.
Method B (For
MW
/LW
reception only)
1 With
the
connecting cord, connect the OUTPUT jack
of
the
antenna
controller
and
the
INPUT jack
of
the
antenna
coupler (supplied
with
the AN-1
or
AN-102).
2
Put
the
antenna
coupler
near
the
ICF-SW100.
Example: When
the
AN-1 is used .
....._~~cc:::tr:=J:Jo•.._
__________
_.
Notes
•When
receiving
MW
or
LW
broadcasts
without
the
active antenna, be
sure
to
disconnect a
SW
external antenna.
Otherwise,
you
cannot receive them
as
the
built-in ferrite bar antenna
does
not
function.
•If
there is lightning,
do
not touch the
wire
of
an
external
antenna
and
disconnect its AC
power
adaptor
(if
connected) immediately. Never touch
the
antenna wire
during
a lightning
storm.
to
ACTIVE
ANT
(SW)
•When
using
an
external antenna, retract
the telescopic antenna.
•Locate the
outdoor
antenna
as
far away
from the
street
as
possible.
•For details
about
the external antenna,
refer
to
its instruction manual.
•
To Next Page
