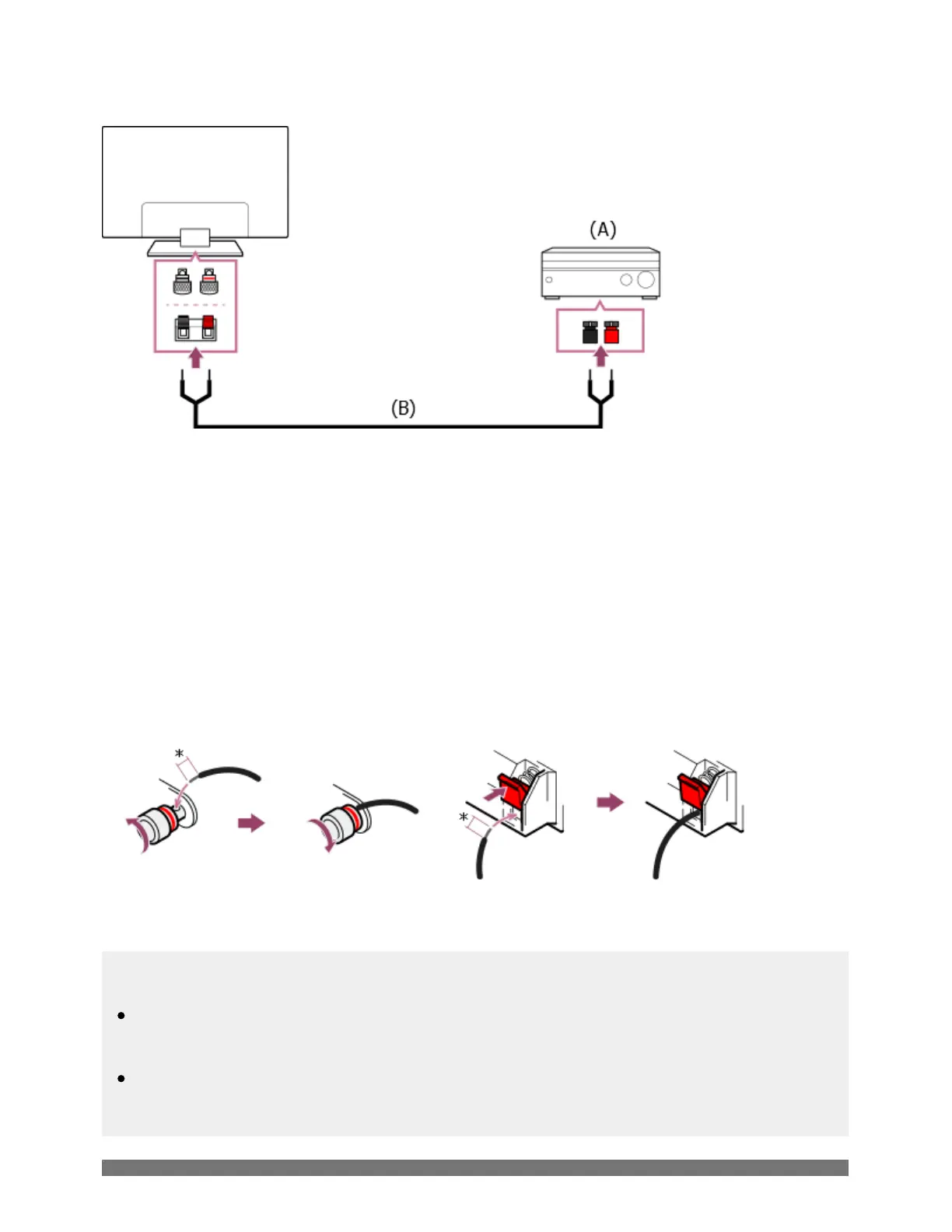

Connect the TV and AV receiver with a speaker cable.
(A) AV receiver
(B) Speaker cable (not supplied)
Use a speaker cable (not supplied) to connect the AV receiver to the CENTER SPEAKER IN terminal
of the TV.
When connecting, make sure to twist the ends of the speaker cable and insert them into the connection
terminals of the TV and AV receiver.
The CENTER SPEAKER IN terminal varies depending on the model. Refer to the figures below when
connecting the speaker cable.
*Strip about 10 mm (13/32 inches) of insulation from the speaker cable at each end.
Note
To prevent the wires of the speaker cable from touching each other, make sure not to strip too
much of the speaker cable.
Connect the speaker cable properly so that the polarities (+/-) between the TV and AV receiver
match.
