Watching the picture input from
optional equipment

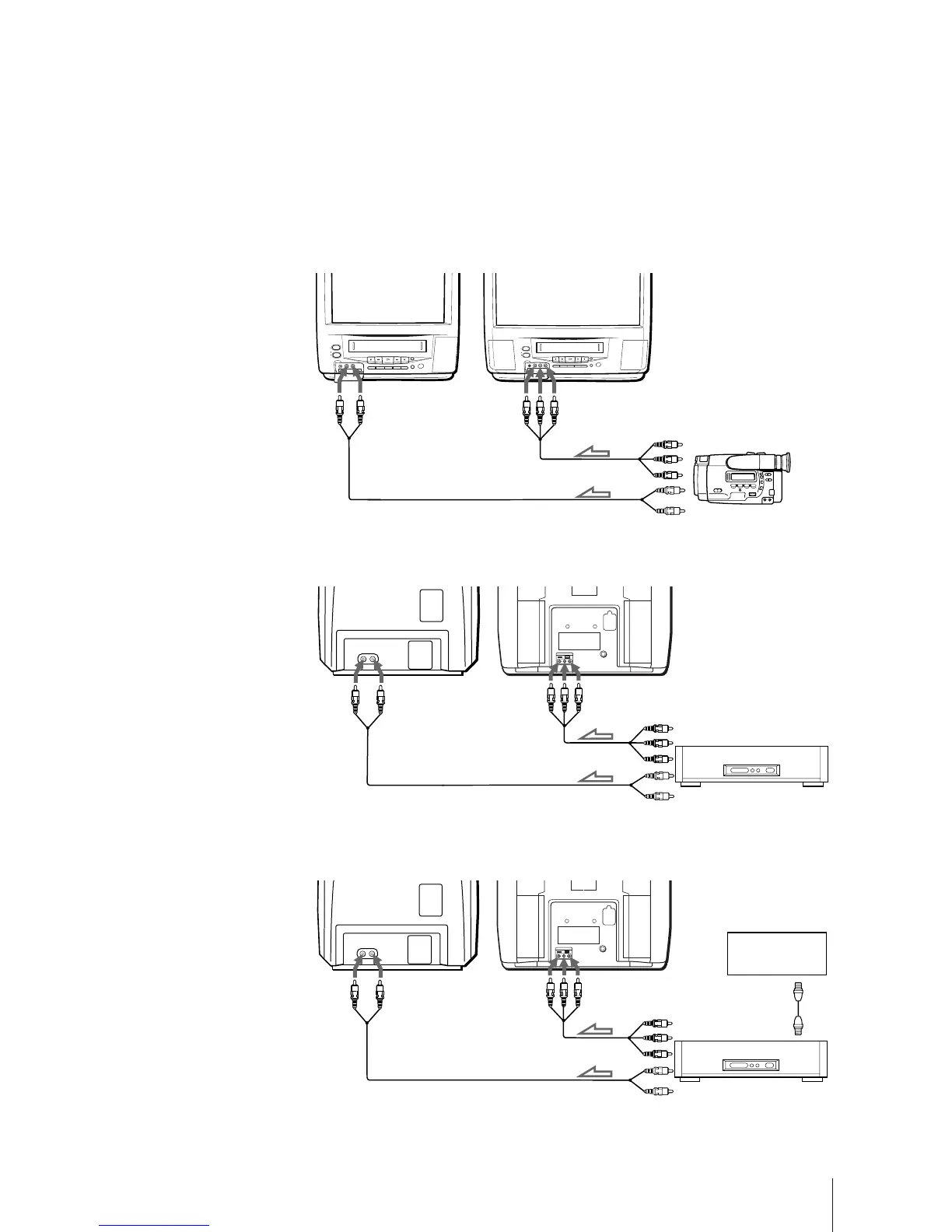

To connect a video camera
To connect a VCR without a cable box
To connect a VCR with a cable box
To watch the video input signal
Press INPUT SELECT so that “LINE” appears on the screen.
Connecting Optional Equipment
Notes
• When connecting optional
equipment, such as videogames,
please use the connecting cables
recommended by the equipment's
manufacturer.
• To connect monaural video
equipment, connect the audio
output of the video equipment to
AUDIO L (MONO) of the video
TV (KV-20VS40 only).
Front
to video/audio outputs
to video/audio outputs
Cable box
to LINE IN (VIDEO/AUDIO L
(MONO)/R) jacks
Front (KV-20VS40 only)
Rear
Rear (KV-20VS40 only)
to VIDEO/AUDIO
jacks
to video/audio outputs
to VIDEO/AUDIO
jacks
Rear
Rear (KV-20VS40 only)
to VIDEO/AUDIO
jacks
to LINE IN (VIDEO/AUDIO L
(MONO)/R) jacks
to LINE IN (VIDEO/AUDIO
L (MONO)/R) jacks
