Sony KV-32HQ100B Service Manual

SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

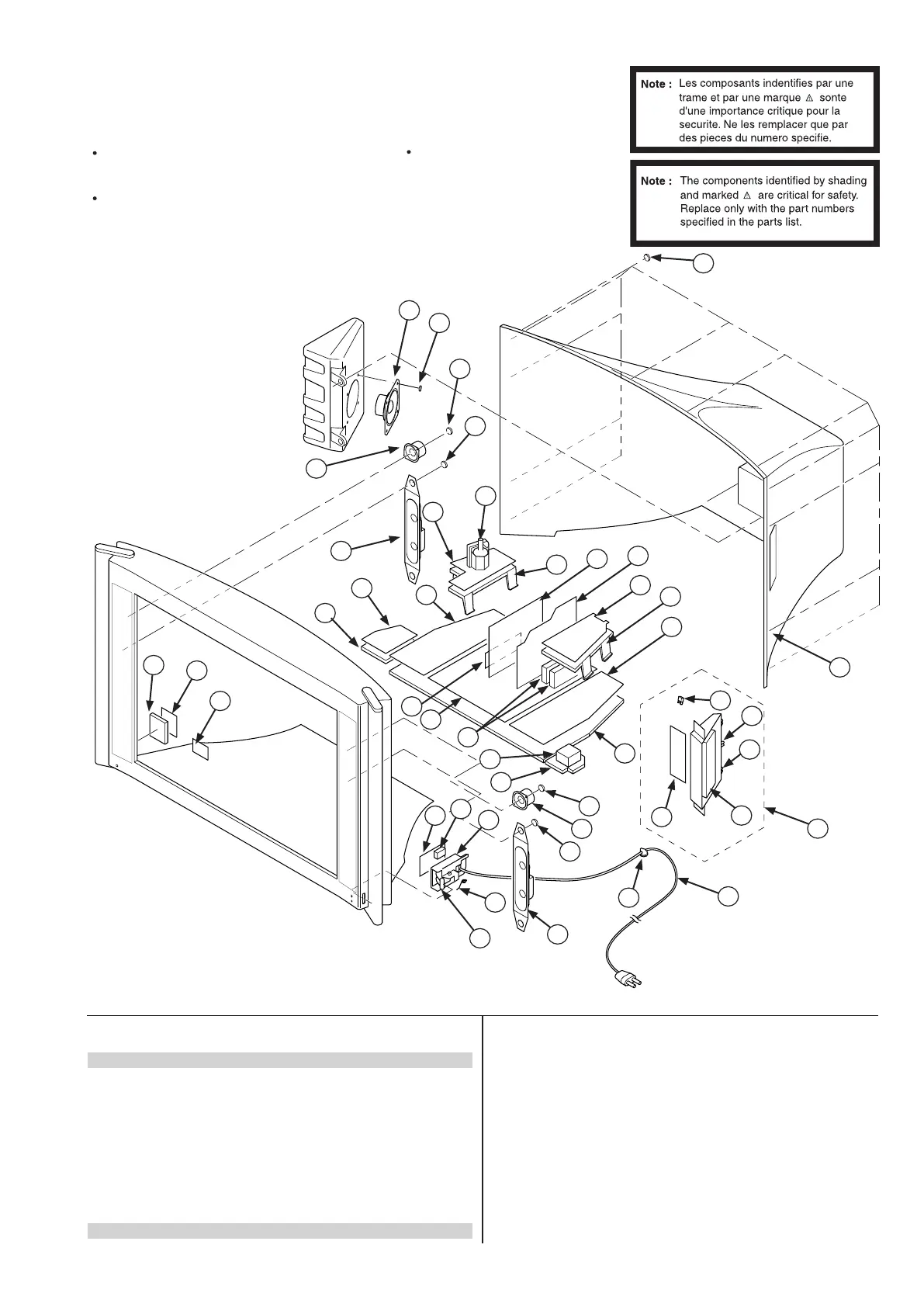

6-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 75 -
1 *A-1405-851-A F BOARD, COMPLETE (KV-32HQ100B/E/K)
*A-1405-512-A F BOARD, COMPLETE (KV-36HQ100B/E/K)
2 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
3 *4-095-033-01 F BRACKET
4 *4-095-037-01 SPRING BUTTON POWER
5 *4-095-026-01 BUTTON, POWER
6 1-825-177-11 LOUDSPEAKER (4.2X24CM)
7 7-685-663-71 SCREW, + BVTP 4X16 TYPE2 IT-3
8 1-542-437-11 SPEAKER (2CM)
9 7-685-661-14 SCREW, + BVTP 4X12 TYPE2 IT-3
10 *4-206-106-26 BRACKET, MAIN
11 *4-202-531-01 AC CORD LOCK (SC)
12 £ 1-823-853-11 CORD, POWER
13 A-1604-541-A DOOR COMPL. ASSY (14-18)
14 *A-1405-514-A H BOARD, COMPLETE
15 4-095-031-01 DOOR
16 4-205-743-11 SPRING, TORSION
17 4-047-464-01 CATCHER, PUSH
18 4-205-682-01 DAMPER
19 *A-1405-704-A G BOARD, COMPLETE (KV-32HQ100B/E/K)
*A-1405-703-A G BOARD, COMPLETE (KV-36HQ100B/E/K)
20 4-206-383-11 BRACKET, G1
21 *A-1405-505-A G1 BOARD, COMPLETE
22 *A-1405-503-A J4 BOARD, COMPLETE
23 *A-1405-504-A N BOARD, COMPLETE
CONTINUED....
8
13
14
19
33
32
9
7
6
26
25
23
24
22
21
20
18
29
30
17
15
16
11
9
7
6
4
5
3
2
1
41
40
36
35
12
28
27
10
31
37
8
38
39
34
