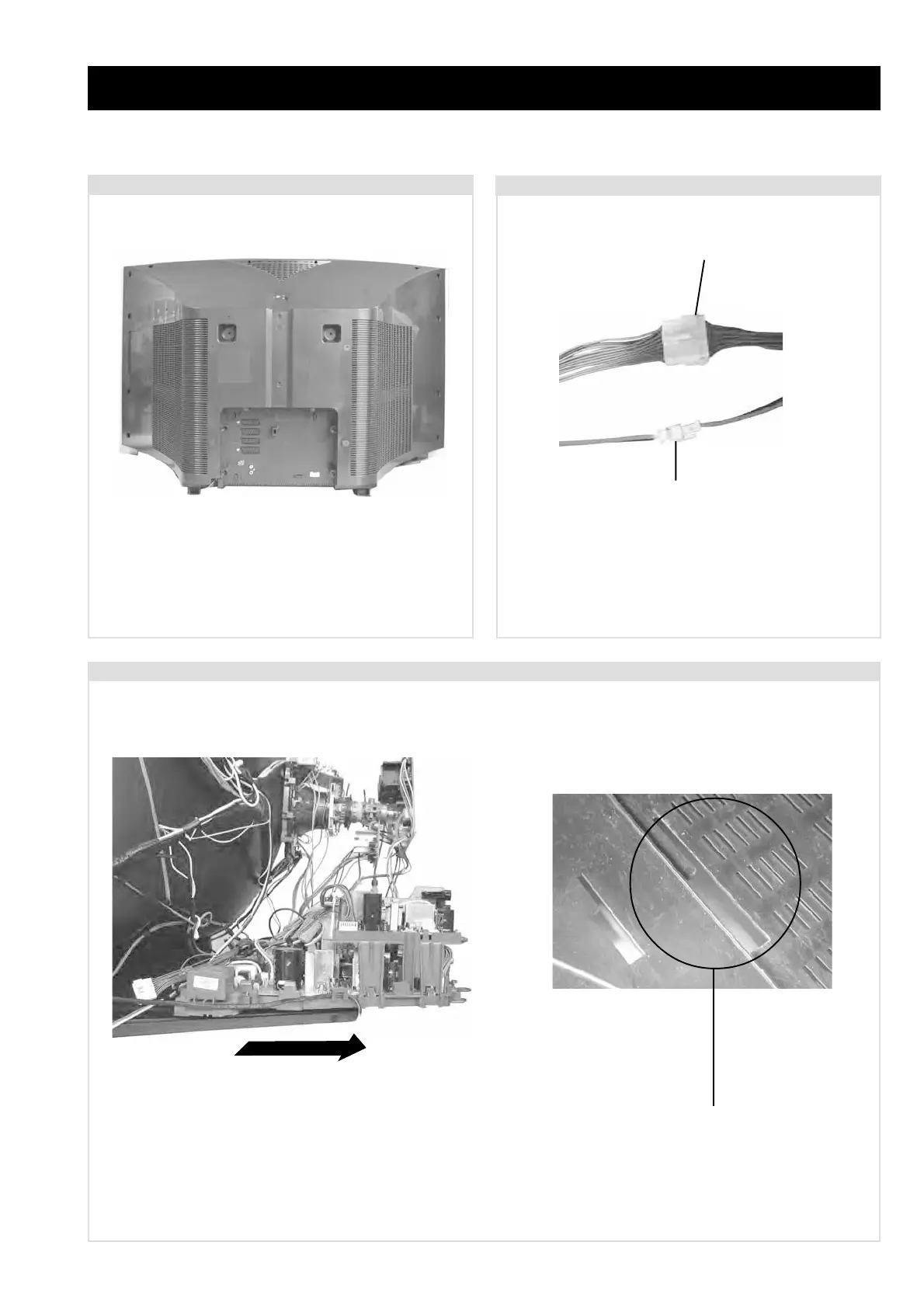

SECTION 2 DISASSEMBLY
2-1. Rear Cover Removal
To remove lift the main bracket rear slightly and slide the
chassis away from the beznet. Ensure that the interconnecting
leads are released from their purse locks to prevent damage
being caused.
When refitting the chassis ensure that the main bracket is
located in the beznet guide slots before sliding the chassis
forwards. Refit the inter-connecting leads in their respective
purse locks.
2-3. Chassis Removal and Refitting
2-2. Side Control and Speaker Disconnection
Remove the rear cover fixing screws indicated and pull the
rear cover backwards away from the set. Take care when
removing the rear cover not to damage the side control and
speaker cables, [disconnect the side control and speaker
connectors]. The side control and speaker is fitted inside
the rear cover.
=>
=>
=>
=>
=>
=>
=>
=>
=>
=>
=>
=>
=>
=>
=>
Speaker
Connector
Before completely removing the rear cover disconnect the
side control connector and speaker connector which is
located on the inside of the set.
Side Control
Connector
