Sony KV-32HQ100B Service Manual

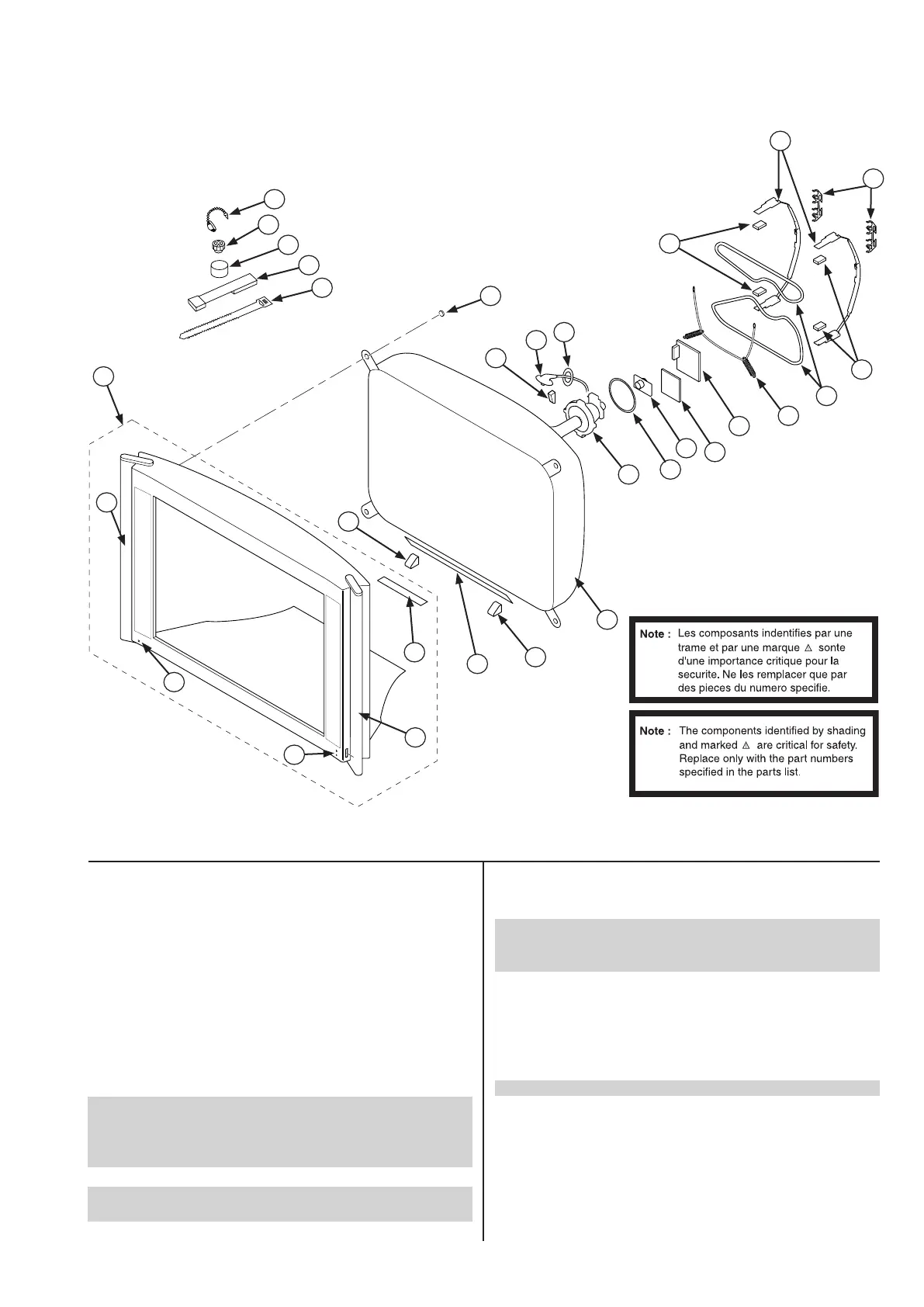

6-2. PICTURE TUBE
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 77 -
51 X-4041-553-1 BEZNET ASSEMBLY 52-56 (KV-32HQ100B/E/K)
X-4041-552-1 BEZNET ASSEMBLY 52-56 (KV-36HQ100B/E/K)
52 X-4041-879-1 FRONT LEG LEFT ASSY (KV-32HQ100B/E/K)
X-4041-874-1 FRONT LEG LEFT ASSY (KV-36HQ100B/E/K)
53 *4-095-027-01 GUIDE LIGHT LEFT
54 *4-095-028-01 GUIDE LIGHT RIGHT
55 X-4041-879-1 FRONT LEG RIGHT ASSY (KV-32HQ100B/E/K)
X-4041-873-1 FRONT LEG RIGHT ASSY (KV-36HQ100B/E/K)
56 4-204-865-01 SHEET, BLOTTING (KV-32HQ100B/E/K)
4-204-865-21 SHEET, BLOTTING (KV-36HQ100B/E/K)
57 4-204-66-01 SHEET, BLOTTING (KV-32HQ100B/E/K)
4-203-128-21 SHEET, BLOTTING (KV-36HQ100B/E/K)
58 *4-203-098-01 SUPPORTER, CRT
59 £ 8-735-079-05 CRT W76LLZ060X (KV-32HQ100B/E/K)
£ 8-735-115-05 CRT W86LXX000X (KV-36HQ100B/E/K)
60 £ 1-451-520-31 DY (Y32RVC3) (KV-32HQ100B/E/K)
£ 8-451-538-11 DY Y36DECP-M (KV-36HQ100B/E/K)
61 1-452-896-11 COIL, NA ROTATION (RT200)
62 £ 8-453-022-21 NA2920-M2 (KV-32HQ100B/E/K)
£ 8-453-023-41 NA328M4 (KV-36HQ100B/E/K)
63 *A-1405-508-A VM BOARD, COMPLETE
64 *A-1405-502-A C2 BOARD, COMPLETE
65 4-369-318-21 SPRING, TENSION (KV-32HQ100B/E/K)
4-089-228-01 SPRING EXTENSION (KV-36HQ100B/E/K)
66 £ 1-424-888-11 COIL, DEGAUSSING (KV-32HQ100B/E/K)
£ 1-456-482-11 DEGAUSSING COIL (WITH LCC)
(KV-36HQ100B/E/K)
67 4-098-510-11 DGC, CUSHION (KV-32HQ100B/E/K)
4-098-501-11 DGC, CUSHION (KV-36HQ100B/E/K)
68 4-089-227-02 DGC CLIP (KV-36HQ100B/E/K)
69 *4-204-768-02 HOLDER, DGC (29)” (KV-32HQ100B/E/K)
4-064-945-05 HOLDER, DGC (KV-36HQ100B/E/K)
70 4-202-554-02 HOLDER, HV CABLE
71 £ 1-251-946-11 CAP ASSY, HIGH-VOLTAGE
72 3-704-495-03 SPACER, DY (KV-32HQ100B/E/K)
4-096-665-01 SPACER, DY (KV-36HQ100B/E/K)
73 4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
74 4-308-870-00 CLIP, LEAD WIRE
75 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM
76 1-452-032-00 MAGNET, DISK; 10MM
77 X-4387-214-1 PERMALLOY ASSY, CORRECTION
78 3-701-007-00 BAND, BINDING
71
70
67
66
65
64
61
60
59
68
67
52
53
55
58
69
63
62
58
56
54
51
72
73
74
75
76
77
78
57
