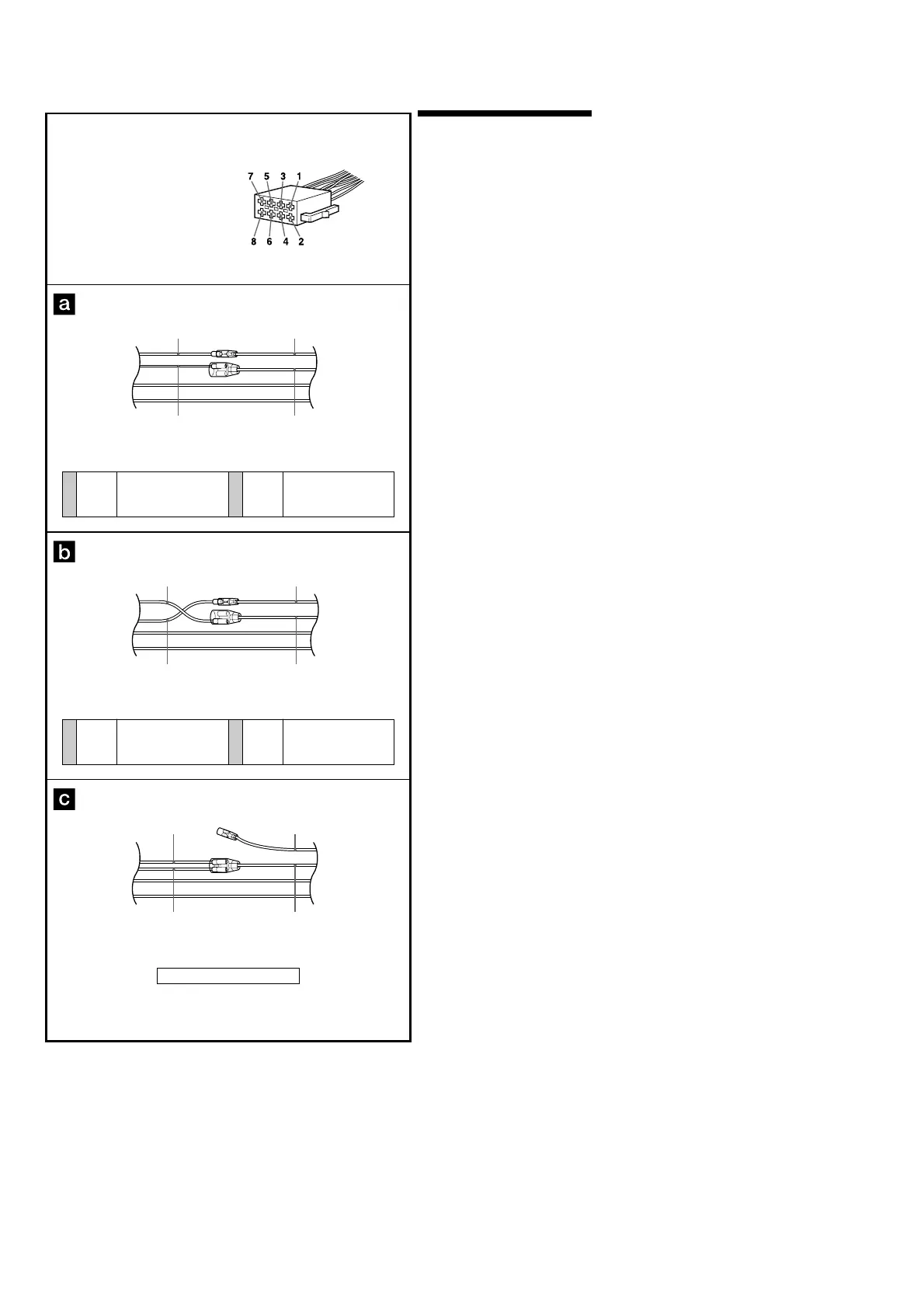

Power connection diagram
Auxiliary power connector may vary depending on
the car. Check your car’s auxiliary power connector
diagram to make sure the connections match
correctly. There are three basic types (illustrated
below). You may need to switch the positions of the
red and yellow leads in the car stereo’s power
connecting lead.
After matching the connections and switched
power supply leads correctly, connect the unit to
the car’s power supply. If you have any questions
and problems connecting your unit that are not
covered in this manual, please consult the car
dealer.
Auxiliary power connector
4
Yellow
continuous power supply
the car without ACC position
Red
Red
Yellow
Yellow
Red
switched power supply
7
4
Yellow switched power supply
RedRed
Yellow Yellow
Red continuous power supply
7
Red
Red
Yellow Yellow
