MDX-F5800
14

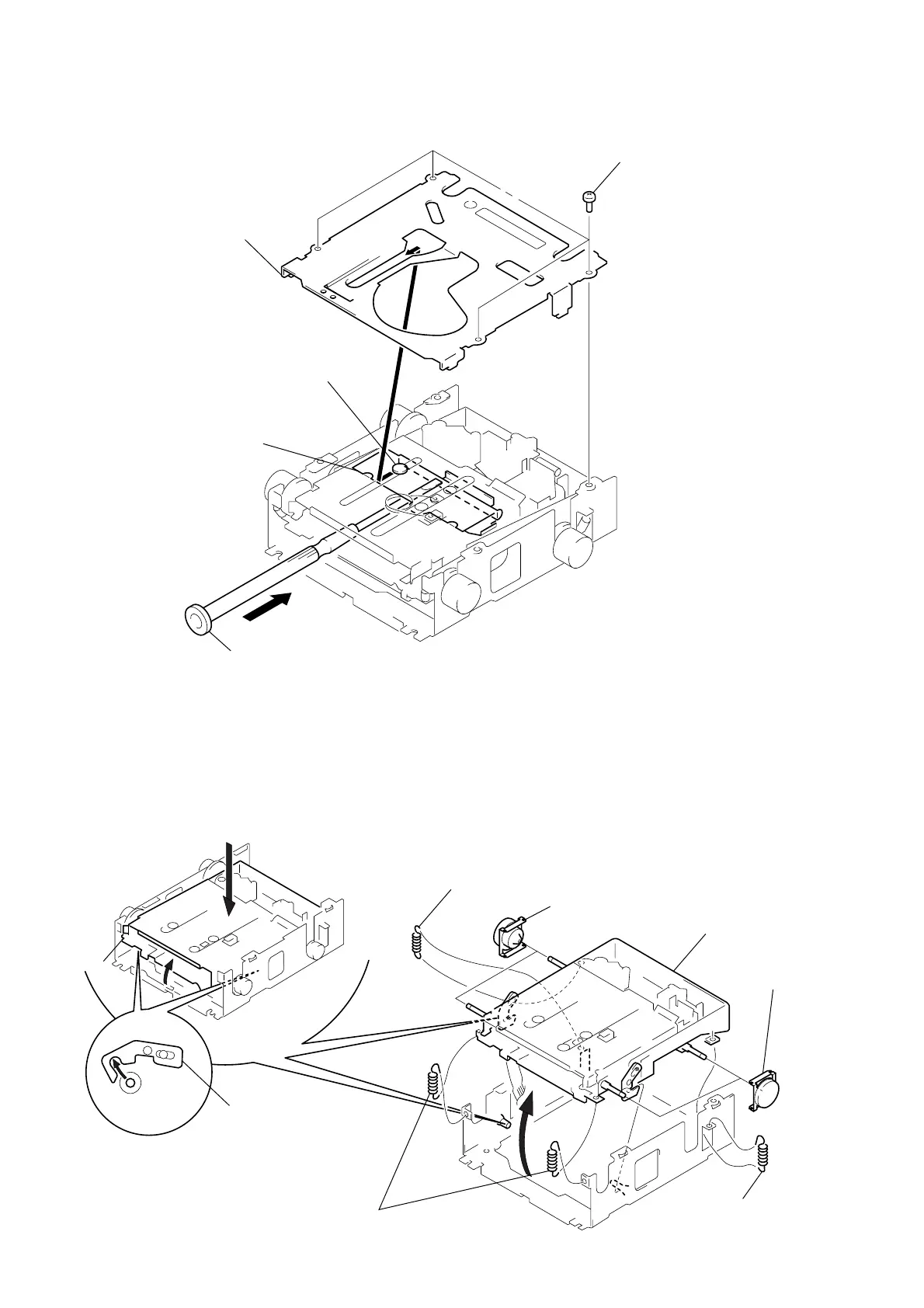

3-6. MD COVER ASSY
3-7. FLOAT BLOCK
3
MD cover assy
2
Pushing the cassette holder in the direction of the arrow
A
with a
screwdriver, etc., disengage the shaft (MD cover guide) from
the slot in the MD cover assy.
Note: Take care not to scratch the optiocal pick-up when pushing
the cassette holder with a screwdriver. etc.
shaft (MD cover guide)
cassette holder
A
1
four screws
(BVTT2
×
4
)
1
tension spring (FL2)
6
float block
1
tension spring (FL2)
2
two tension springs (float F)
3
Pushing an arrow
A
part, raise the float block
up ward at the front to release a lock.
A
4
float block
lever (lock R)
lever (lock L)
5
two dampers assy
5
two dampers ass
y
