MDX-F5800
16

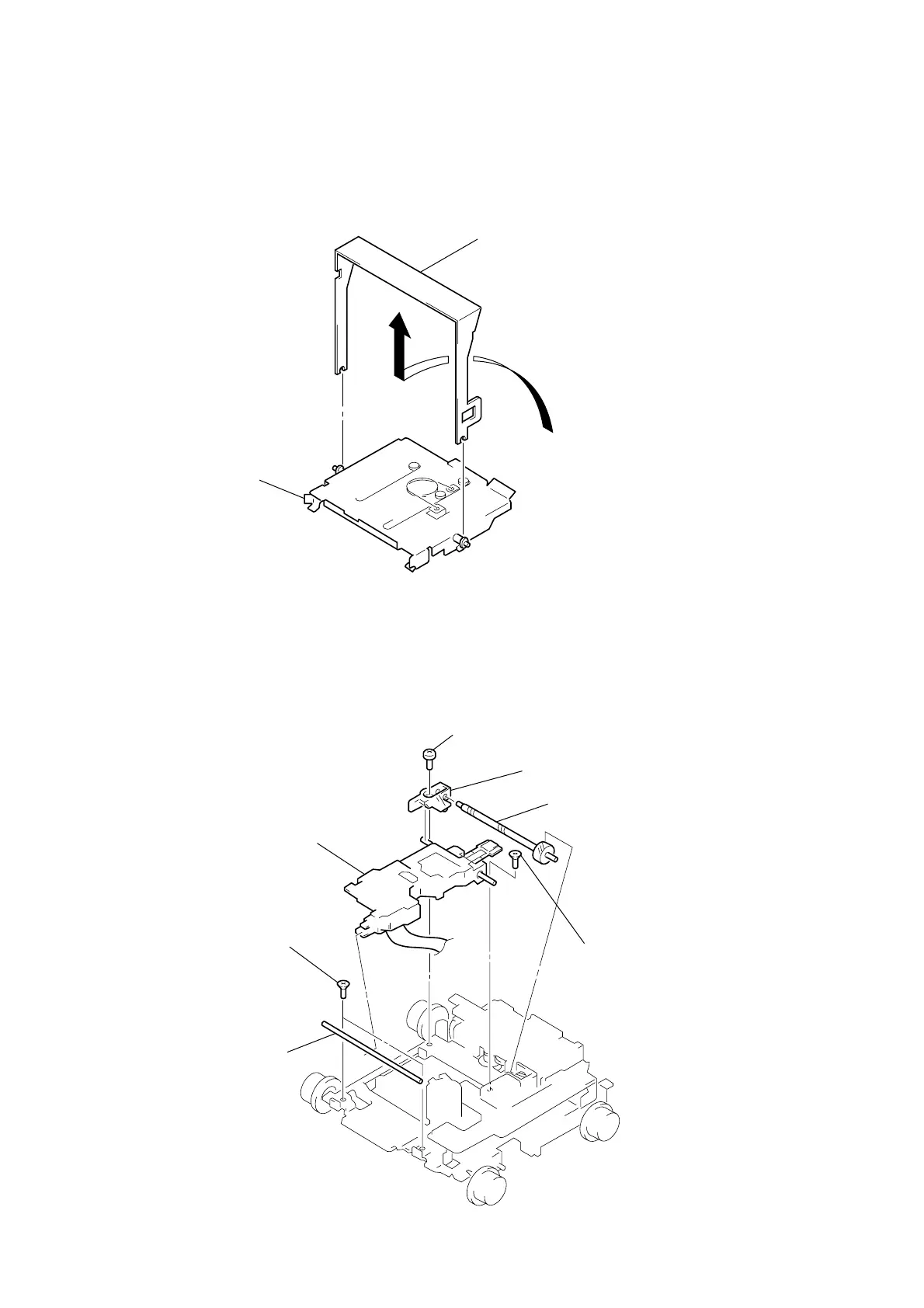

3-10.
CHUCKING ARM ASSY
1
Remove the chucking arm ass
y
in the direction of the arrow.
holder assy
3-11.
OPTICAL PICK-UP (KMS-242E)
6
bearing (SL)
5
feed screw assy
3
screw
(K2
×
3)
2
shaft (SL2)
1
two screws
(K2
×
3)
7
optical pick-up
(KMS-242E)
4
screw
(B2
×
3)
15
17
Table of Contents
Table of Contents
2
Servicing Notes
3
General
4
Location of Controls
4
Disassembly
11
Disassembly Flow
11
Sub Panel Assy
12
Mechanism Deck (MG-165A-138)
12
MAIN Board
13
SERVO Board
13
MD Cover Assy
14
Float Block
14
Lever (LE23) Assy
15
Holder Assy
15
Chucking Arm Assy
16
Optical Pick-Up (KMS-242E)
16
Motor Assy (Sled) (M902), SP Motor Assy (Spindle) (M901)
17
Electrical Adjustments
17
Test Mode
17
MD Section
17
Tuner Section
17
Diagrams
18
Block Diagram - SERVO Section
18
Block Diagram - MAIN Section
19
Block Diagram - PANEL/BUS CONTROL/ POWER SUPPLY Section
20
Note for Printed Wiring Boards and Schematic Diagrams
21
Schematic Diagram - SERVO Section (1/2)
22
Schematic Diagram - SERVO Section (2/2)
23
Printed Wiring Boards - SERVO Section
24
Printed Wiring Boards - MAIN Section
25
Schematic Diagram - MAIN Section (1/3)
27
Schematic Diagram - MAIN Section (2/3)
27
Schematic Diagram - MAIN Section (3/3)
28
Printed Wiring Board - SUB Board
29
Schematic Diagram - SUB Board
29
Printed Wiring Board - KEY Board
30
Schematic Diagram - KEY Board
31
Exploded Views
45
Chassis Section
45
Front Panel Section
46
Mechanism Deck Section-1 (MG-165A-138)
47
Mechanism Deck Section-2 (MG-165A-138)
48
Mechanism Deck Section-3 (MG-165A-138)
49
Electrical Parts List
50
