MDX-F5800

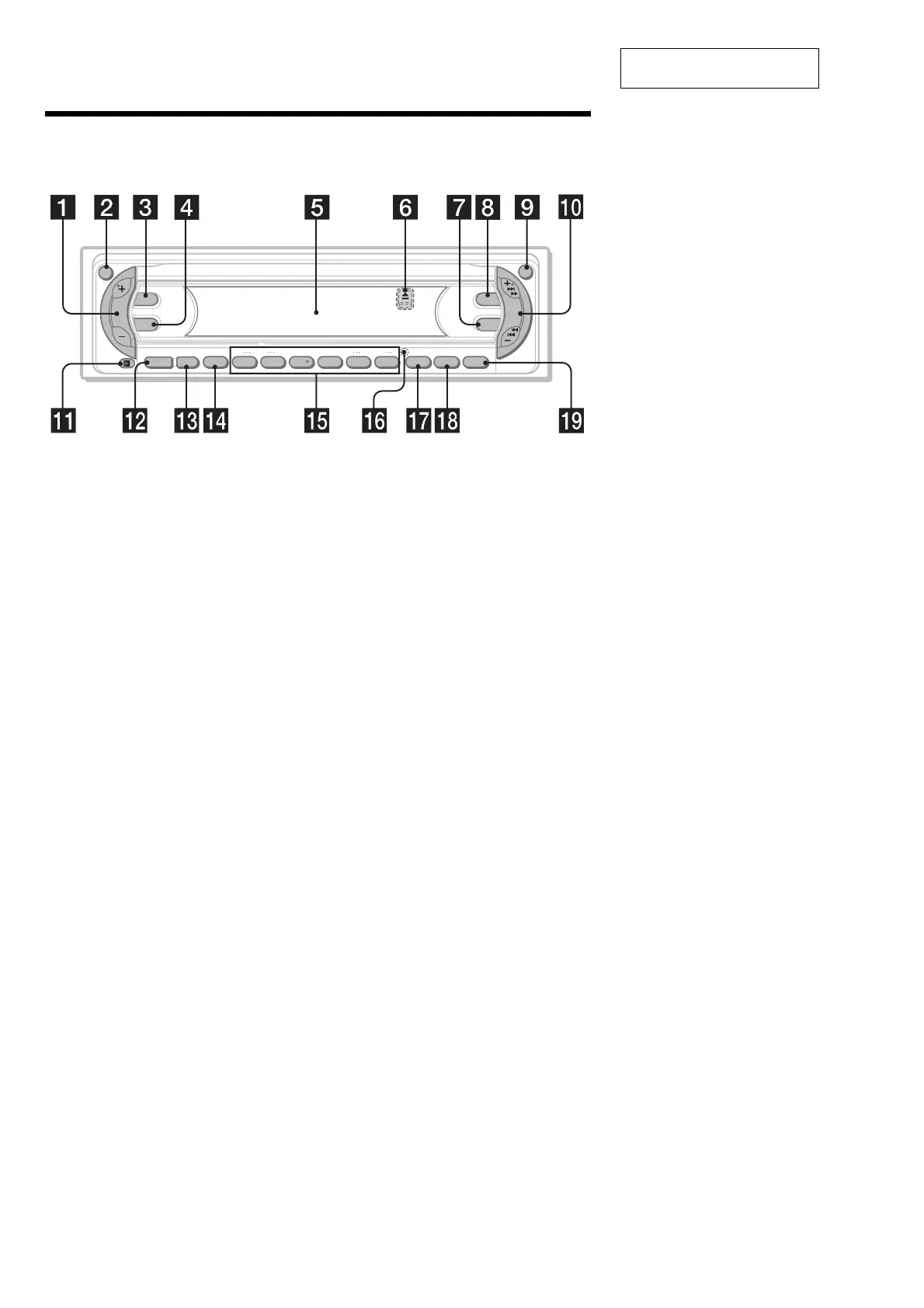

Location of controls
Refer to the pages listed for details.
a Volume +/– button
b ATT (attenuate) button
c DSPL (display mode change) button
d SEL (select) button
To select items.
e Display window
f Z (eject) button (located on the front side
of the unit, behind the front panel)
g EQ3 button
h DSO button
i OPEN button
j SEEK +/– button
Radio:
To tune in stations automatically/find a
station manually.
MD/CD (MP3 files*
1
):
To skip tracks/fast-forward, reverse a track.
k Receptor for the card remote
commander
l SOURCE (Power on/Radio/MD/CD*
2
)
button
To select the source.
m MODE button
To change operation.
n OFF (Stop/Power off) button*
3
o Number buttons
Radio:
To store the desired station on each number
button.
MD/CD (MP3 files*
1
):
(1): DISC –
(2): DISC +
(3): REP
11
(4): SHUF
12
(5): GP*
4
/ALBM*
1
–
(6): GP*
4
/ALBM*
1
+
p RESET button (located on the front side of
the unit, behind the front panel)
q B
AF/TA button (AEP, UK models)
TM button (US model)
r S
SENS/BTM button (AEP, UK models)
ENS button (US model)
s LIS
PTY (programme type)/LIST button
(AEP, UK models)
T/CAT*
5
button (US model)
*1
Available only when an optional CD unit with the
MP3 file control function is connected, and MP3 file
is played.
*2
When an optional CD unit is connected.
*3
Warning when installing in a car without
an ACC (accessory) position on the
ignition switch
After turning off the ignition, be sure to press
and hold
(OFF)
on the unit until the display
disappears.
Otherwise, the display does not turn off and this
causes battery drain.
*4
Available only when an MD containing groups is
inserted in this unit and played.
*5
The CAT button is available only when the XM
tuner is connected.
DSPL
SEL
DSO
EQ3
AT T
OPEN
SEEK
SOURCE MODE
OFF
1 2 3 4 5 6
BTM SENS LIST
–+
DISC REP SHUF BTM LIST
–+
GP/ALBM
CAT
