MDX-F5800
15

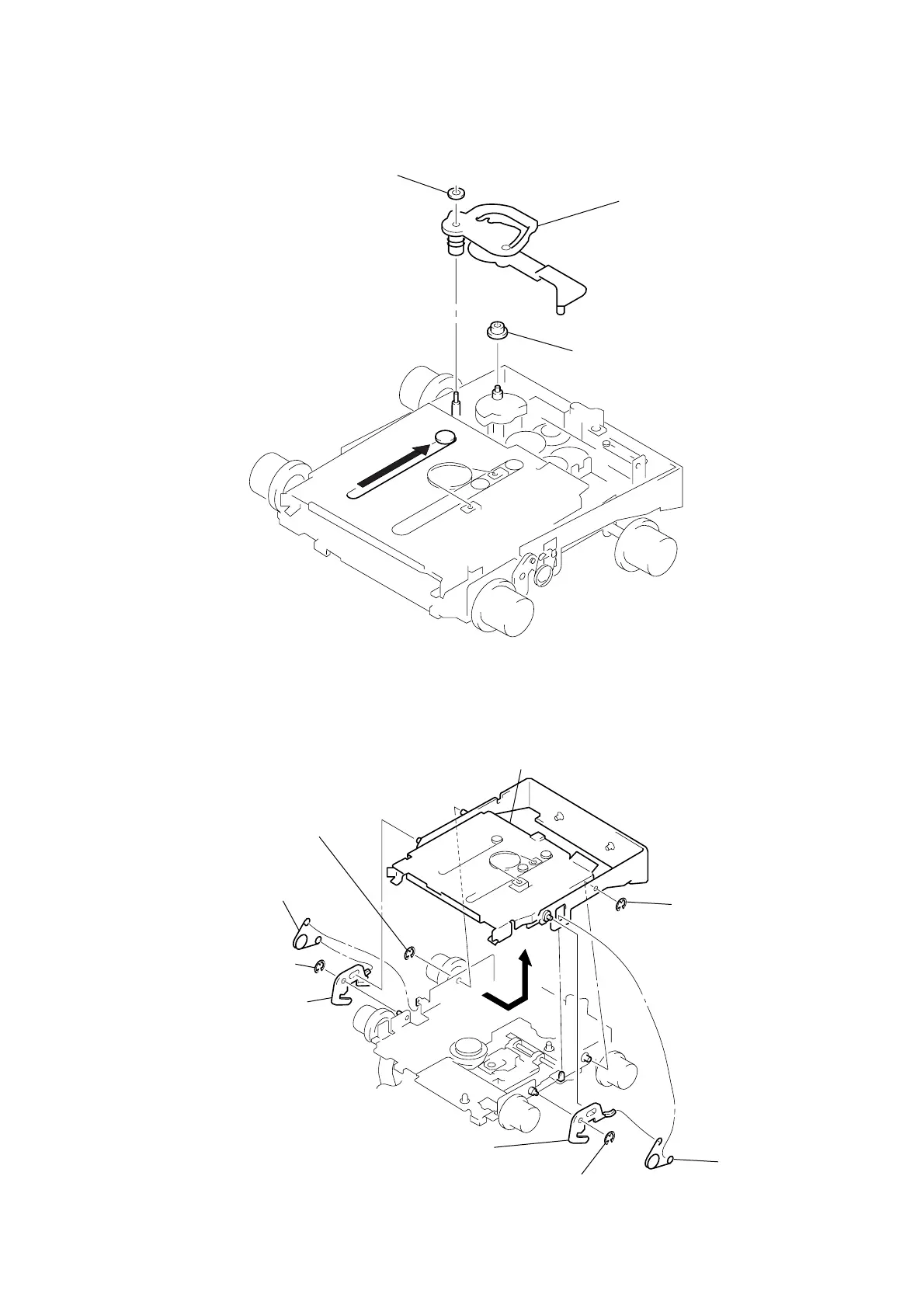

3-8.
LEVER (LE23) ASSY
2
stopper washer
3
lever (LE23) ass
y
4
roller (GLE)
1
3-9.
HOLDER ASSY
2
type-E stop ring 1.5
2
type-E stop ring 1.5
3
lever (lock L)
2
type-E stop ring 1.5
2
type-E stop ring 1.5
4
Remove the holder assy in the
direction of the arrow.
1
spring (CHKG)
1
spring (CHKG)
3
lever (lock R)
14
