MDX-F5800
1717
SECTION 4
ELECTRICAL ADJUSTMENTS
TEST MODE
This set have the test mode function.
<Set the Test Mode>
1. Turn ON the regulated power supply. (The clock is displayed)
Note: Press the [OFF] button, if the clock is not displayed.
2. Push the preset [4] button.
3. Push the preset [5] button.
4. Press the preset [1] button for more than two seconds.
5. Then the display indicates all lights, the test mode is set.
<Release the Test mode>
1. Push the [OFF] button.
MD SECTION
MD section adjustments are done automatically in this set.
TUNER SECTION
Tuner section adjustments are done automatically in this set.

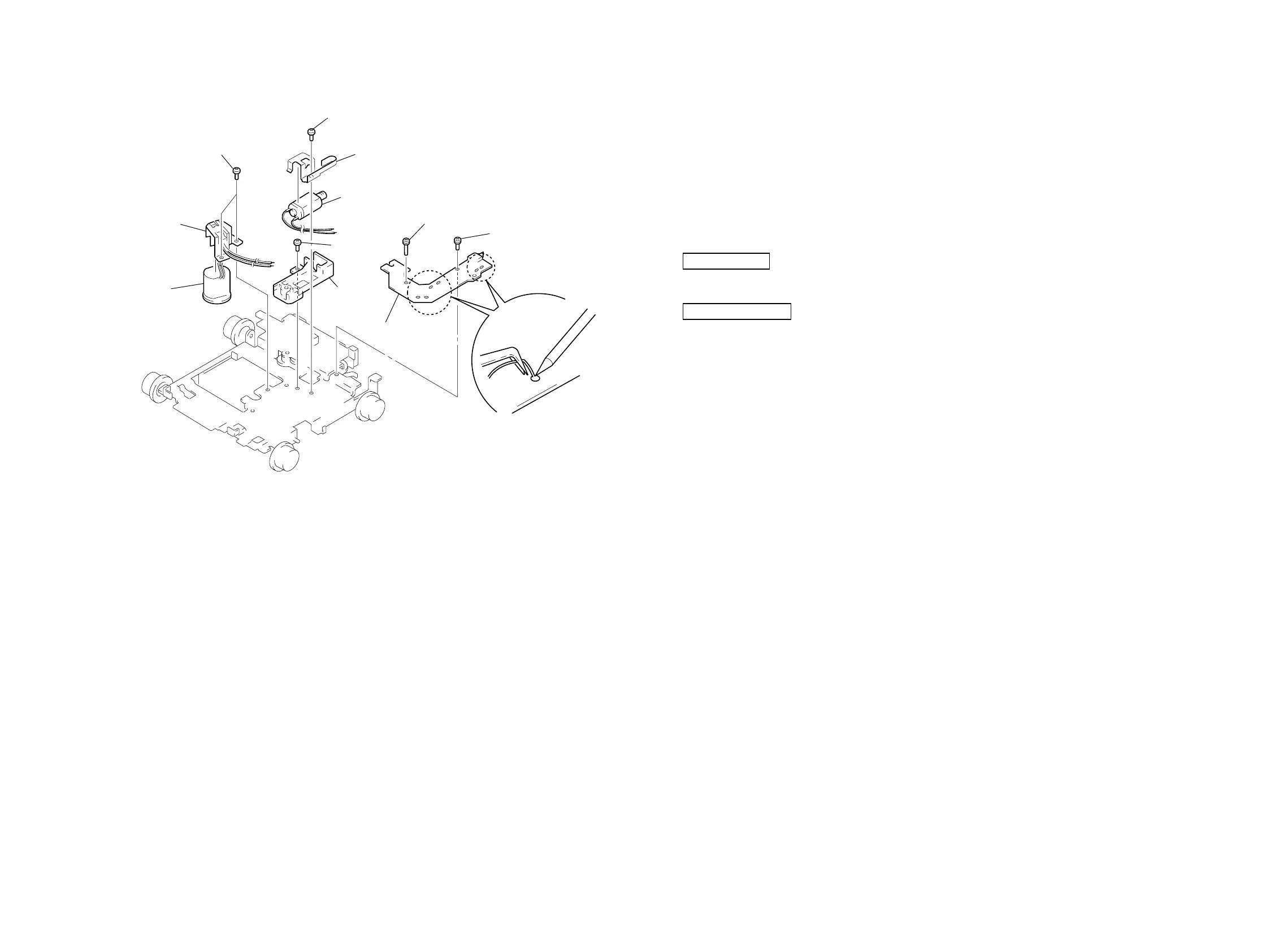

3-12. SL MOTOR ASSY (SLED) (M902), SP MOTOR ASSY (SPINDLE) (M901)
5
screw
(P1.7
×
1.8)
6
bracket (SL)
0
two screws
(P1.7
×
1.8)
qa
retainer (SP)
qs
SP motor assy
(spindle) (M901)
8
screw
(B2
×
3)
2
screw (PS2
×
4)
3
screw (PS2
×
8)
4
sensor board
1
Remove solders of motors
(M901, M902, M903).
9
base (SL)
7
SL motor assy
(sled) (M902)
To Next Page
