MDX-F5800

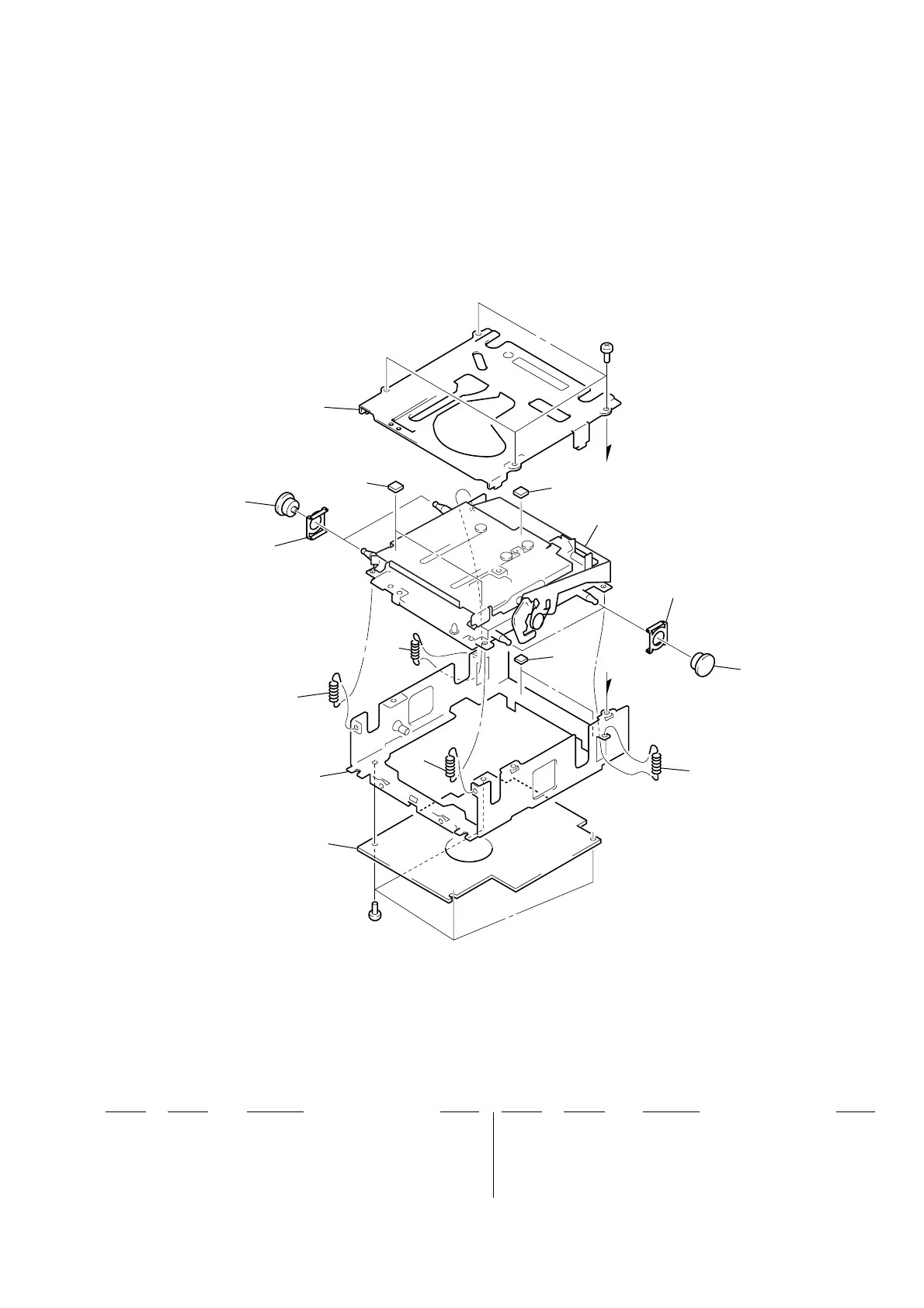

6-3. MECHANISM DECK SECTION-1
(MG-165A-138)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-3274-602-A SERVO BOARD, COMPLETE
* 102 X-3379-367-4 CHASSIS ASSY, MD
103 3-032-714-02 SPRING (FLOAT F), TENSION
104 3-921-111-01 SPRING (FL2), TENSION
105 3-931-897-71 DAMPER (T)
* 106 3-220-096-03 BRACKET (DAMPER)
* 107 3-034-301-02 CUSHION (EJ2)
* 108 3-034-302-02 CUSHION (EJ3)
* 109 X-3379-368-2 COVER ASSY, MD
#11 7-685-851-04 SCREW +BVTT 2 × 4 (S)
#11
#11
mechanism deck section-2
101
108
105
106
106
104
103
102
109
103
105
104
107
108
