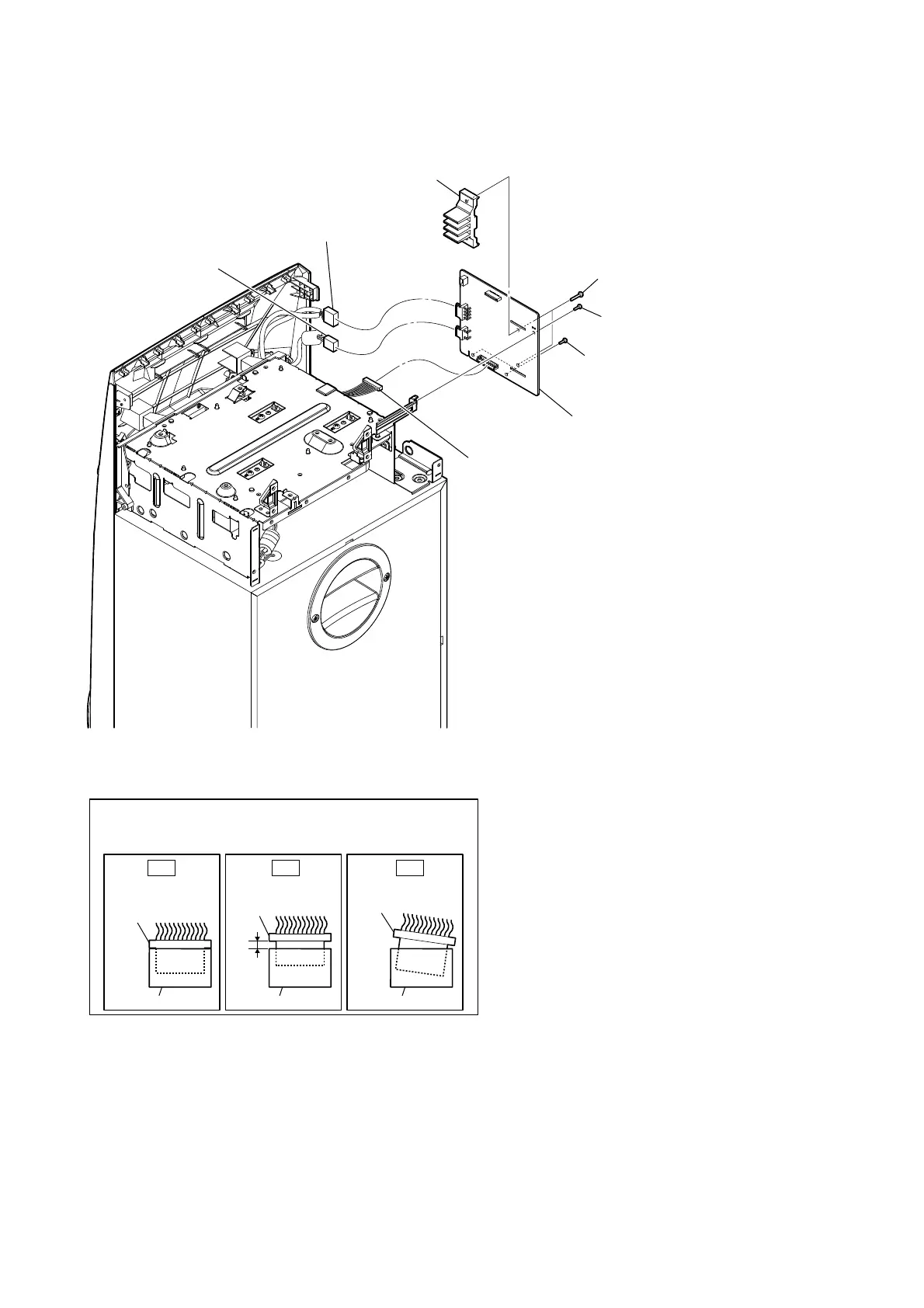

– Top rear view –
4 one screw
(+BVTP 3 u 8)
5 two screws
(+BVTP 3 u 10)
6 heat sink
7 DAMP board
1 CN1006 (4P)
3 CN1005 (8P)
2 CN1007 (3P)
4 two screws
(+BVTP 3 u 8)
Note: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
2-9. DAMP BOARD
