Sony MHC-V4D - Bluetooth;SMPS Board Removal; Bluetooth Module and SMPS Board Disassembly

MHC-V3/V4D
18

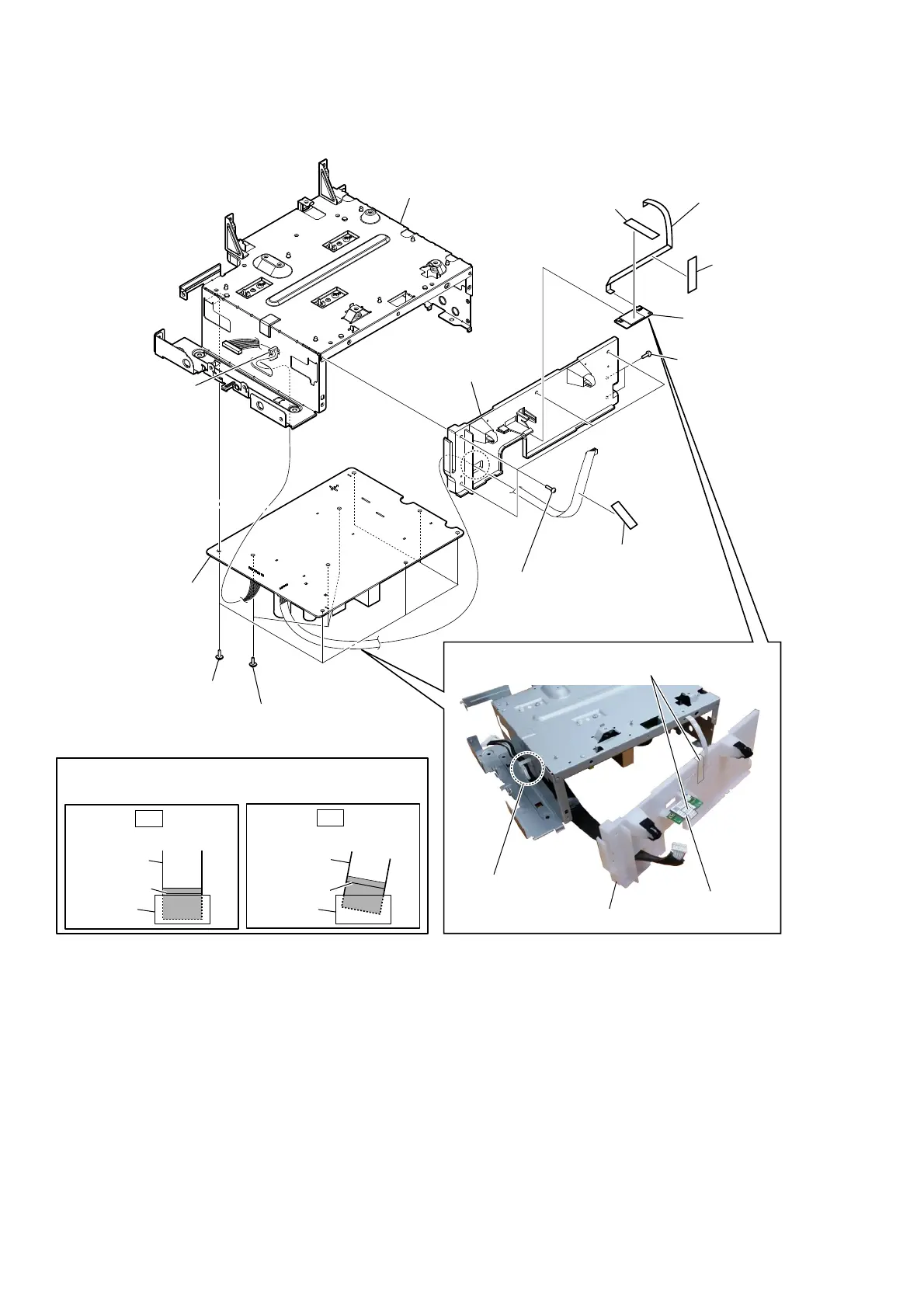

2-11. BLUETOOH MODULE, SMPS BOARD
1 filament tape
1 filament tape
2 wire (flat type)
(10 core)
3 bluetooth module
4 four screws
(+BVTP 3 u 8)
5 filament tape
4 two screws
(+BVTP 3 u 8)
6 bracket, chassis
7 Remove the wire
from holder, wire
8 three screws
(+PWH 3 u 8 (SUMITITE))
9 SMPS board
0 chassis, block
8 six screws
(+PWH 3 u 8 (SUMITITE))
:LUHVHWWLQJ
bluetooth module
bracket, chassis
holder, wire
filament tape
Note : When installing the wire (flat type), ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type)
wire (flat type)
connectorconnector
OK
NG
Ver. 1.1
