Sony MHC-V4D - Mid-Range Speaker Removal; 8 cm Mid-Range Speaker Removal

MHC-V3/V4D
22
2 four screws
((3.5 u 14), tapping)
1 Remove the
speaker cable.
1 Remove the
speaker cable.
5 loudspeaker (8cm)
(mid: L-ch) (SP1)
9 loudspeaker (8cm)
(mid: R-ch) (SP3)
8 terminal
(wide side)
4 terminal
(wide side)
8 terminal
(narrow side)
4 terminal
(narrow side)
rib
hook
3 Remove the loudspeaker
(8cm) (SP1) in the
direction of the arrow.
7 Remove the loudspeaker (8cm) (SP3)
in the direction of the arrow.
6 four screws
((3.5 u 14), tapping)
:LUHVHWWLQJ
+RZWRLQVWDOOWKHORXGVSHDNHUFP
 6363
terminal position
loudspeaker
(8cm) (SP1)
loudspeaker
(8cm) (SP3)

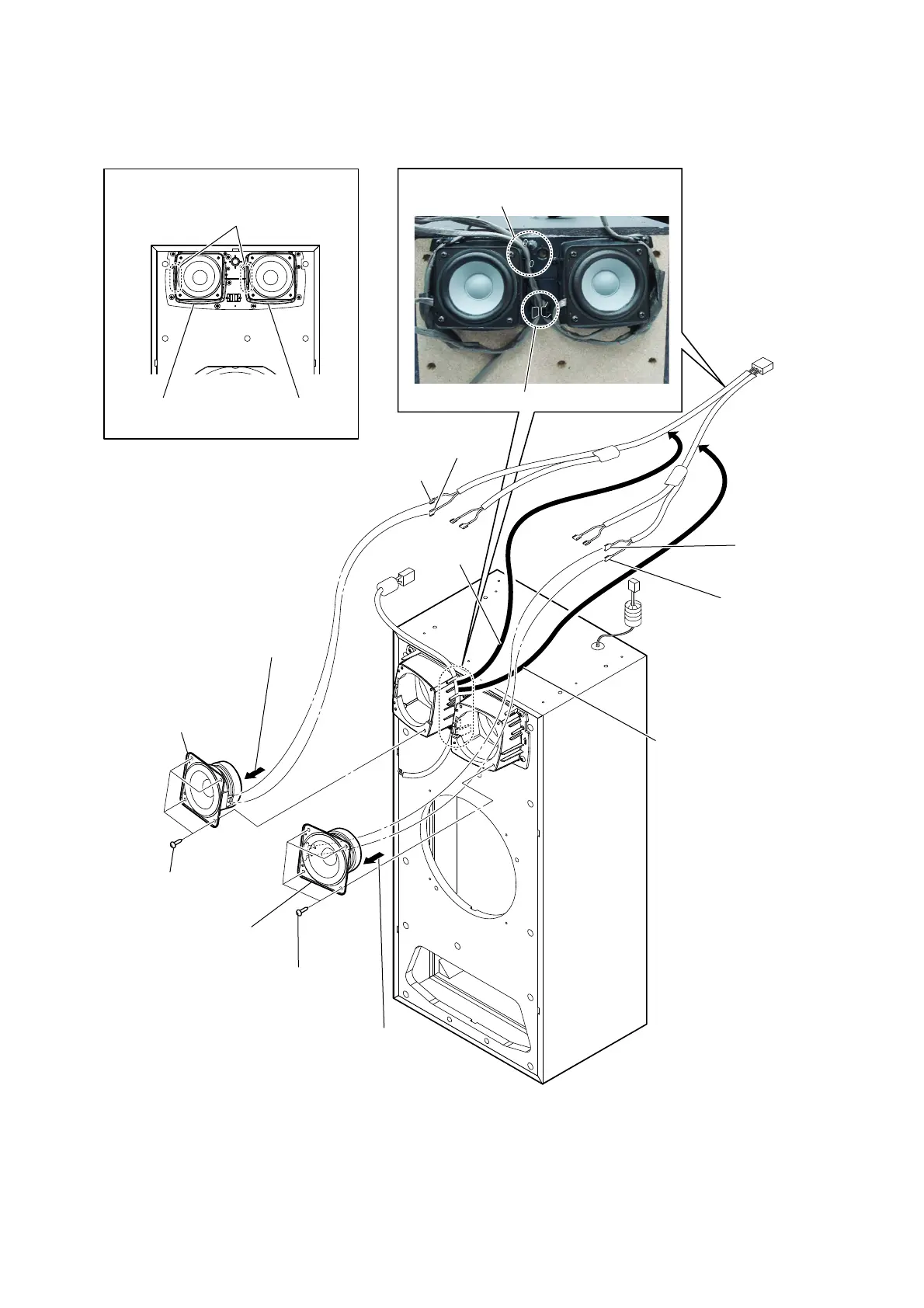

2-15. LOUDSPEAKER (8cm) (MID: L-CH) (SP1), LOUDSPEAKER (8cm) (MID: R-CH) (SP3)
Ver. 1.1
