Sony MHC-V4D - Volume Knob Block Removal; Volume Knob Block Disassembly

MHC-V3/V4D
24

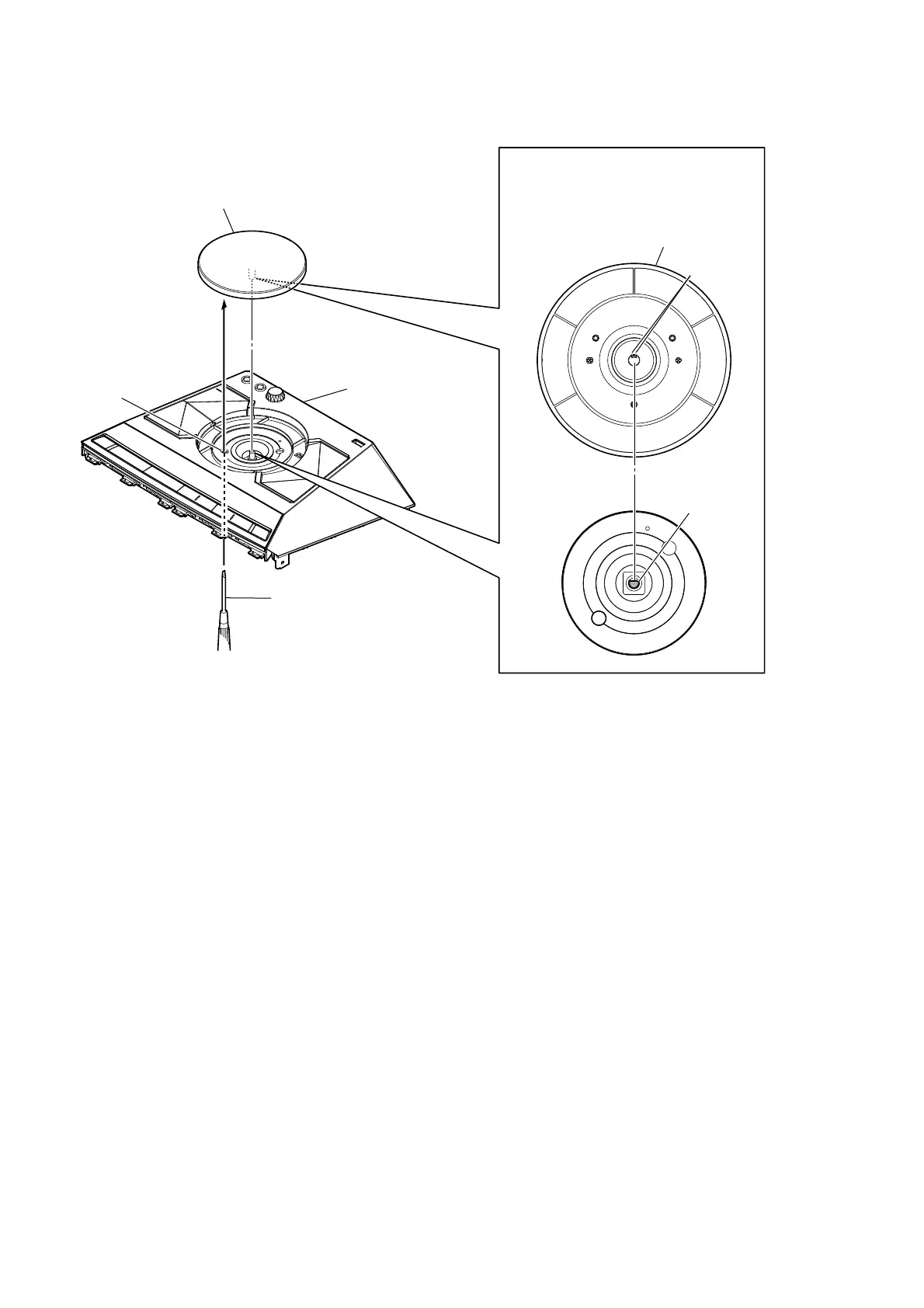

2-17. VOLUME KNOB BLOCK
hole
1 Push the knob, volume block
by flat-head screwdriver.
2 knob, volume block
panel, top block
– Bottom view –
– Top view –
How to install the knob, volume block
Note: When installing the knob, volume block,
align the two ribs of knob, volume and
the shaft.
knob, volume block
rib
shaft
Ver. 1.1
