Sony MHC-V4D - Chassis Block Removal; Chassis Block Disassembly

MHC-V3/V4D
17
2 three screws
((4 u 13) (TR-184A))
– Top rear view –
4 chassis block
1 CN901 (2P)
3 clamp
2 three screws
((4 u 13) (TR-184A))
Note: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG

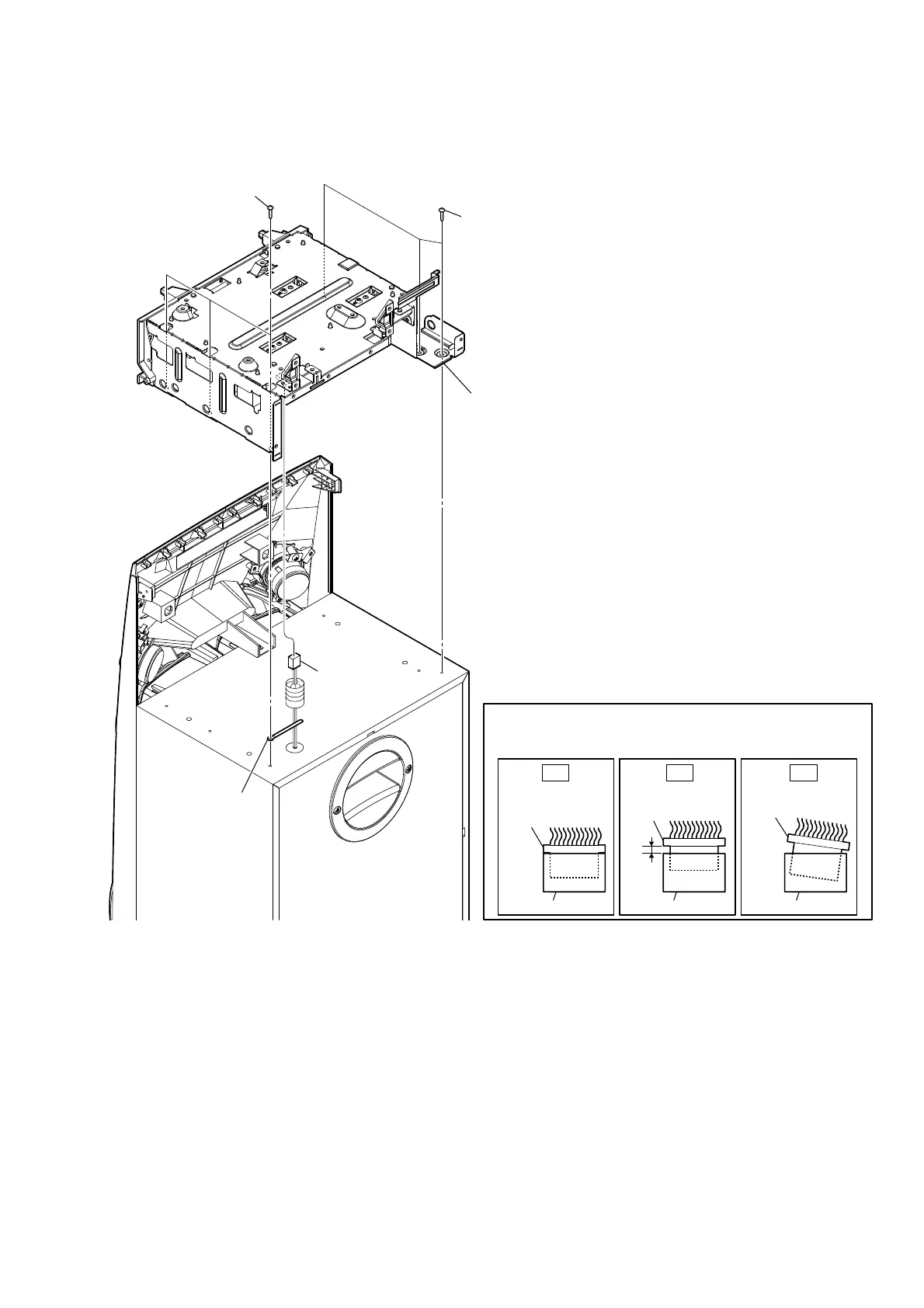

2-10. CHASSIS BLOCK
Ver. 1.1
