MHC-V3/V4D
MHC-V3/V4D
4343
Note on Schematic Diagram:
• All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in and
1
/4 W or less unless otherwise
specifi ed.
•
2
: nonfl ammable resistor.
• C : panel designation.
• Note for Printed Wiring Boards and Schematic Diagrams
• A : B+ Line.
• B : B– Line.
• H : Adjustment for repair.
• Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
f : TUNER (FM/AM)
L : USB
E : VIDEO
a : BLUETOOTH
J : CD PLAY
N : MIC
• Abbreviation
AR : Argentina model
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
SAF : South African model
TH : Thai model
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• : parts extracted from the conductor side.
•
: Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Note: The components identifi ed by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specifi ed.
• Abbreviation
AR : Argentina model
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
SAF : South African model
TH : Thai model
C
B
These are omitted.
E
Q
t Indication of transistor
D
G
These are omitted.
S
Q
B
These are omitted.
CE
Q
B
These are omitted.
CE
Q

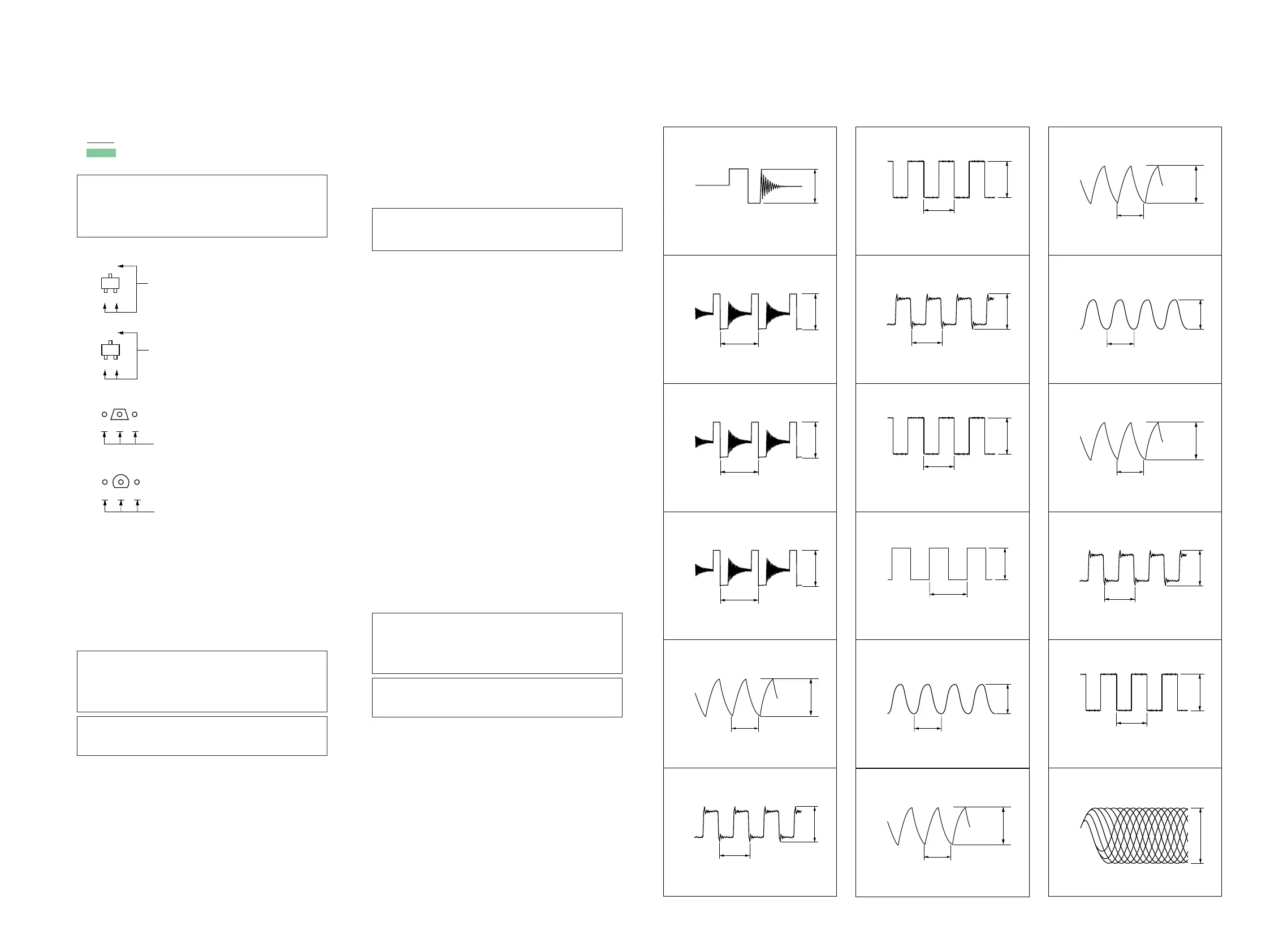

• Waveforms
– ARAGON Board –
1
IC001 2 (VBST1)
5 V/DIV, 500 ns/DIV
18.4 Vp-p
2
IC001 qg (VBST2)
5 V/DIV, 2 Ps/DIV
18.4 Vp-p
6.4 Ps
3
IC002 2 (VBST1)
5 V/DIV, 2 Ps/DIV
19.8 Vp-p
5.8 Ps
4
IC002 qg (VBST2)
5 V/DIV, 2 Ps/DIV
18.4 Vp-p
5.8 Ps
2.7 Vp-p
81 ns
5
IC101 qf (AUDIO_CLK_OUT)
500 mV/DIV, 25 ns/DIV
354 ns
3.3 Vp-p
6
IC101 wf (SSI3_BCKO)
500 mV/DIV, 100 ns/DIV
3.4 Vp-p
20.8 Ps
7
IC101 wh (SSI3_LRCKO)
500 mV/DIV, 5 Ps/DIV
3.6 Vp-p
20.8 Ps
9
IC101 e; (SSI0_LRCKO)
1 V/DIV, 5 Ps/DIV
3.4 Vp-p
22.7 Ps
qj
IC301 <zzm (ALRCK)
500 mV/DIV, 5 Ps/DIV
324 ns
3.6 Vp-p
8
IC101 wl (SSI0_BCKO)
1 V/DIV, 100 ns/DIV
352 ns
3.6 Vp-p
qh
IC301 <zzc (ABCK)
1 V/DIV, 100 ns/DIV
3.52 V
23 Ps
q;
IC101 eg (LCD-CLK)
1 V/DIV, 100 Ps/DIV
qa
IC101 yk (RTC-X2)
50 mV/DIV, 10 Ps/DIV
30.4 Ps
140 mV
qf
IC301 8 (XTALO)
500 mV/DIV, 20 ns/DIV
37.2 ns
1.2 Vp-p
1.03 Vp-p
75 ns
qs
IC101 ua (XTAL)
200 mV/DIV, 25 ns/DIV
1.06 Vp-p
81.5 ns
qd
IC101 os (AUDIO-X2)
200 mV/DIV, 25 ns/DIV
2.7 Vp-p
59 ns
qg
IC301 <zzx (ACLK)
500 mV/DIV, 25 ns/DIV
qk
IC301 <zxc (RFIP)
200 mV/DIV, 100 ns/DIV
(CD play mode)
1 Vp-p
Note 1: When the DAMP board is replaced, spread the
compound referring to “NOTE OF REPLACING
THE IC1001 ON THE DAMP BOARD AND THE
COMPLETE DAMP BOARD” on servicing notes
(page 5).
Note 1: When the DAMP board is replaced, spread the
compound referring to “NOTE OF REPLACING
THE IC1001 ON THE DAMP BOARD AND THE
COMPLETE DAMP BOARD” on servicing notes
(page 5).
Note 2: When the DAMP board is replaced, spread the
bond referring to “BOND FIXATION OF ELECTRIC
PARTS” on servicing notes (page 6).
Note 2: When the DAMP board is replaced, spread the
bond referring to “BOND FIXATION OF ELECTRIC
PARTS” on servicing notes (page 6).
Ver. 1.5
