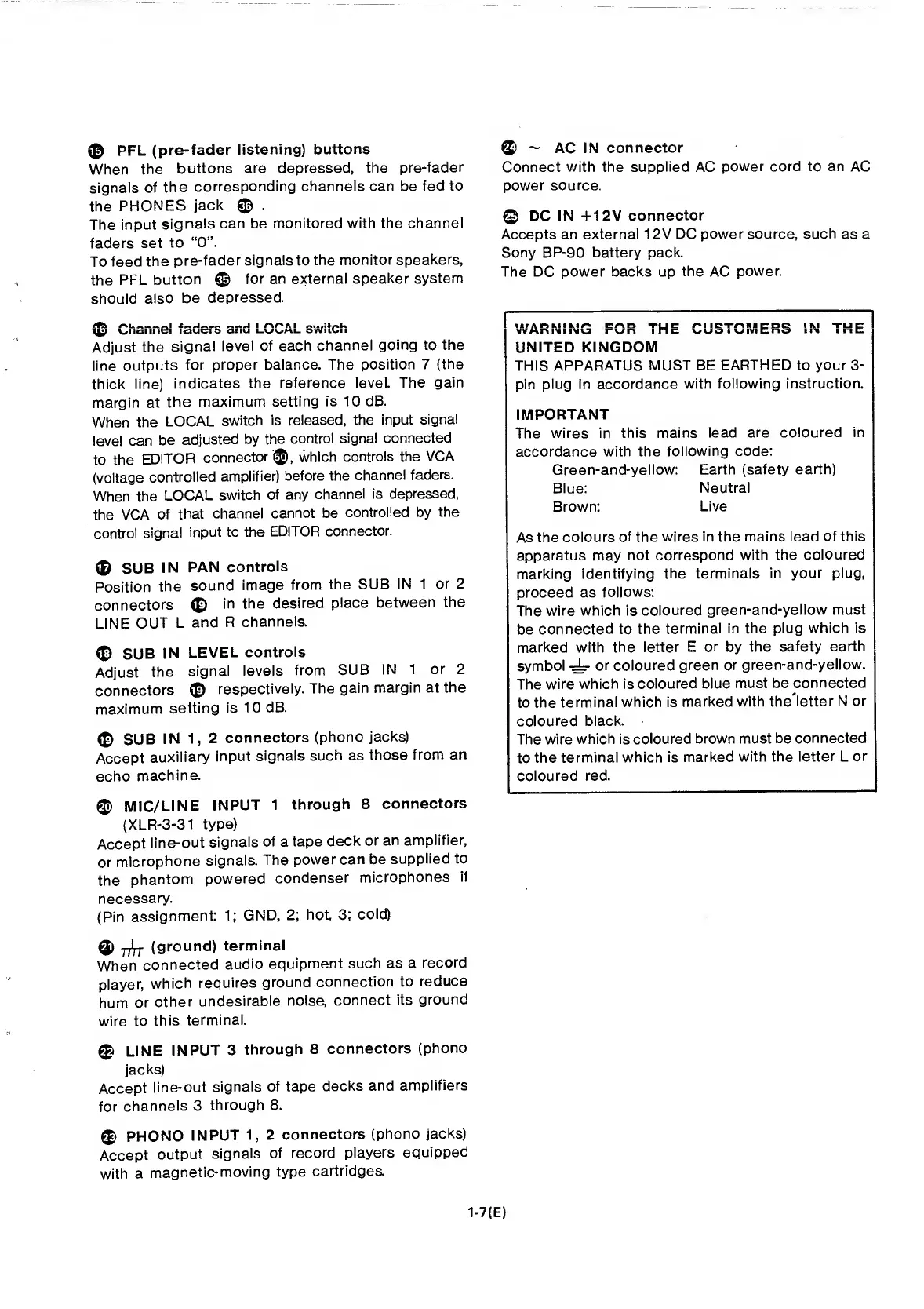

Sony mxp-29 - Page 26

©
PFL
(pre-
fader
listening) buttons
When
the
buttons
are
depressed, the
pre-fader
signals of
the
corresponding
channels
can
be
fed to
the
PHONES
jack
©
.
The
input
signals
can be
monitored
with
the
channel
faders set
to
“0”.
To
feed
the
pre- fader
signals
to
the
monitor speakers,
the
PFL
button
©
for an external
speaker system
should
also
be
depressed.
0
Channel
faders
and LOCAL
switch
Adjust
the
signal
level
of each
channel
going to the
line
outputs
for
proper balance. The
position
7
(the
thick
line)
indicates
the
reference level. The
gain
margin at
the
maximum
setting is 10 dB.
When the
LOCAL
switch is
released,
the input
signal
level
can
be
adjusted
by
the
control
signal
connected
to
the
EDITOR
connector
®,
which
controls the
VCA
(voltage
controlled
amplifier)
before
the
channel
faders.
When
the
LOCAL
switch
of any
channel is
depressed,
the
VCA
of
that
channel
cannot be
controlled by the
control
signal
input to
the
EDITOR
connector.
®
SUB
IN
PAN
controls
Position
the
sound
from the
SUB
IN 1
or 2
connectors
®
in
the
desired
place
between
the
LINE
OUT
L
and
R
channels.
©
SUB
IN
LEVEL
controls
Adjust
the
signal
levels
from
SUB
IN 1 or 2
connectors
©
respectively.
The
gain margin at
the
maximum
setting
is
10dB.
©
SUB
IN
1,
2
connectors
(phono jacks)
Accept
auxiliary
input
signals such as
those from
an
echo
machine.
©
MIC/LINE
INPUT
1
through 8
connectors
(XLR-3-31
type)
Accept
line-out
signals
of a
tape deck
or
an
amplifier,
or
microphone
signals.
The
power
can be
supplied
to
the
phantom
powered
condenser
microphones
if
necessary.
(Pin
assignment:
1;
GND,
2;
hot,
3;
cold)
©
tAt
(ground)
terminal
When
connected
audio
equipment
such
as a
record
player,
which
requires
ground
connection to
reduce
hum
or
other
undesirable
noise,
connect
its
ground
wire to
this
terminal.
®
LINE
INPUT 3
through
8
connectors
(phono
jacks)
Accept
line-out
signals of tape
decks and
amplifiers
for
channels 3
through 8.
©
PHONO
INPUT
1,
2
connectors
(phono
jacks)
Accept
output
signals
of
record
players
equipped
with a
magnetic-
moving type
cartridges.
©
~
AC IN
connector
Connect
with
the
supplied
AC
power cord to an
AC
power
source.
©
DC
IN +12V
connector
Accepts
an external 12V DC
power source, such
as a
Sony BP-90 battery pack.
The DC power backs up
the
AC
power.
WARNING FOR THE
CUSTOMERS
IN THE
UNITED
KINGDOM
THIS
APPARATUS MUST BE
EARTHED to your
3-
pin
plug in accordance
with following
instruction.
IMPORTANT
The
wires in
this mains lead
are coloured in
accordance with the
following code:
Green-and-yellow:
Earth (safety
earth)
Blue:
Neutral
Brown:
Live
As the
colours of the
wires in the
mains lead of
this
apparatus may
not correspond
with the
coloured
marking
identifying
the terminals
in your plug,
proceed
as
follows:
The
wire
which is coloured
green-and-yellow must
be
connected
to the
terminal in the
plug which
is
marked with
the letter
E
or
by
the safety
earth
symbol
or coloured
green or
green-and-yellow.
The
wire
which
is
coloured blue
must be connected
to
the
terminal
which is
marked with the'letter N
or
coloured
black.
The
wire
which is coloured
brown must be
connected
to
the
terminal which is
marked with the
letter L or
coloured
red.
1-7(E)
