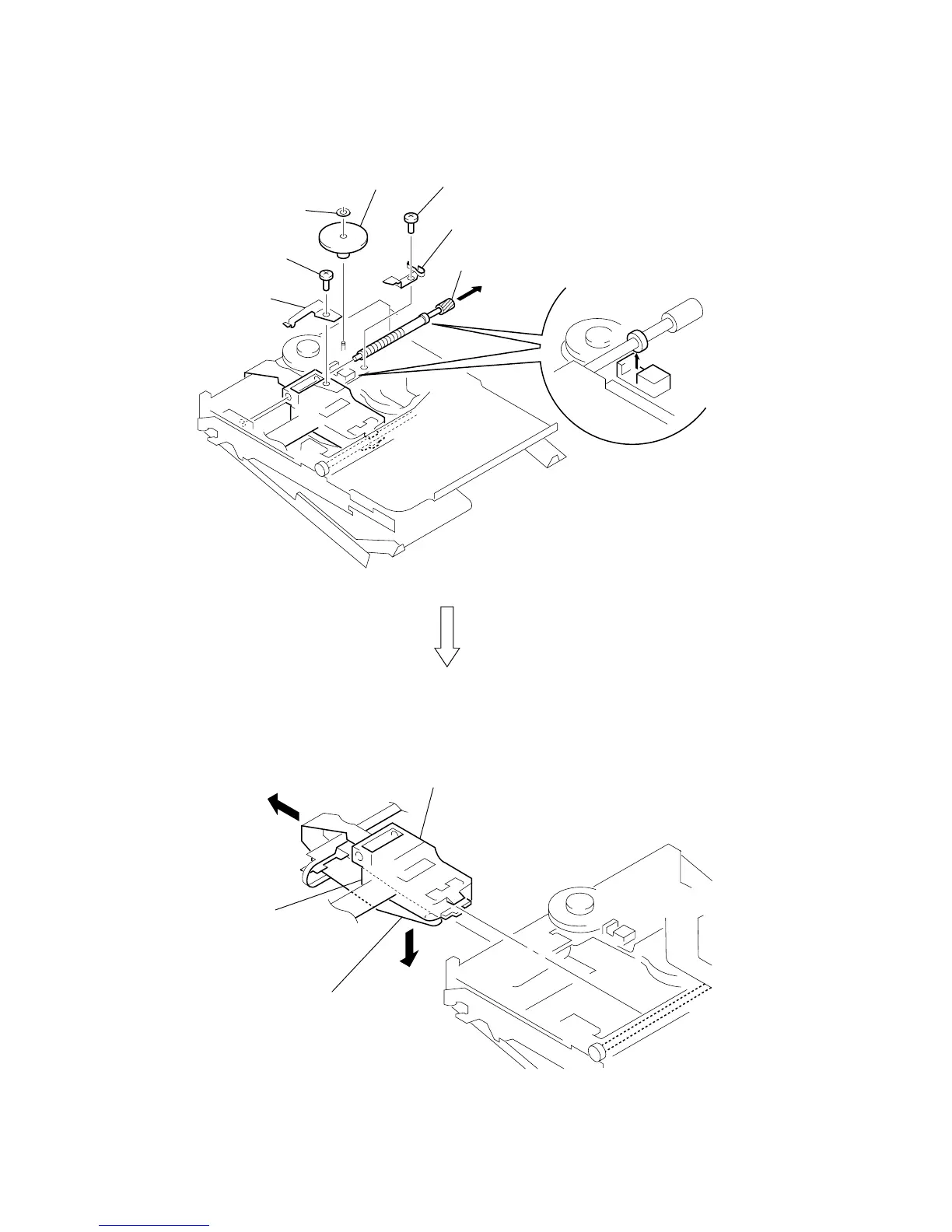

3-8. OP SERVICE ASSY (LCX-5R)
4 rack spring
3 screw (M1.4)
1 washer (0.8-2.5)
2 gear (SA)
5 screw (M1.4)
6 thrust detent spring
8 Pull off lead screw.
7
over write head section
OP service assy (LCX-5R)
9 Opening the over write head
toward the direction
A , remove the OP service assy
(LCX-5R) toward the direction
B .
A
B
Note: Do not open the entire assy forcibly,
when opening the over write head.
