59
MZ-N707

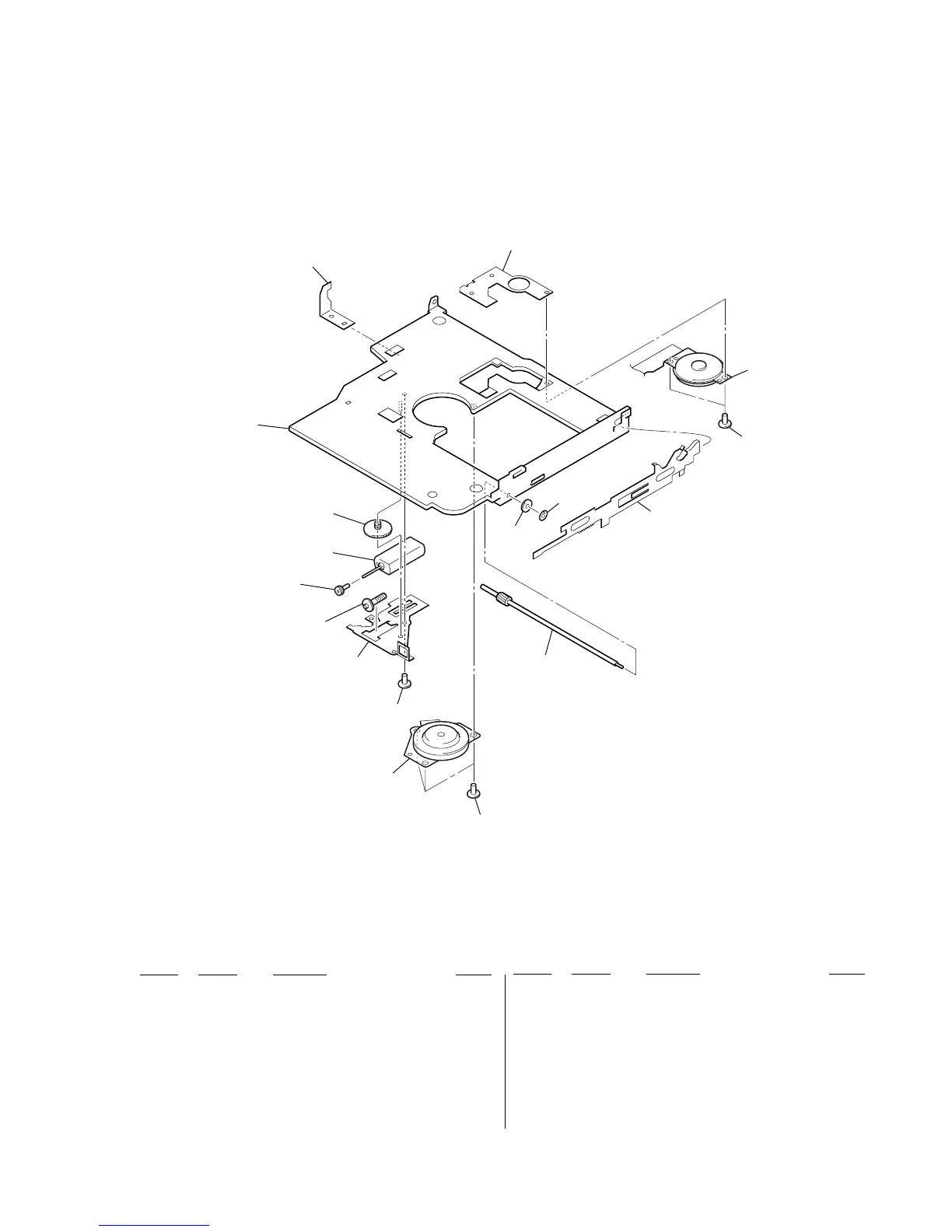

7-5. MECHANISM DECK SECTION-2
(MT-MZN707-177)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 3-225-278-11 SCREW, TAPPING
352 3-235-838-01 COVER, MOTOR
353 3-235-836-01 GEAR (HB)
354 3-222-544-01 GEAR (HA)
355 3-235-835-01 GEAR (HC)
356 3-235-834-01 CHASSIS
357 3-235-830-01 PLATE, RATCHET
358 X-3379-529-4 BASE ASSY, MOTOR
359 3-225-996-07 SCREW (M1.4) (EG), PRECISION PAN
360 3-235-839-01 LEVER (RACK)
361 3-338-645-31 WASHER (0.8-2.5)
362 4-222-222-01 GEAR (RACK)
363 A-3174-089-A SHAFT BLOCK ASSY, SUB
M601 8-835-744-01 MOTOR, DC SSM18B (SPINDLE)
(WITH TURN TABLE)
M602 1-763-727-11 MOTOR, DC (SLED) (WITH GEAR)
M603 1-763-400-21 MOTOR, DC (OVER WRITE HEAD UP/DOWN)
M601
M603
351
351
363
362
361
360
359
352
353
354
355
356
357
358
M60
2
