8
MZ-N707

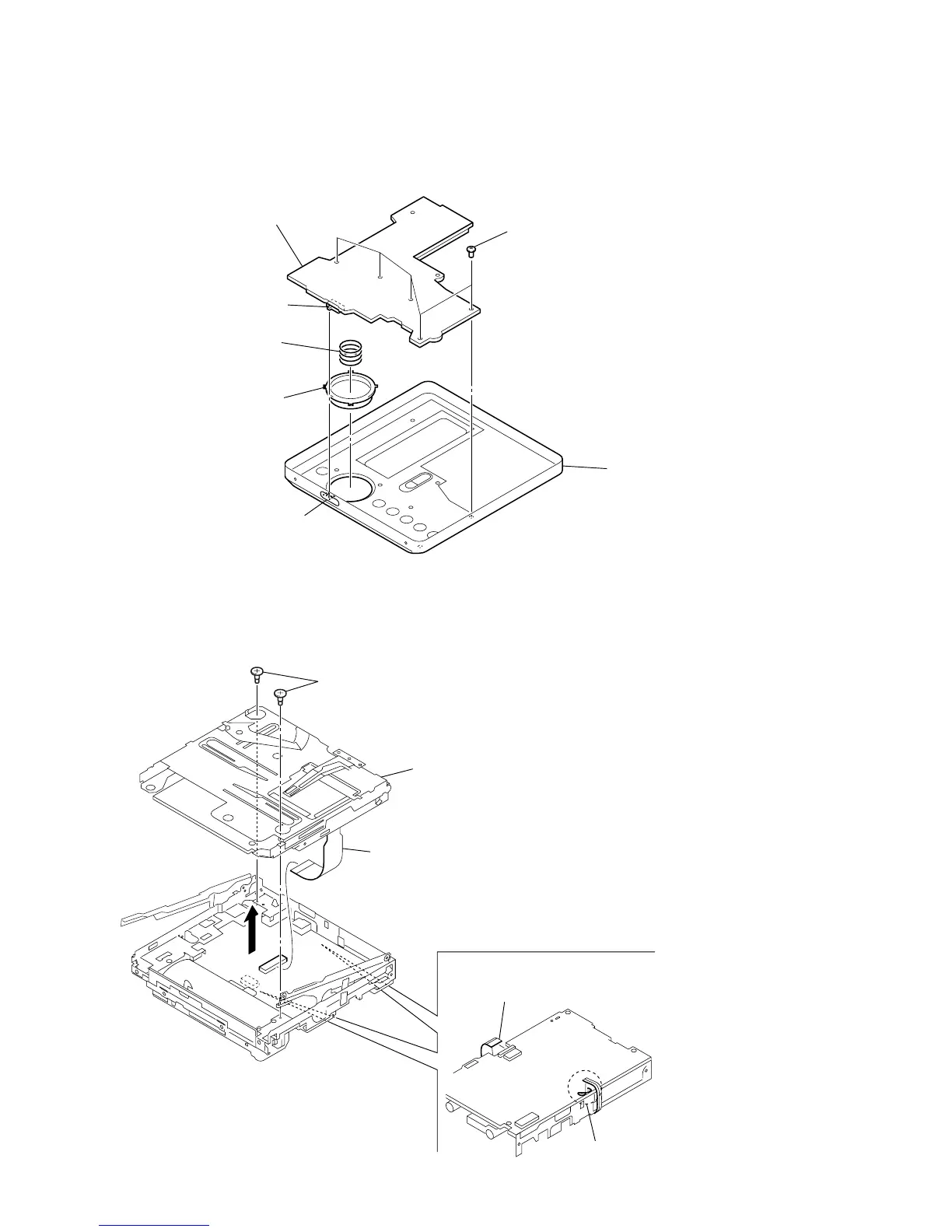

3-4. LCD MODULE, UPPER PANEL SUB ASSY
3-5. MECHANISM DECK (MT-MZN707-177)
1 five screws
(1.7 × 2.5)
2 LCD module
3 compression spring
(button)
Note: On installation, adjust the position of
both switch and knob (hold).
4 button (control A)
knob (hold)
switch
5 upper panel sub ass
y
3 two step screws (MD)
6 mechanism deck
(MT-MZN707-177)
5 flexible board (optical pick-up)
(CN501)
4
2 flexible board (motor)
(CN502)
1 Remove two solders of the
flexible board (over write head).
