9
MZ-N707

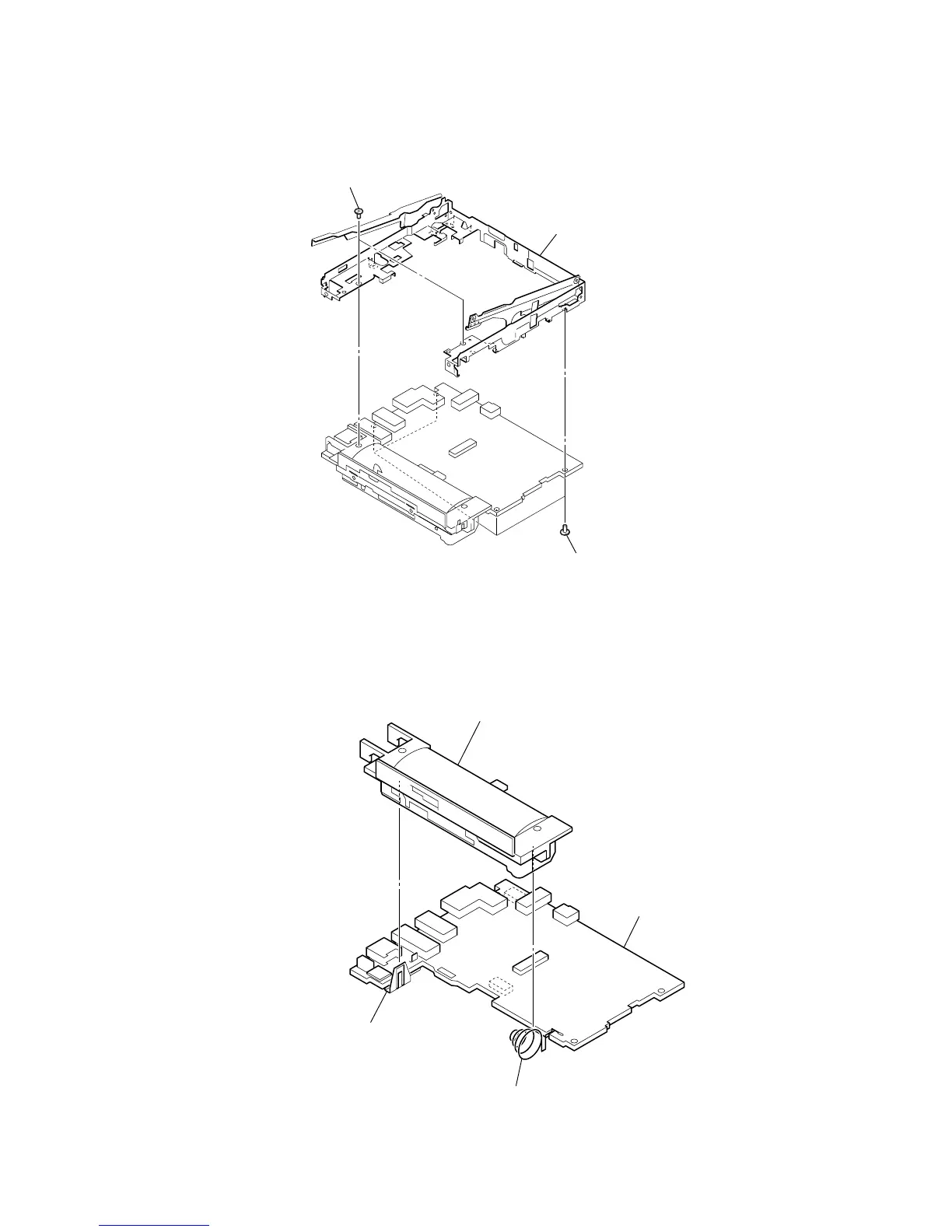

3-6. SET CHASSIS (5192) ASSY
3-7. MAIN BOARD
2
two screws
(1.7
×
2.5)
3
set chassis (5192) assy
1
four screws
(M1.4
×
2)
4
battery case
5
main board
3
battery terminal (–)
2
battery terminal board (+)
