Sony MZ-N707 OpenMG Jukebox NOTES on installing & operating Service Manual

58
MZ-N707

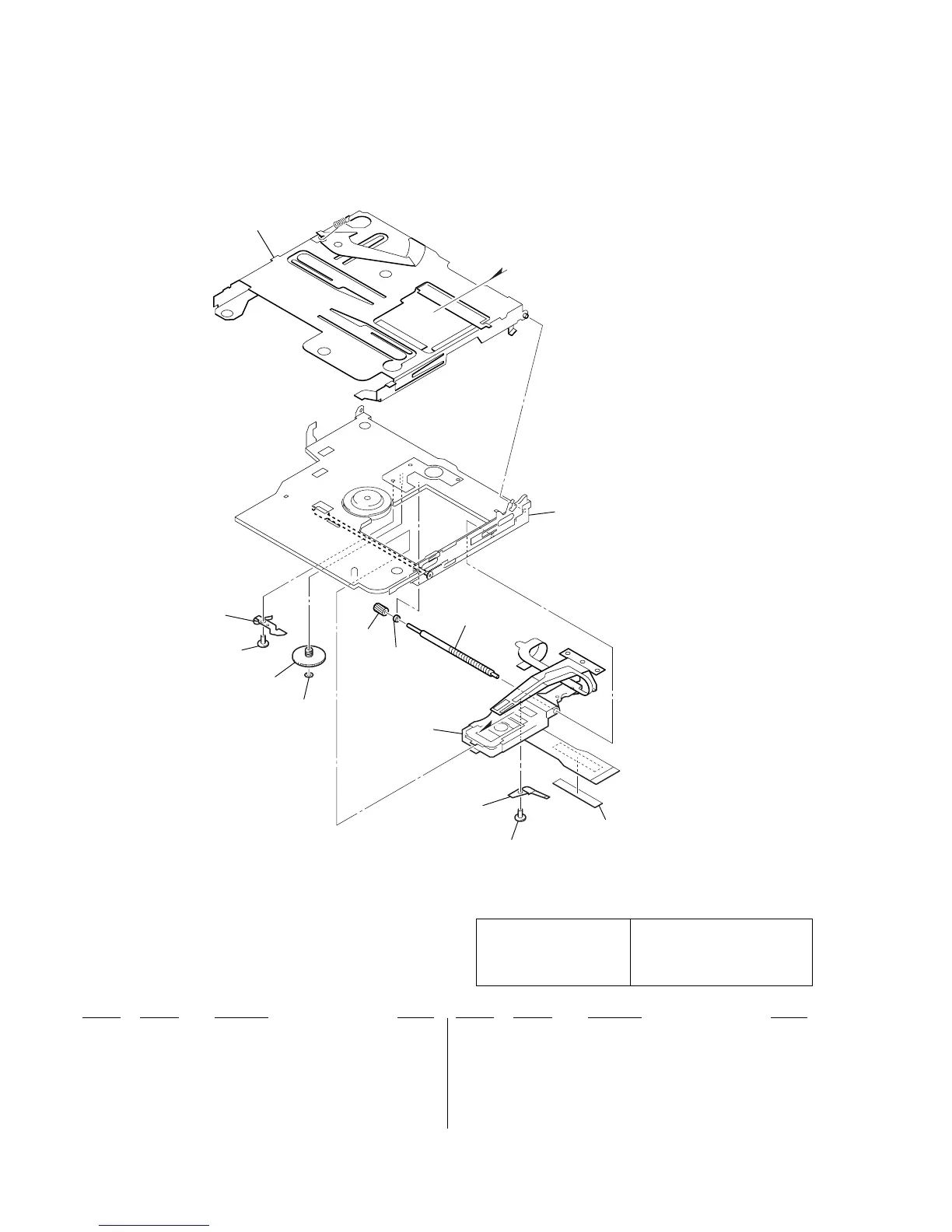

7-4. MECHANISM DECK SECTION-1
(MT-MZN707-177)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 X-3381-219-1 HOLDER ASSY
302 3-224-779-02 SPRING, THRUST DETENT
303 3-225-996-01 SCREW (M1.4) (EG), PRECISION PAN
304 4-222-216-01 GEAR (SA)
305 3-338-645-31 WASHER (0.8-2.5)
306 4-222-208-01 GEAR (SB)
307 3-043-237-02 BEARING (N)
308 4-222-203-02 SCREW, LEAD
0 309 X-3381-589-1 SERVICE ASSY, OP (LCX-5R)
310 3-049-336-03 SPRING (S), RACK
311 3-225-996-06 SCREW (M1.4) (EG), PRECISION PAN
mechanism deck section-
2
301
not supplied
311
310
309
308
307
305
304
303
302
306
