Sony MZ-S1 Service Manual

10
MZ-S1

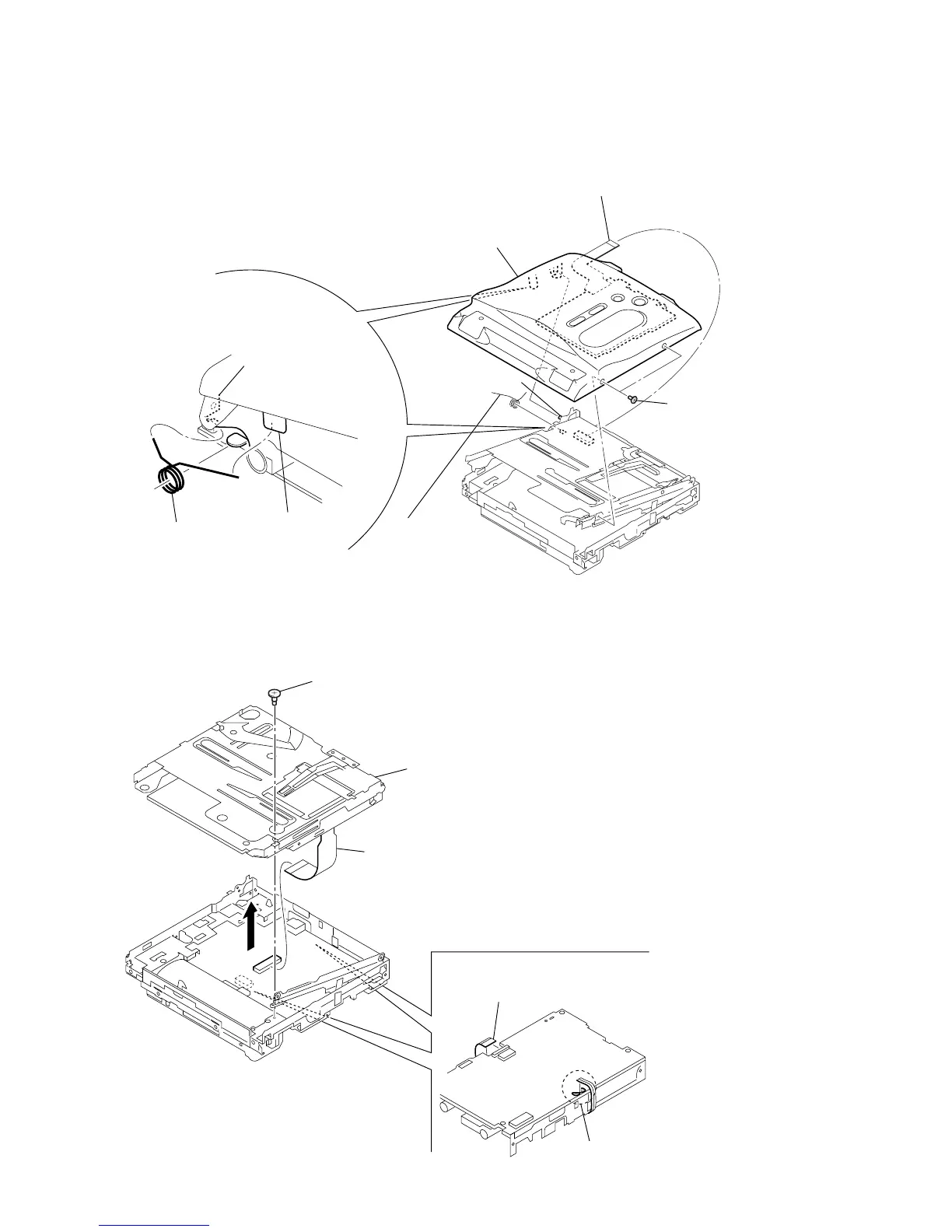

3-4. CASE (UPPER) SECTION
3-5. MECHANISM DECK (MT-MZN707-177)
5 case (upper) section
1 flexible board
(CN803)
2 two screw
s
(M1.4)
4 boss
3 torsion spring (L)
case (upper)
set chassis assy
torsion spring (L)
3 step screw (MD)
6 mechanism deck
(MT-MZN707-177)
5 flexible board (optical pick-up)
(CN501)
4
2 flexible board (motor)
(CN502)
1 Remove two solders of the
flexible board (over write head).

Sony MZ-S1 Specifications

General

Brand	Sony
Model	MZ-S1
Category	CD Player
Language	English
