Sony MZ-S1 Service Manual

8
MZ-S1
Note: Follow the disassembly procedure in the numerical order given.

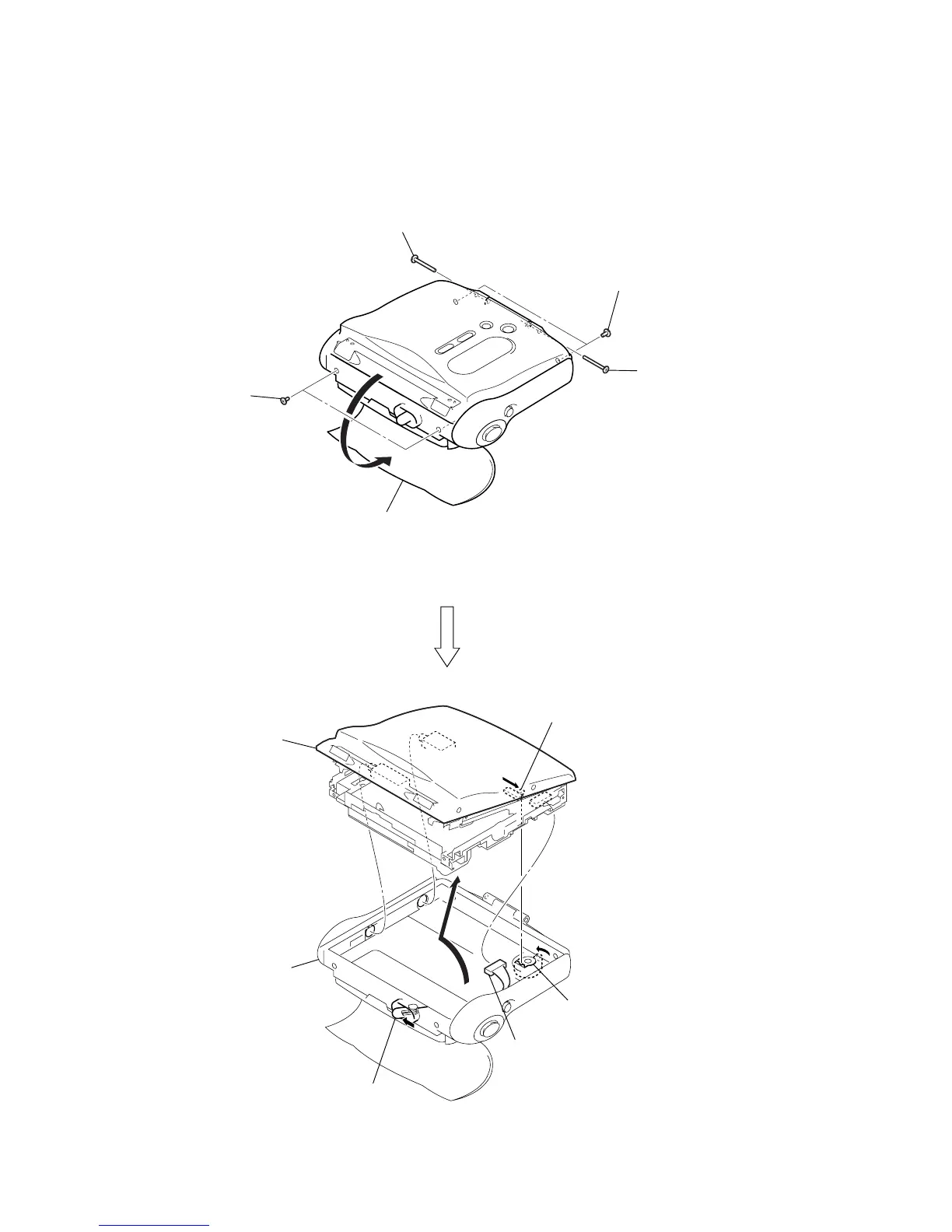

3-2. CASE (LOWER) SECTION
2 two screws
(M1.4)
2 two screws
(M1.4)
3 screw (case)
3 screw (case
)
1 Open the buckle (upper) assy.
5 connector
(CN802)
B
A
6 case (lower) section
4 Open the case (upper) with
the knob (open) and keep
pushing the knob (open)
in the direction of arrow
A
to remove the case (upper) section
in the direction of arrow
B .
lever (hold)
switch (S801)
Note: On installation, adjust
the position of both switc
h
(S801) and lever (hold).
knob (open)
