MZ-S1

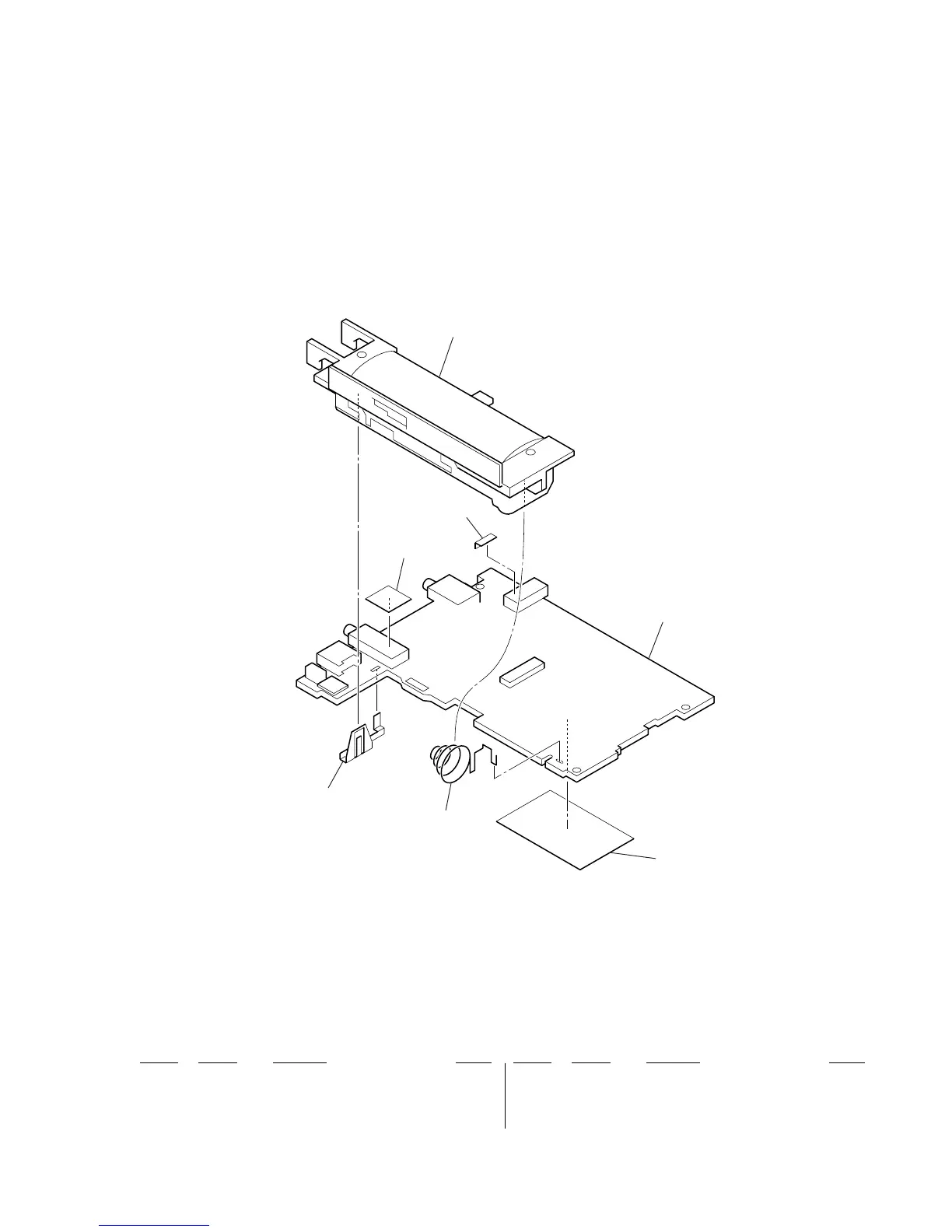

7-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 3-237-079-01 CASE, BATTERY
102 3-237-073-01 TERMINAL BOARD (+), BATTERY
103 3-237-074-01 TERMINAL (–), BATTERY
104 A-3021-764-B MAIN BOARD, COMPLETE (FOR SERVICE)
105 3-242-558-01 SPACER (LINE IN)
106 3-242-557-01 SPACER (DC IN)
107 3-242-559-01 SHEET (WIRE)
101
104
103
102
105
107
106
