Sony PCM-D50 - Backlight Board; Power Board

PCM-D50
12

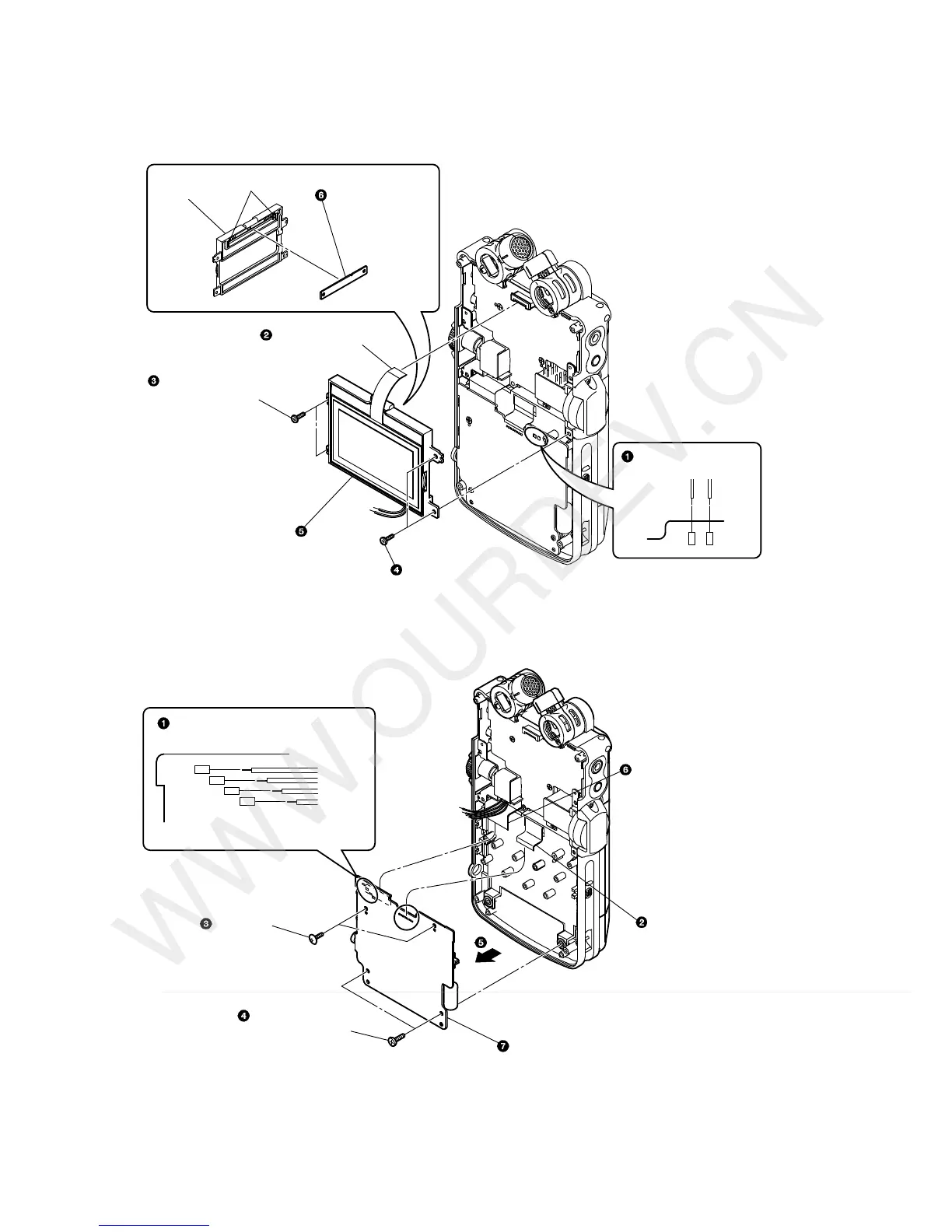

2-3. BACKLIGHT BOARD
2-4. POWER BOARD
two claws
LCD unit (13 core)
(CN4201)
LCD assy
LCD assy
BACKLIGHT board
Remove the two solders.
redwhite
two screws
P2 lock ace (M 1.7)
two screws
P2 lock ace (M 1.7)
Remove the four solders.
Remove the
flexible flat cable.
flexible flat cable (30core)
(CN2002)
red
gray
white
black
POWER board
two screws
P2 lock ace (M 1.7)
two screws
