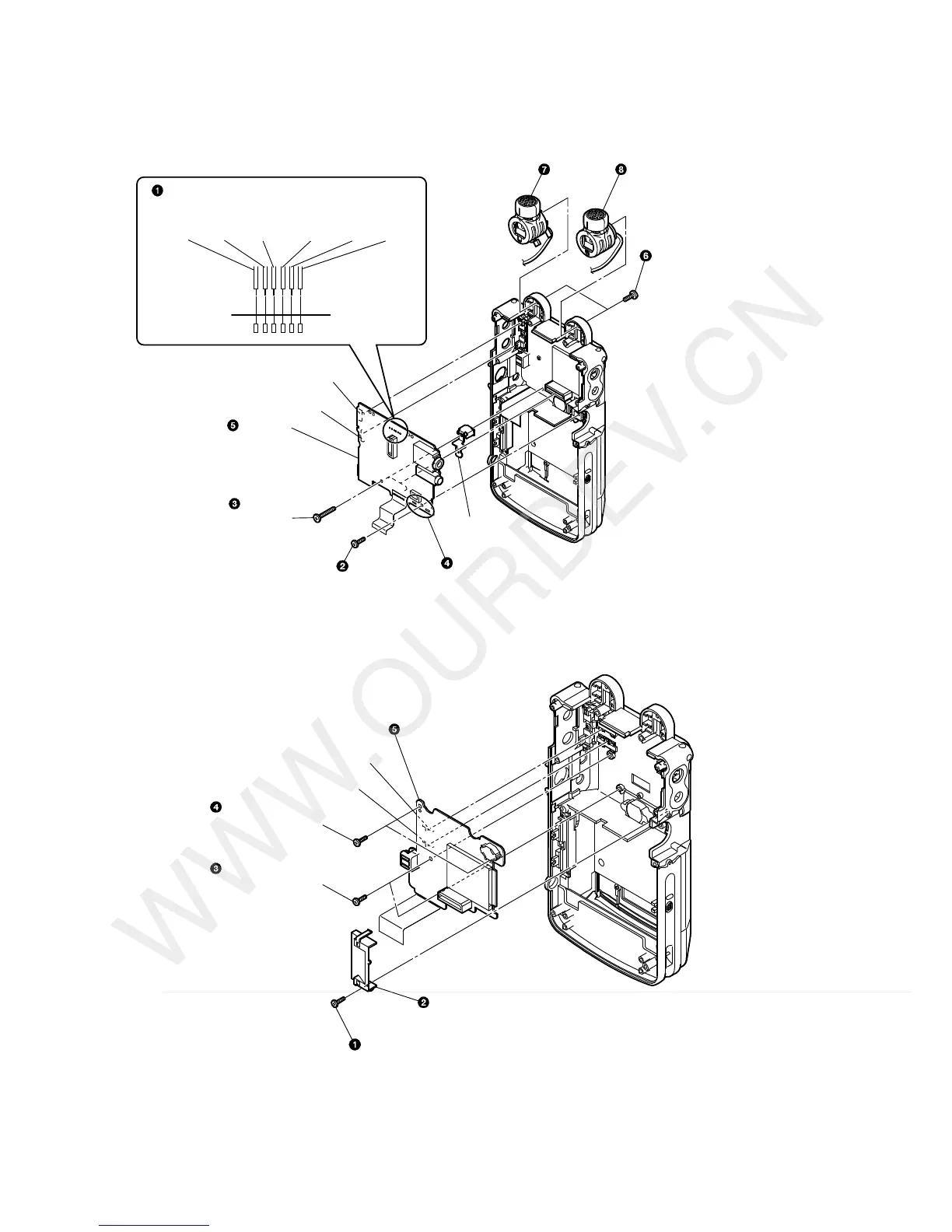

2-7. AD BOARD, MIC001, MIC002
2-8. SYSTEM BOARD
Remove the six solders.
Remove the two solders.
ground plate
S3002
S3003
AD board
red redyellowyellowblack
MIC001 MIC002
black
screw
(M 1.7)
MIC002 MIC001
screw
(M2 grip)
two screws
P2 lock ace (M 1.7)
guide (connector)
S1601
S1602
SYSTEM board
screw
P2 lock ace (M 1.7)
two screws
P2 lock ace (M 1.7)
two screws
P2 lock ace (M 1.7)
