Sony PCM-D50 - REC VOL Assy, HP VOL Assy; DA Board

PCM-D50
13

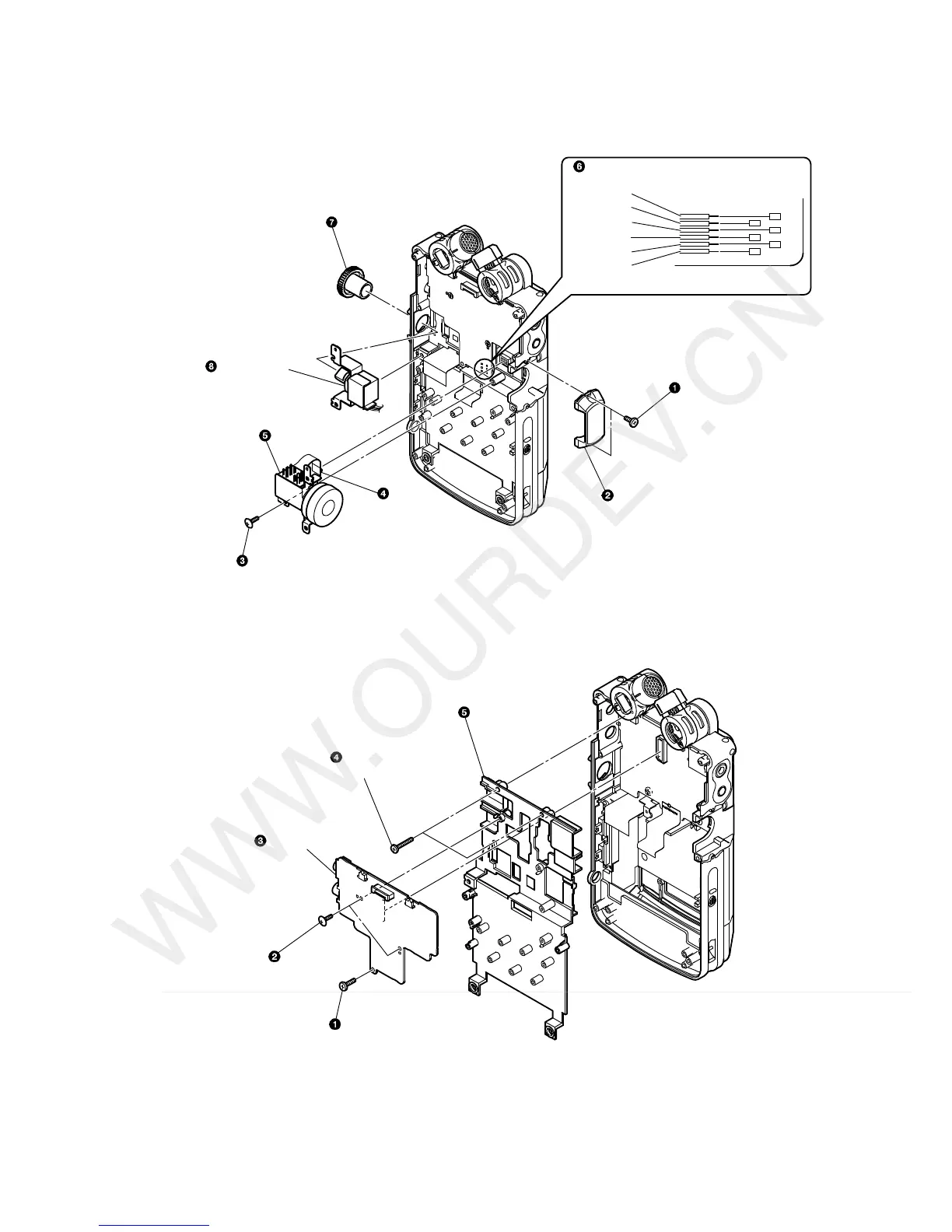

2-6. DA BOARD
2-5. REC VOL ASSY, HP VOL ASSY
Remove the six solders.
red
gray
yellow
orange
white
black
guard (VOL)
knob (VOL)
HP VOL assy
CN3001
REC VOL assy
screw
two screws
precision pan (M 1.4) (EG)
two screws
two screws
(special head (M 2))
chassis (PWB)
DA board
screw
P2 lock ace (M 1.7)
