Sony PRS-T2 - Case Front;Battery Exploded View

17
PRS-T2

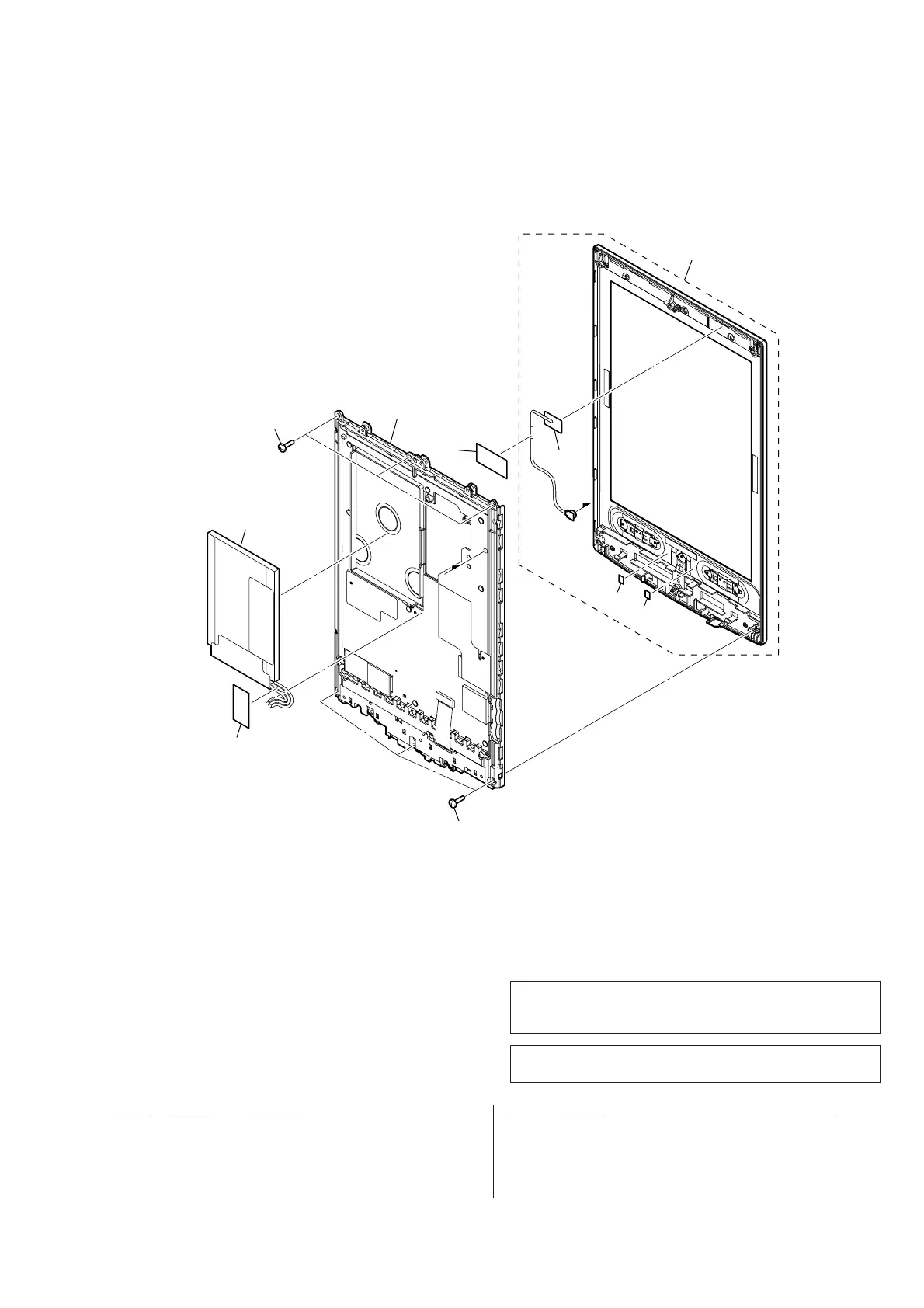

4-2. CASE FRONT, BATTERY SECTION
• Rear side view
51 4-287-952-01 SHEET (CABLE)
52 3-080-204-11 SCREW, TAPPING, P2
53 4-287-942-01 SHEET AL
54 A-1887-761-A CASE FRONT ASSY (BLACK)
54 A-1890-593-A CASE FRONT ASSY (WHITE)
54 A-1890-596-A CASE FRONT ASSY (RED)
55 4-408-115-01 SHEET (4X3), ADHESIVE
ANT1 1-754-832-11 WLAN ANTENNA
BAT1 A-1832-983-A BATTERY ASSY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
chassis section
ANT1
A
A
51
52
53
55
54
BAT1
52
55
Note 1: When soldering the battery assy (BAT1) to the MAIN board,
refer to “ABOUT THE LEAD WIRE OF BATTERY ASSY
(BAT1)” (page 3).
Note 2: When replacing the WLAN antenna (ANT1), refer to “NOTE
OF REPLACING THE WLAN ANTENNA” (page 3).
