Sony PRS-T2 - Jack Board;Chassis Assembly Removal

PRS-T2
9

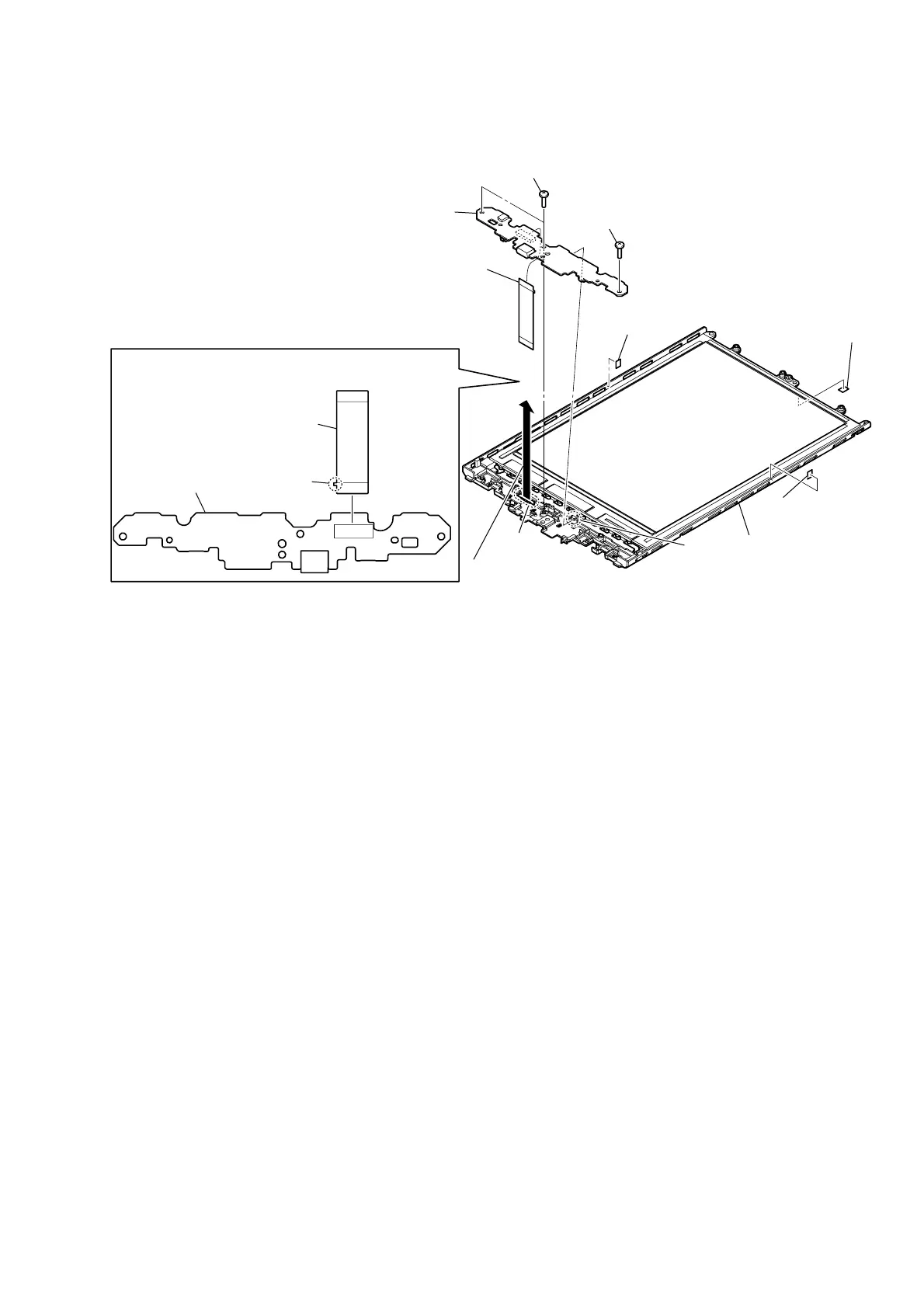

– Front bottom view –
1 two screws
(M1.4  L2)
1 screw
(M1.4  L2)
6 adhesive sheet
(4  3)
6 adhesive sheet
(4  3)
6 adhesive sheet
(4  3)
2 claw
3 Pull out FPC M-J5047
(FPC1) from the slit.
slit
7 chassis assy
(EII1)
4 FPC M-J5047
(FPC1)
FPC M-J5047 (FPC1)
convex part
5 JACK board
JACK board
Note:
When installing the FPC M-J5047 (FPC1),
confirm the inserted direction.
2-7. JACK BOARD, CHASSIS ASSY (EII1)
