Sony PRS-T2 - Main Board Removal

PRS-T2
6

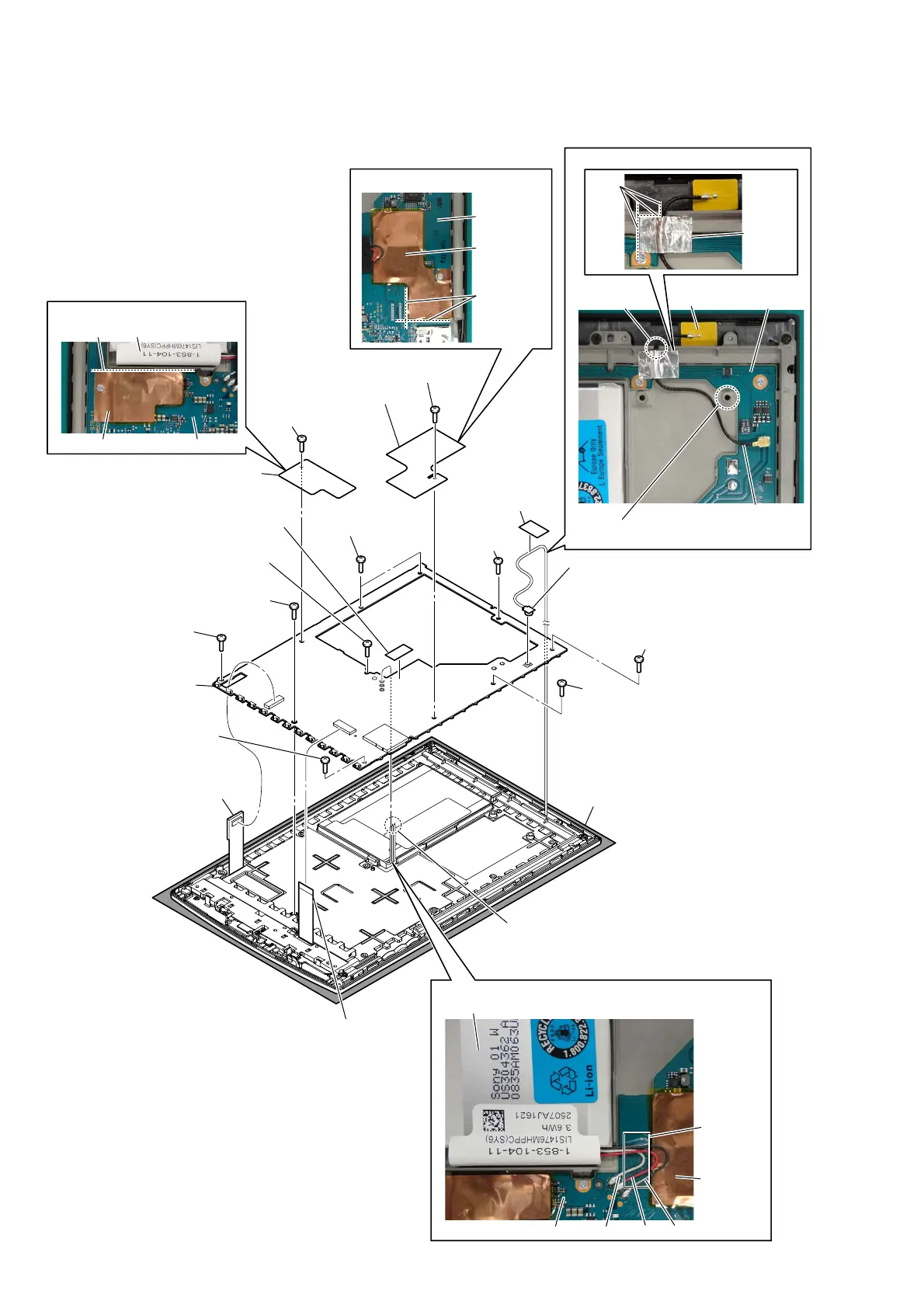

2-3. MAIN BOARD
ditch
MAIN board
MAIN board
MAIN board
WLAN antenna
(ANT1)
WLAN antenna wire
:/$1DQWHQQDZLUHVHWWLQJ
&RSSHUOHDI3:%VHWWLQJ
&RSSHUVKHHWVHWWLQJ
1 sheet AL
3 sheet (cable)
2 WLAN antenna connector
9 copper leaf (PWB)
copper leaf
(PWB)
0 copper sheet 2
copper sheet 2
qa MAIN board
±5HDUERWWRPVLGHYLHZ±
5 FPC M-J5047
6 element INK indicator
flexible printed board
7 shaft
(M1.4 u L1.6)
8 screw
(M1.4 u L2)
8 screw
(M1.4 u L2)
8 screw
(M1.4 u L2)
8 screw (M1.4 u L2)
8 two screws
(M1.4 u L2)
8 screw
(M1.4 u L2)
8 screw
(M1.4 u L2)
8 screw
(M1.4 u L2)
8 screw
(M1.4 u L2)
Note 1:
Please spread a sheet under a
unit not to injure case front.
Note 2:
WLAN antenna wire must not run
aground to a boss.
4
Remove three solders of battery wire.
Note 3:
When soldering, refer to “ABOUT THE LEAD
WIRE OF BATTERY ASSY (BAT1)” (page 3).
MAIN board
%DWWHU\DVV\ZLUHVHWWLQJ
copper leaf
(PWB)
white
red black
battery assy (BAT1)
sheet
(cable)
sheet AL
guide
line
guide
line
guide line battery assy (BAT1)
