Sony PRS-T2 - Case Front Assembly Removal

PRS-T2
7

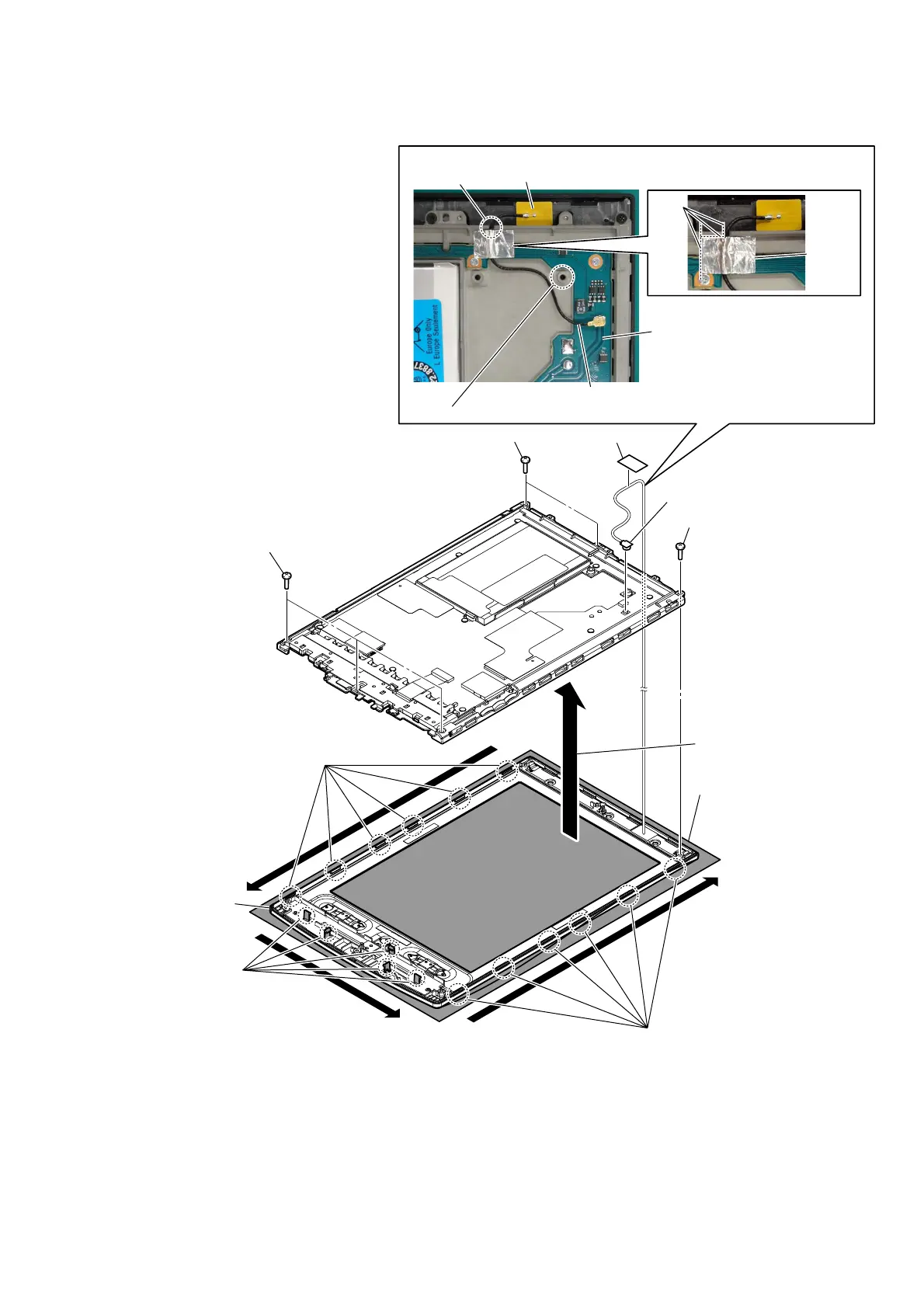

2-4. CASE FRONT ASSY
– Rear bottom side view –
A
B
C
4 Remove five claws in
order of the arrow A.
5 Remove six claws in
order of the arrow B.
7 Remove the chassis block.
6 Remove six claws in
order of the arrow C.
8 case front assy
3 three tapping screws
(P2)
3 tapping screw
(P2)
3 two tapping screws
(P2)
1 sheet AL
2 WLAN antenna connector
MAIN board
WLAN antenna (ANT1)
WLAN antenna wire
• WLAN antenna wire setting
Note 1:
Please spread a sheet under a
unit not to injure case front.
Note 2:
WLAN antenna wire must not run aground to a boss.
ditch
sheet AL
guide
line
