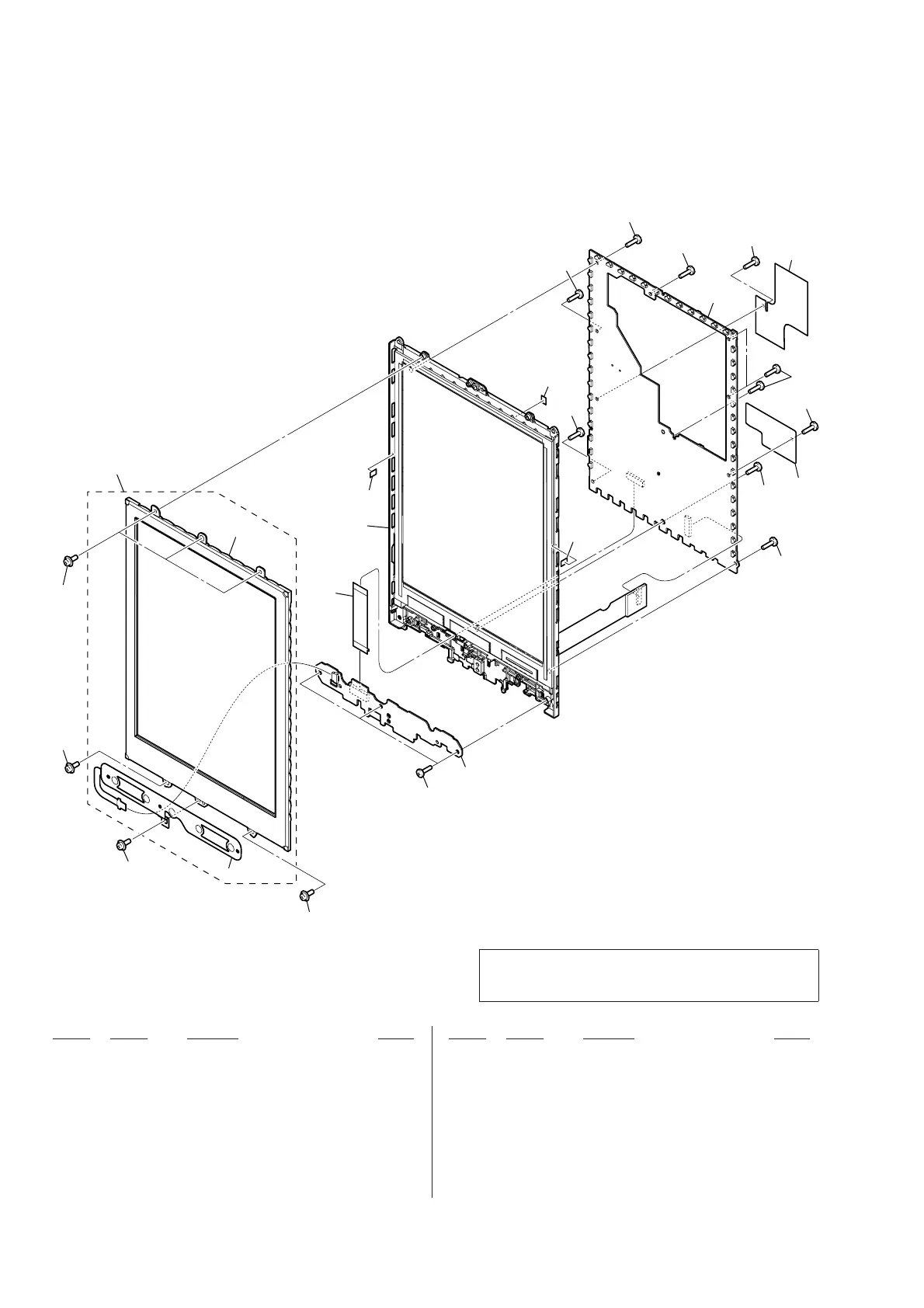

Sony PRS-T2 - Chassis Exploded View

18
PRS-T2
4-3. CHASSIS SECTION
101 4-441-316-01 SHAFT (LIGHT GUIDE)
102 4-283-797-01 LIGHT GUIDE
103 4-292-680-11 SHAFT (M1.4XL2)
104 A-1887-454-A JACK BOARD, COMPLETE
105 X-2585-595-1 MAIN BOARD, COMPLETE (for SERVICE)
(US, CND)
105 X-2585-596-1 MAIN BOARD, COMPLETE (for SERVICE)
(AEP, US, AUS)
105 X-2585-597-1 MAIN BOARD, COMPLETE (for SERVICE) (RU)
106 4-443-937-01 SHAFT (M1.4XL1.6)
107 4-433-925-01 LEAF (PWB), COPPER
108 4-408-115-01 SHEET (4X3), ADHESIVE
109 4-438-998-01 COPPER SHEET2
EII1 A-1887-764-A CHASSIS ASSY
(Including ELEMENT INK INDICATOR 6 inch)
FPC1 1-884-637-11 FPC M-J5047
LG1 A-1890-612-A LIGHT GUIDE ASSY (Including SHHET SWITCH)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: When replacing the MAIN board or CHASSIS ASSY
(EII1), refer to “NOTE OF REPLACING THE COM-
PLETE MAIN BOARD OR CHASSIS ASSY” (page 3).
FPC1
101
EII1
not supplied
LG1
101
101
102
103
104
105
106
109
107
103
103
103
103
103
108
108
103
103
103
101
108
