Sony PRS-T2 - Battery Assembly Removal; Light Guide Assembly Removal

PRS-T2
8

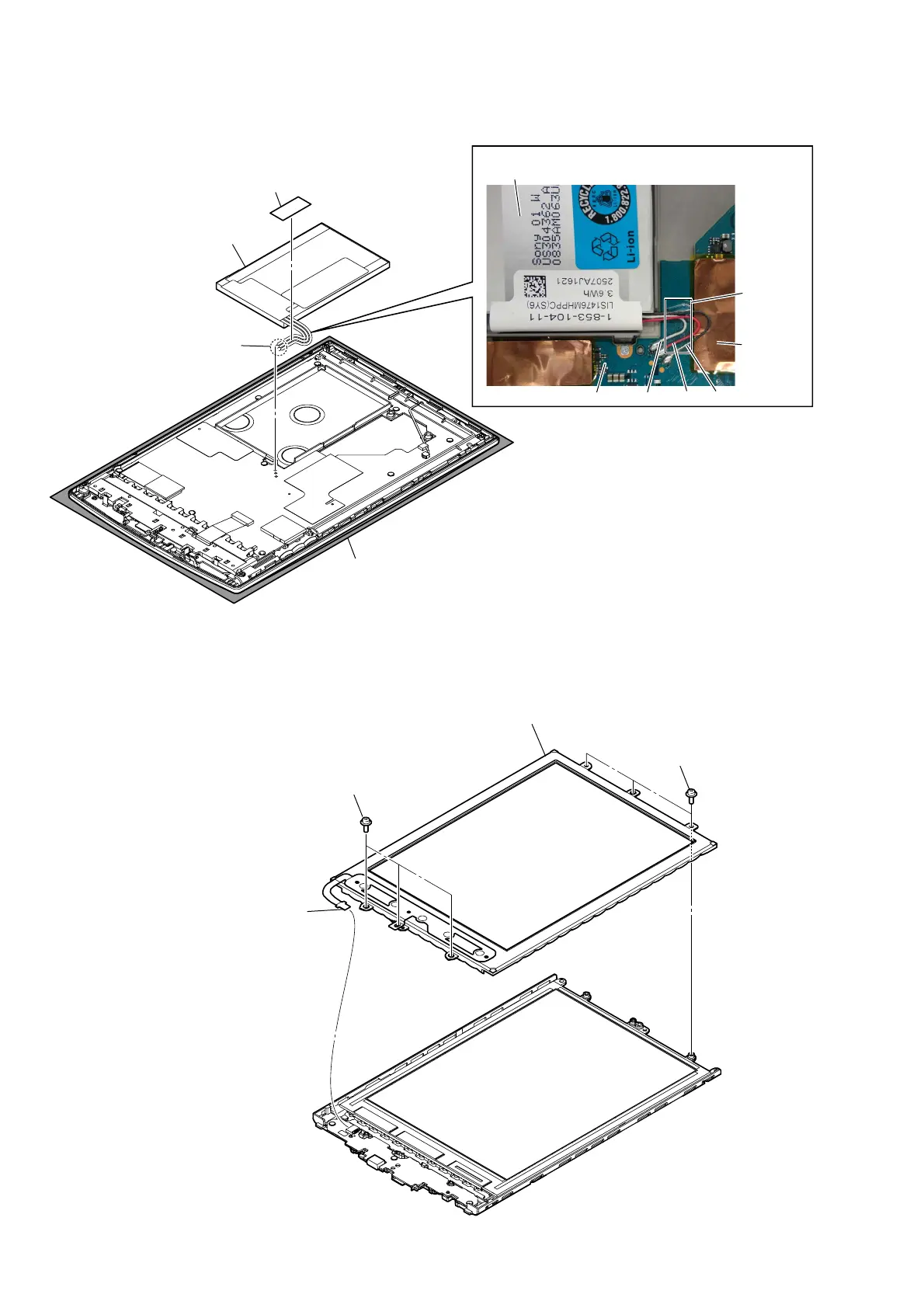

2-5. BATTERY ASSY (BAT1)
2-6. LIGHT GUIDE ASSY (LG1)
– Rear bottom view –
1 sheet (cable)
3
battery assy (BAT1)
Note 1:
Please spread a sheet under a
unit not to injure case front.
2
Remove three solders of
battery wire.
Note 2:
When soldering, refer
to “ABOUT THE LEAD
WIRE OF BATTERY
ASSY (BAT1)” (page 3).
MAIN board
• Battery assy wire setting
copper leaf
(PWB)
white
red black
battery assy (BAT1)
sheet
(cable)
– Front bottom side view –
3 light guide assy
(LG1)
1 sheet switch flexible board
2 three shafts
(light guide)
2 three shafts
(light guide)
