Sony PS-FL1 - General Parts List; General Section Parts

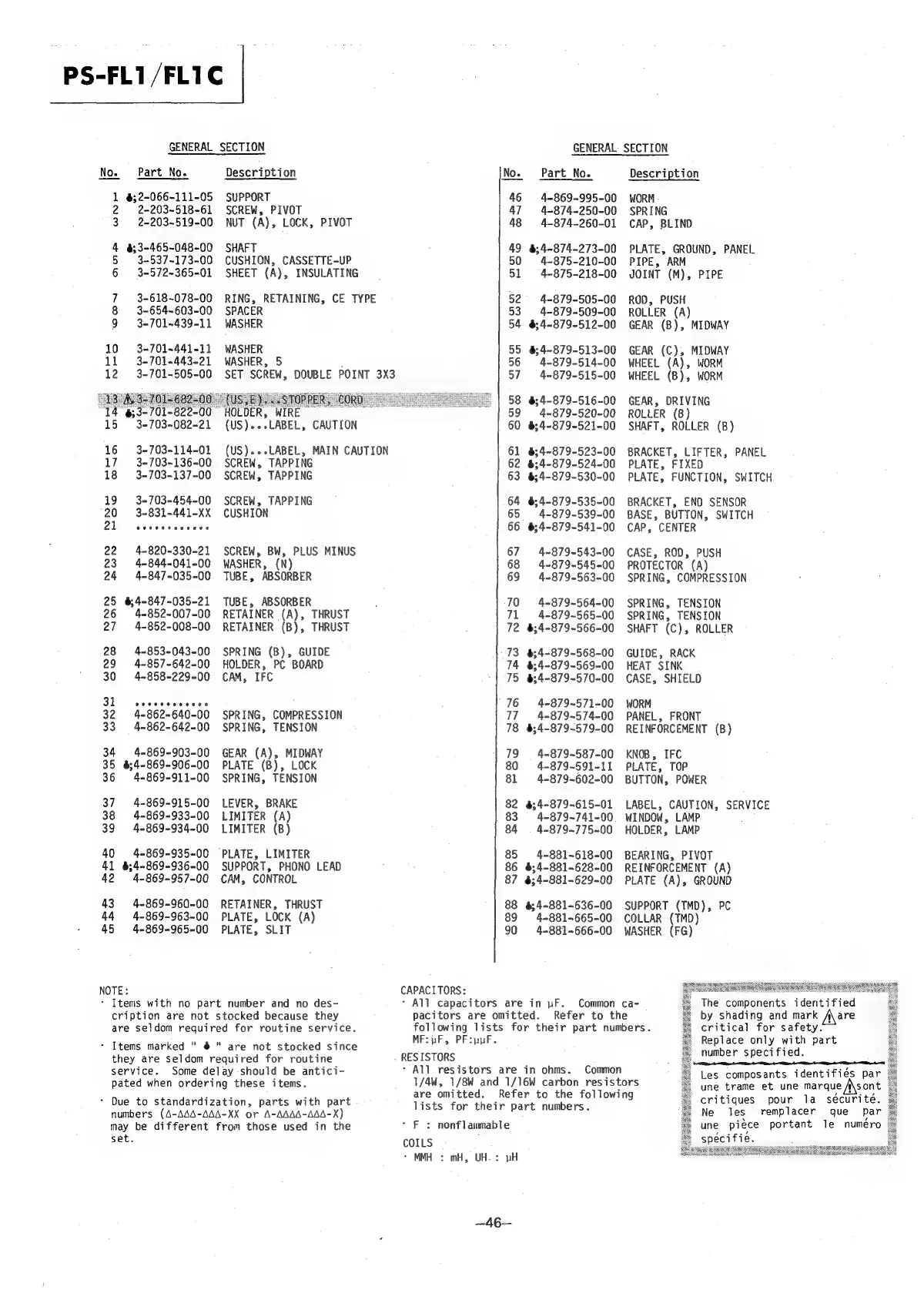

PS-FL1/FLIC
GENERAL SECTION GENERAL. SECTION
No. Part No. Description No. Part _No. Description
1 @32-066~-111-05 SUPPORT 46 4-869-995-00 WORM
2 2-203~518-61 SCREW, PIVOT 47 4-874-250-00 SPRING
3 2-203-519-00 NUT (A), LOCK, PIVOT 48 4-874-260-01 CAP, BLIND
4 8;3-465~048-00 SHAFT 49 6;4-874-273-00 PLATE, GROUND, PANEL
5 3-537~173-00 CUSHION, CASSETTE-UP 50 4-875-210-00 PIPE, ARM
6 3-572~365-01 SHEET (A), INSULATING 51 4-875-218-00 JOINT (M), PIPE
7 3-618~078-00 RING, RETAINING, CE TYPE 52 4-879-505-00 ROD, PUSH
8 3-654-603-00 SPACER 53 4-879-509-00 ROLLER (A)
9 3-701~439-11 WASHER 54 6;4-879-512-00 GEAR (B), MIDWAY
10 3+701-441-11 WASHER 55 6;4-879-513-00 GEAR (C), MIDWAY
11 3-701-443-21 WASHER, 5 . 56 4-879-514-00 WHEEL (A), WORM
12 3-701-505-00 SET SCREW, DOUBLE POINT 3X3 57 = 4-879-515-00 WHEEL (B), WORM
58 6;4-879-516-00 GEAR, DRIVING
; ; 59 4-879-520-00 ROLLER (B)
15 3-703-082-21 (US)...LABEL, CAUTION 60 @;4-879-521-00 SHAFT, ROLLER (B)
16 3-703-114-01 (US)..-LABEL, MAIN CAUTION 61 6;4-879-523-00 BRACKET, LIFTER, PANEL
17 3-703-136-00 SCREW, TAPPING 62 @;4-879-524-00 PLATE, FIXED
18 3+703-137-00 SCREW, TAPPING 63 @;4-879-530-00 PLATE, FUNCTION, SWITCH
19 3-703-454-00 SCREW, TAPPING 64 $;4-879-535-00 BRACKET, END SENSOR
20 3-831-441-XX CUSHION 65 4-879-539-00 BASE, BUTTON, SWITCH
Ol Livecertvana 66 #;4-879-541-00 CAP, CENTER
22 4-820-330-21 SCREW, BW, PLUS MINUS 67 4-879-543-00 CASE, ROD, PUSH
23 4-844-041-00 WASHER, (N) 68 4-879-545-00 PROTECTOR (A)
24 4-847-035-00 TUBE, ABSORBER 69 4-879-563-00 SPRING, COMPRESSION
25 &;4-847-035-21 TUBE, ABSORBER 70 4-879-564-00 SPRING, TENSION
26 4-852-007-00 RETAINER (A), THRUST 71 4-879-565-00 SPRING, TENSION
27 4-852-008-00 RETAINER (B), THRUST 72 6;4-879-566-00 SHAFT (C), ROLLER
28 4-853-043-00 SPRING (B), GUIDE 73 ;4-879-568-00 GUIDE, RACK
29 4-857-642-00 HOLDER, PC BOARD 74 #;4-879-569-00 HEAT SINK
30 4-858-229-00 CAM, IFC 75 @;4-879-570-00 CASE, SHIELD
Si) Tuacueseident 76 4-879~571-00 WORM
32 4-862-640-00 SPRING, COMPRESSION 77 4-879-574-00 PANEL, FRONT
33 4-862-642-00 SPRING, TENSION 78 @;4-879-579-00 REINFORCEMENT (B)
34 4-869-903-00 GEAR (A), MIDWAY 79 4-879-587-00 KNOB, IFC
35 &4-869-906-00 PLATE (B), LOCK 80 4-879-591-11 PLATE, TOP
36 4-869-911-00 SPRING, TENSION 81 4-879-602-00 BUTTON, POWER
37 4-869-915-00 LEVER, BRAKE 82 8;4-879-615-01 LABEL, CAUTION, SERVICE
38 4-869-933-00 LIMITER (A) 83 4-879-741-00 WINDOW, LAMP
39 4-869-934-00 LIMITER (B) 84 4-879-775-00 HOLDER, LAMP
40 4-869-935-00 PLATE, LIMITER 85 4-881-618-00 BEARING, PIVOT
41 6;4-869-936-00 SUPPORT, PHONO LEAD 86 $;4-881-628-00 REINFORCEMENT (A)
42 4-869-957-00 CAM, CONTROL 87 $;4-881-629-00 PLATE (A), GROUND
43 4-869-960-00 RETAINER, THRUST 88 ;4-881-636-00 SUPPORT (TMD), PC
44 4-869-963-00 PLATE, LOCK (A) 89 4~881-665-00 COLLAR (TMD)
45 4-869-965-00 PLATE, SLIT 90 4-881-666-00 WASHER (FG)
CAPACITORS:
NOTE:
‘ Items with no part number and no des-
cription are not stocked because they
are seldom required for routine service.
* Items marked " 6" are not stocked since
they are seldom required for routine
. The components identified
» by shading and mark A\ are
critical for safety.
Replace only with part
number specified.
* All capacitors are in uF. Common ca-
pacitors are omitted. Refer to the
following lists for their part numbers.
MF: uF, PF:yuF.
- RESISTORS
* All resistors are in ohms.
ne re db Bh =
Les composants identifiés par
Common
service. Some delay should be antici- m
pated when ordering these items. 1/4W, 1/8W and 1/16W carbon resistors une trame et une marque A\sont
eal , are omitted. Refer to the following iti Sir lac sécurité
* Due to standardization, parts with part lists for their part numbers. critiques pi 1 :
numbers (A-AAA-AAA-XX or A-AAAA-AAA-X) Ne les remplacer que par
may be different from those used in the * Fo: nonflammable une piece portant Je numero
set.
COILS
os
specifie.
* MMH : mH, UH.: pH
—A6—
