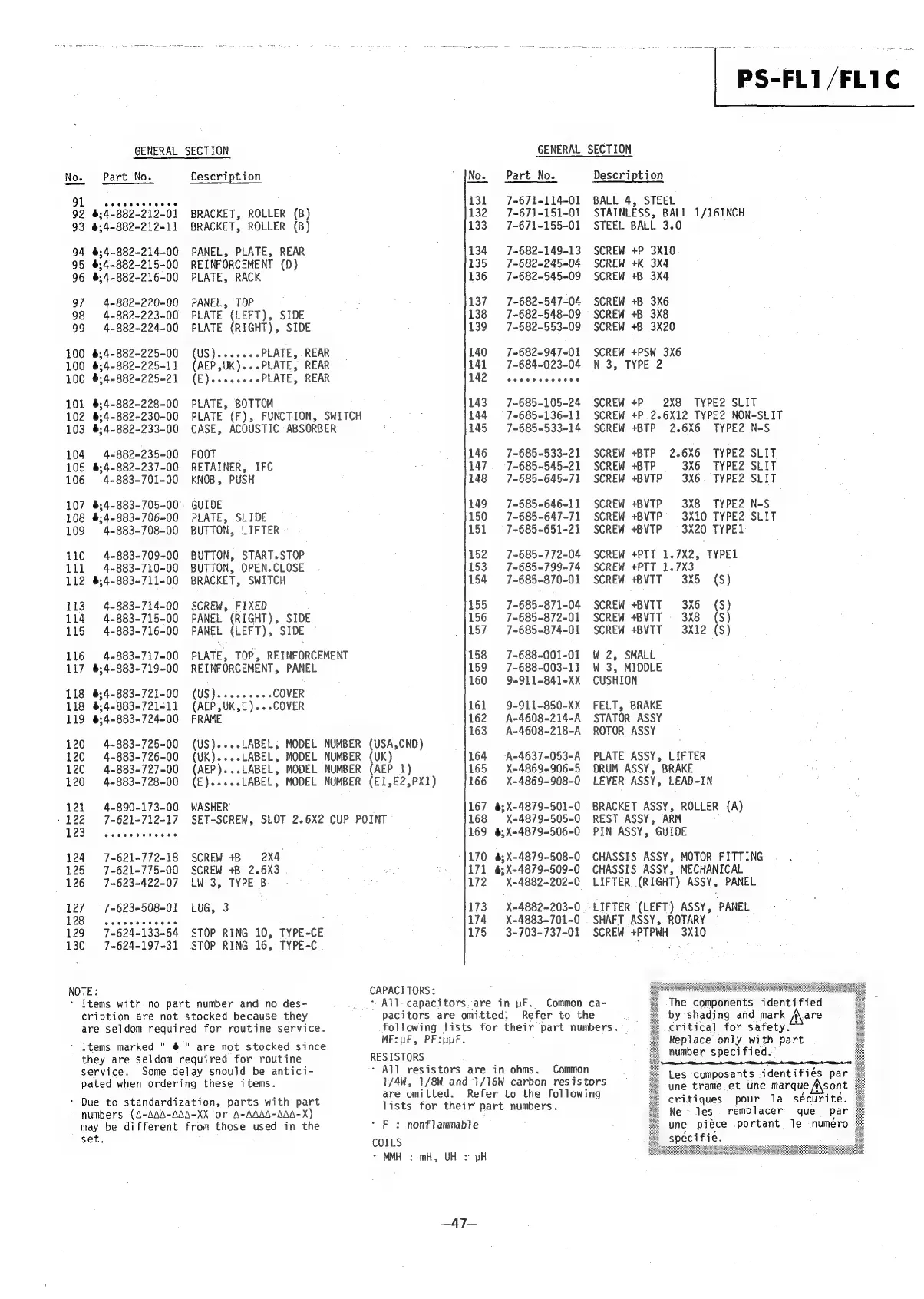

Sony PS-FL1 - General Component Parts List; Additional General Parts

Items with no part number and no des-
cription are not stocked because they
: All. capacitors. are in uF.
pacitors. are omitted:
Common ca-
Refer to the
PS-FL1/FL1C
GENERAL SECTION GENERAL SECTION
No. Part No. Description No. Part No. Description
QL aeasceceeeee 131 7-671-114-01 BALL 4, STEEL
92 4; 34- 882-212-01 BRACKET, ROLLER (8) 132 7-671-151-01 STAINLESS, BALL 1/16INCH
93 6;4-882-212-11 BRACKET, ROLLER (B) 133 7-671-155-01 STEEL BALL 3.0
94 6;4-882-214-00 PANEL, PLATE, REAR 134 7-682-149-13 SCREW +P 3X10
95 8;4-882-215-00 REINFORCEMENT (D) 135 7-682-245-04 SCREW +K 3X4
96 ;4-882-216-00 PLATE, RACK 136 7-682-545-09 SCREW +B 3X4
97 4-882-220-00 PANEL, TOP 137 7-682-547-04 SCREW +B 3X6
98 4-882-223-00 PLATE (LEFT), SIDE 138 7-682-548-09 SCREW +B 3X8
99 4-882-224-00 PLATE (RIGHT), SIDE 139 7-682-553-09 SCREW +B 3X20
100 6;4-882-225-00 (US).......PLATE, REAR 140 7-682-947-01 SCREW +PSW 3X6
100 6;4-882-225-11 (AEP,UK)...PLATE, REAR 141 = 7-684-023-04 N 3, TYPE 2
100 $;4~882-225-21 (E).++..+..sPLATE, REAR 142 eaeececece
101 $;4-882-228-00 PLATE, BOTTOM 143. 7-685-105-24 SCREW +P 2X8 TYPE2 SLIT
102 ;4-882-230-00 PLATE (F), FUNCTION, SWITCH 144 = 7-685-136-11 SCREW +P 2.6X12 TYPE2 NON-SLIT
103 ;4-882-233-00 CASE, ACOUSTIC ABSORBER 145 7-685-533-14 SCREW +BTP 2.6X6 TYPE2 N-S
104 4-882-235-00 FOOT 146 7-685-533-21 SCREW +BTP 2.6X6 TYPE2 SLIT
105 ;4-882-237-00 RETAINER, IFC 147. 7-685-545-21 SCREW +BTP 3X6 TYPE2 SLIT
106 4-883-701-00 KNOB, PUSH 148 7-685-645-71 SCREW +BYTP 3X6. TYPE2 SLIT
107 6;4-883-705-00 GUIDE 149 7-685-646-11 SCREW +BVTP 3X8 TYPE2 N-S
108 6;4-883-706-00 PLATE, SLIDE 150 7-685-647-71 SCREW +BVTP 3X10 TYPE2 SLIT
109 4-883-708-00 BUTTON, LIFTER 151 = 7-685-651-21 SCREW +BVTP 3X20 TYPE1
110 4-883-709-00 BUTTON, START.STOP 152 7-685-772-04 SCREW +PTT 1.7X2, TYPE1
111 4-883-710-00 BUTTON, OPEN.CLOSE 153 7-685-799-74 SCREW +PTT 1.7X3
112 $;4-883-711-00 BRACKET, SWITCH 154 7-685-870-01 SCREW +BVTT 3X5 (S)
113 4-883-714-00 SCREW, FIXED 155 7-685-871-04 SCREW +BVTT 3X6 (S)
114 4-883-715-00 PANEL (RIGHT), SIDE 156 7-685-872-01 SCREW +BVTT 3X8 (S)
115 4-883-716-00 PANEL (LEFT), SIDE 157 7-685-874-01 SCREW +BVTT 3X12 (S)
116 4-883-717-00 PLATE, TOP, REINFORCEMENT 158 7-688-001-01 W 2, SMALL
117 $;4-883-719-00 REINFORCEMENT, PANEL 159 7-688-003-11 W 3, MIDDLE
160 9-911-841-XX CUSHION
118 6;4-883-721-00 (US).........COVER
118 ;4-883-721-11 (AEP,UK,E)...COVER 161 9-911-850-XX FELT, BRAKE
119 res 4-883-724-00 FRAME 162 A-4608-214-A STATOR ASSY
163 A-4608-218-A ROTOR ASSY
120 4-883-725-00 (US)....LABEL, MODEL NUMBER (USA,CND)
120 4-883-726-00 (UK)....LABEL, MODEL NUMBER (UK) 164 A-4637-053-A PLATE ASSY, LIFTER
120 4-883-727-00 (ees +»LABEL, MODEL NUMBER (AEP 1) 165 X-4869-906-5 DRUM ASSY, BRAKE
120 4-883-728-00 (£).....LABEL, MODEL NUMBER (E1,E2,PX1) 166 X-4869-908-0 LEVER ASSY, LEAD-IN
121 4-890-173-00 WASHER 167 ;X-4879-501-0 BRACKET ASSY, ROLLER (A)
- 122 7-621-712-17 SET-SCREW, SLOT 2.6X2 CUP POINT 168 X-4879-505-0 REST ASSY, ARM
1230 woes se eeees 169 6;X-4879-506-0 PIN ASSY, GUIDE
124 7-621-772-18 SCREW +B = 2X4 170 6;X-4879-508-0 CHASSIS ASSY, MOTOR FITTING
125 7-621-775-00 SCREW +B 2.6X3 171 6;X-4879-509-0 CHASSIS ASSY, MECHANICAL
126 =7-623-422-07_ LW 3, TYPE B 172 X-4882-202-0 LIFTER (RIGHT) ASSY, PANEL
127 = 7-623-508-01 LUG, 3 173 X-4882-203-0 . LIFTER (LEFT) ASSY, PANEL
128 seseeeee oe 174 X-4883-701-0 . SHAFT ASSY, ROTARY
129 7-624-133-54 STOP RING 10, TYPE-CE 175 3-703-737-01 SCREW +PTPWH 3X10
130 7-624-197-31 STOP RING 16, TYPE-C p foe
NOTE: CAPACITORS:
The comp onents identified
by shading and mark
following lists for their part numbers.
critica] for safety.
are seldom required for routine service.
* Items marked " 6" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
* Due to standardization, parts with part
numbers (A-AAA-AAA-XX or A-AAAA-AAA-X)
may be different from those used in the
set.
MFiuF, PFruuF.
RESISTORS
* All resistors are in ohms.
1/4W, 1/8W and 1/16W carbon resistors
Refer to the following are omitted.
lists for their’ part numbers.
* Fo: nonflammable
COILS
* MMH : mH, UH > LH
Common
Replace only with part
number specified.”
nya some nike
Les composants identifiés par
une trame et une marque A\sont
critiques pour la sécurité.
Ne = les . remplacer que par
une piece portant Je -numéro
specifie.
