Sony RCD-W500C - Printed Wiring Boards - CD-R Section (Side B)

6464
RCD-W500C
Ref. No. Location
D101 C-6
D102 C-6
IC101 B-5
IC103 B-7
IC104 B-4
IC171 E-6
IC172 E-7
IC201 C-3
IC202 D-2
IC204 B-3
IC301 C-2
IC302 D-1
IC501 E-4
IC502 E-3
IC503 E-2
IC504 E-2
IC505 F-2
IC506 E-2
• Semiconductor
Location

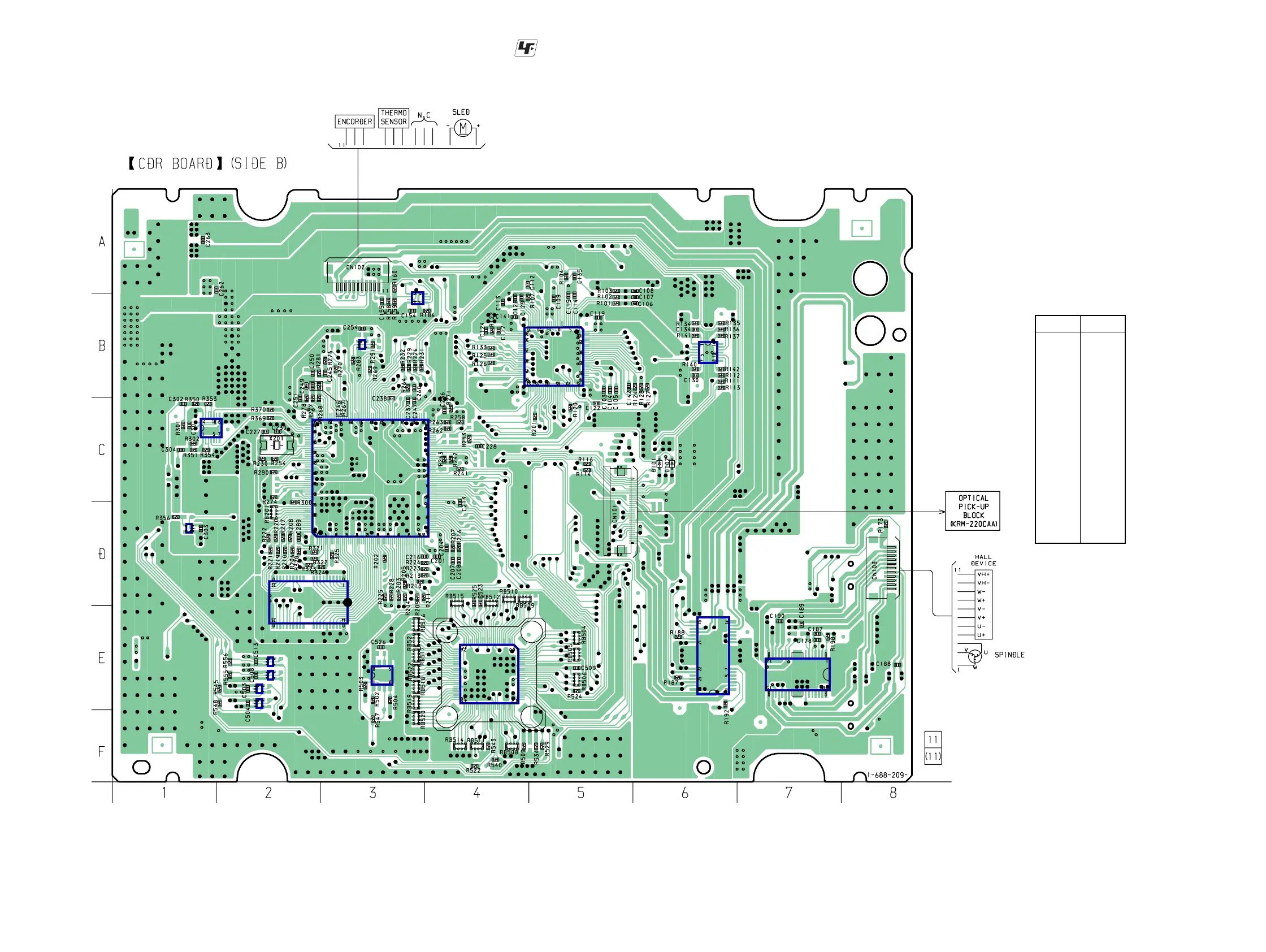

6-7. Printed Wiring Boards – CD-R Section (Side B) – • See page 55 for Circuit Boards Location.
• : Uses unleaded solder.
IC301
IC201
IC204
IC506
IC502
IC202
IC501
IC504
IC503
IC505
IC302
IC171
IC172
IC101
IC103
IC104
1
1
MOTOR
32
1
MOTOR
11
1
