Sony RCD-W500C - Front Panel Section; SW Board, LED Board, DISP Board

8
RCD-W500C

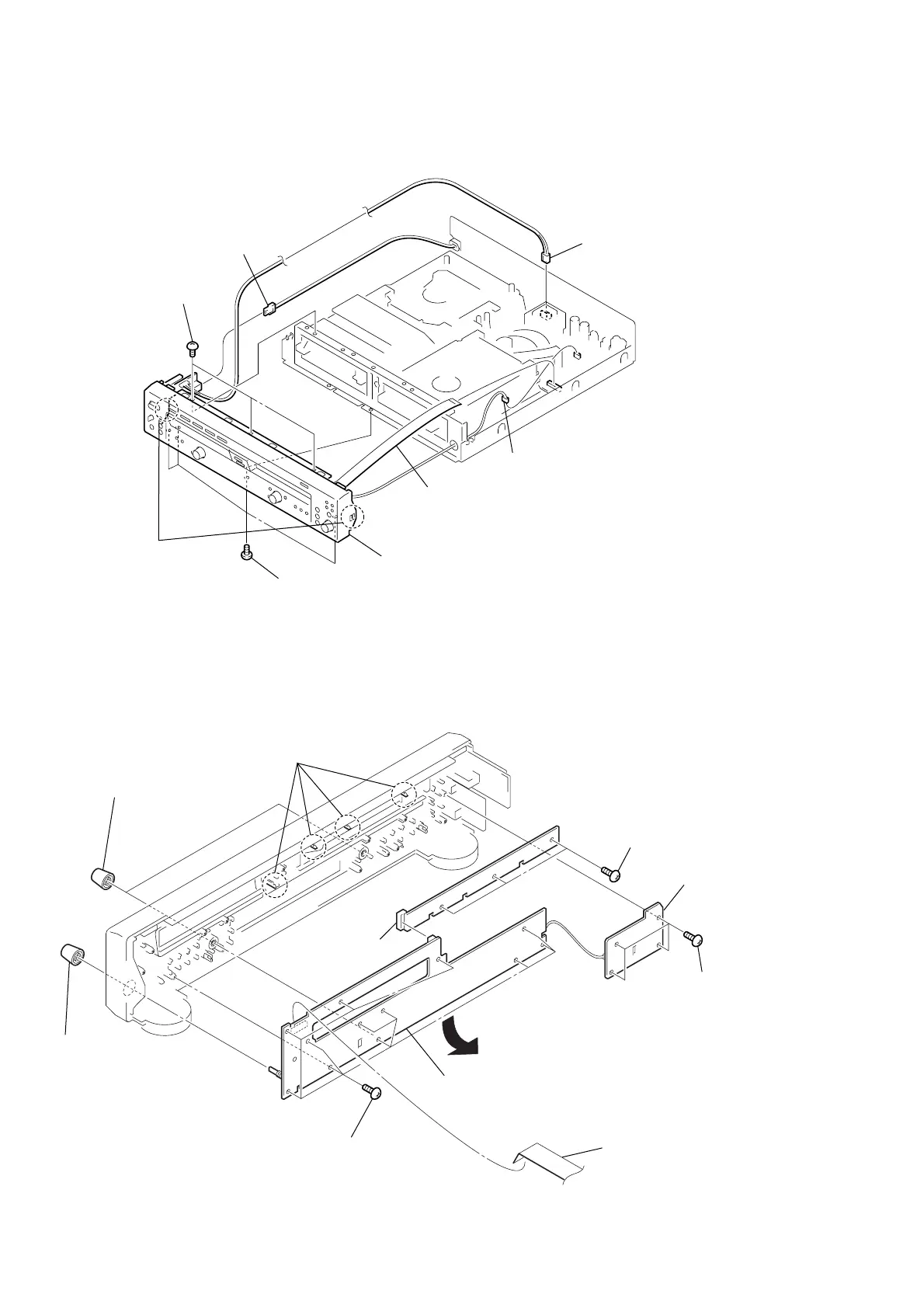

3-3. Front Panel Section
3-4. SW Board, LED Board, DISP Board
7 t wo claws
8 front panel section
1 connector (2pin) (CN900
)
2 connector (3pin) (CN690)
4 connector (2pin) (CN920)
5 three screws
(+BVTP 3
× 8)
6 four screws
(+BVTP 3
× 8)
3 wire (flat type)
(21core) (CN671)
5 three screws
(+BVTP 2.6
× 8)
7 four claws
2 two knobs (AMS)
1 knob (AMS)
6 twelve screws
(+BVTP 2.6
× 8)
3 four screws
(+BVTP 2.6
× 8)
4 SW board
8 LED board
q; DISP board
9 wire (flat type)
(21core) (CN700)
