Sony RCD-W500C - Case (409538); Loading Panel (CDR)

7
RCD-W500C
Note : Follow the disassembly procedure in the numerical order given.
3-1. Case (409538)
3-2. Loading Panel (CDR)

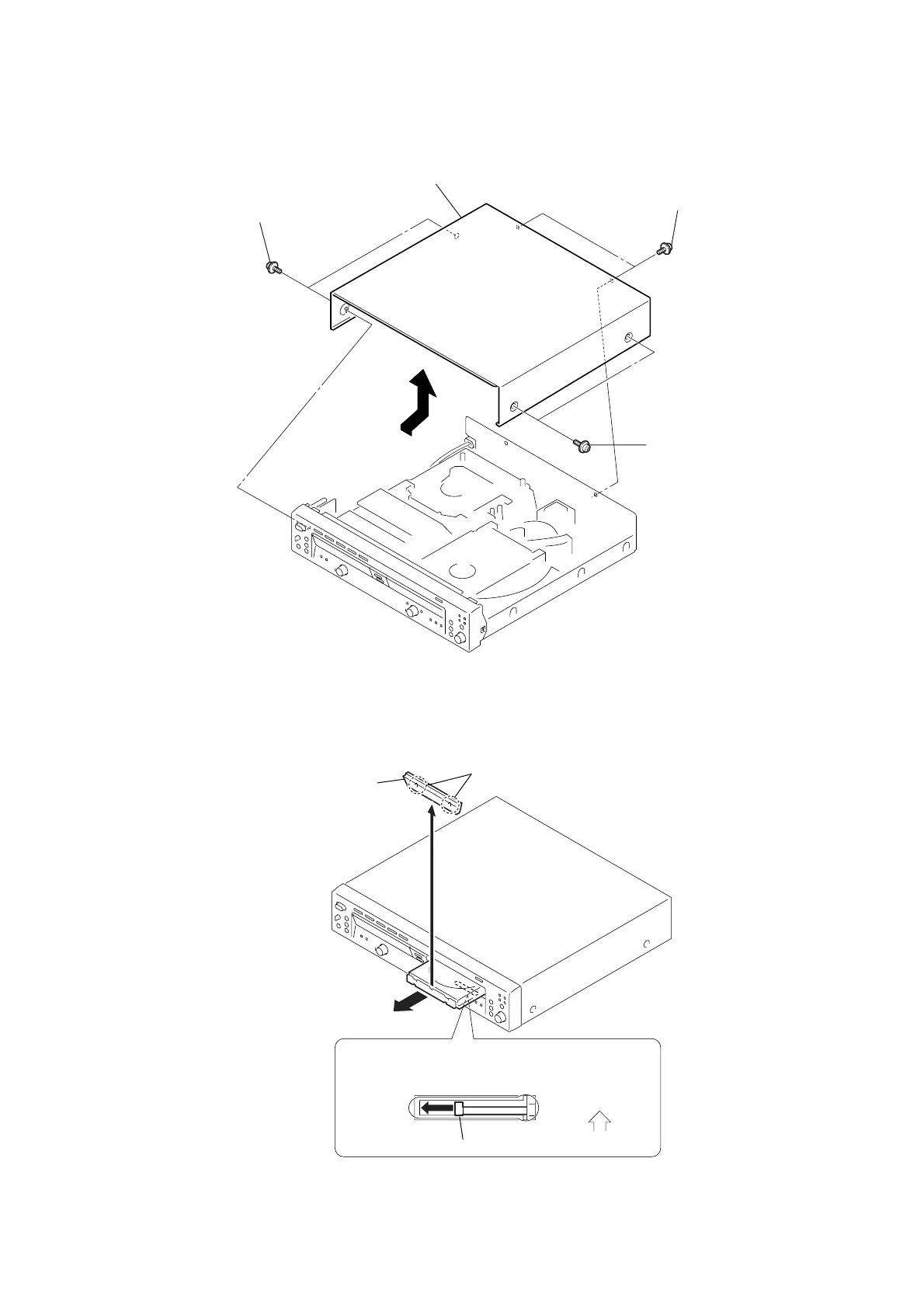

4 case (409538)
2 two screws
(case 3 TP2 3
× 8 )
3 two screws
(case 3 TP2 3
× 8 )
1 two screws
(case 3 TP2 3
× 8 )
1 Slide the lever (cam (CH)) to the direction of arrow.
Front panel side
CD mechanism deck (CDM65-RBD2)
3
2
lever (cam (CH))
two hooks
4 loading panel (CDR)
