Sony RDR-GX210 User Manual

16

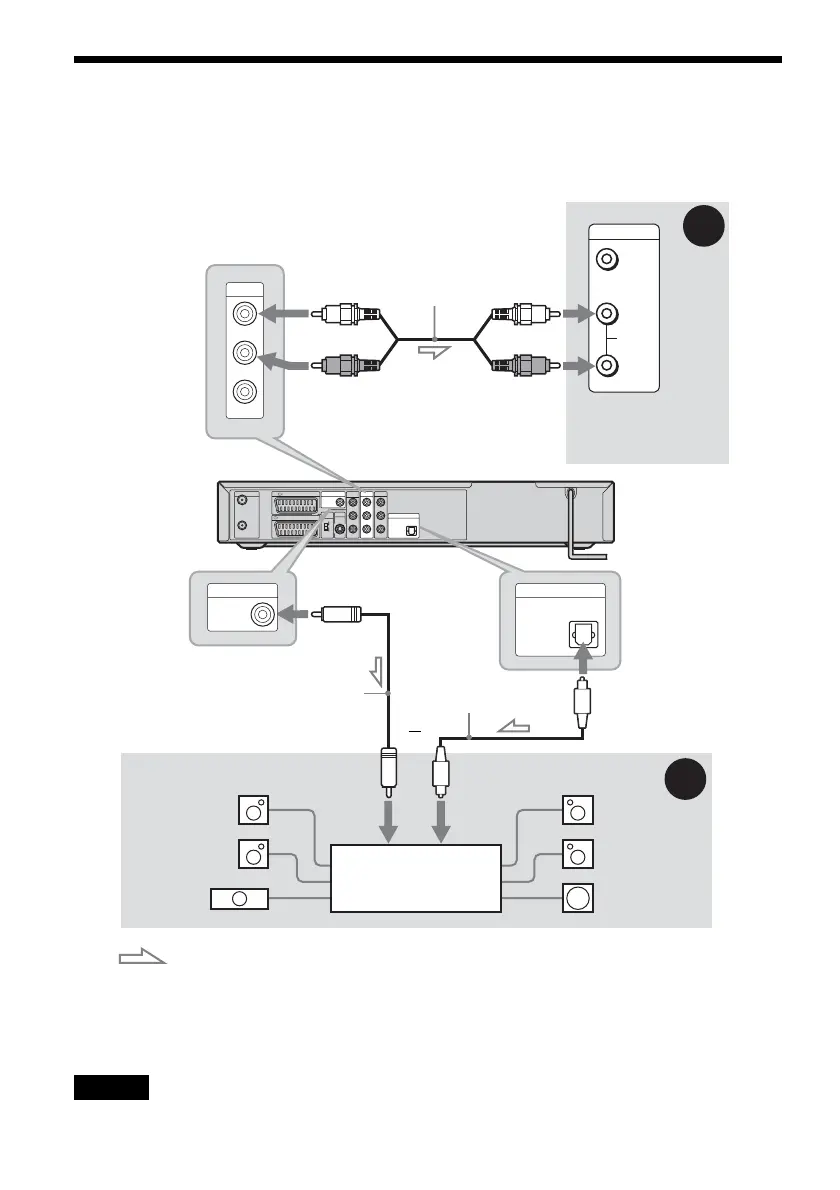

Step 4: Connecting the Audio Cords
Select one of the following patterns A or B, according to the input jack on your TV monitor, projector,
or AV amplifier (receiver).
This will enable you to listen to sound.
z Hint
For correct speaker location, see the operating instructions supplied with the connected components.
Note
Do not connect your TV’s audio output jacks to the LINE IN (AUDIO L/R) jacks at the same time. This will cause
unwanted noise to come from your TV’s speakers.
VIDEO
AUDIO
INPUT
L
R
AERIAL
IN
OUT
LINE 3 / DECODER DIGITAL OUT
LINE 1 - TV
COAXIAL
PCM/DTS/
MPEG/
DOLBY DIGITAL
COMPONENT
VIDEO OUT
P B /C B
P R /C R
Y
LINE 2 OUT
L
AUDIO
VIDEO
R
LINE 4 IN
L
AUDIO
VIDEO
R
DIGITAL OUT
VIDEO OUT
SELECT
RGB
COMPO-
NENT
OPTICAL
S VIDEO
LINE 2 OUT
PCM/DTS/MPEG/
DOLBY DIGITAL
DIGITAL OUT
OPTICAL
PCM/DTS/MPEG/
DOLBY DIGITAL
B
A
LINE 2 OUT
L
AUDIO
VIDEO
R
DIGITAL OUT
COAXIAL
PCM/DTS/
MPEG/
DOLBY DIGITAL
AV amplifier (receiver)
with a decoder
(red)
TV, projector, or AV
amplifier (receiver)
Audio cord
(supplied)
: Signal flow
Coaxial digital cord
(not supplied)
to DIGITAL OUT
(COAXIAL)
to LINE 2 OUT (AUDIO L/R)
Optical digital cord
(not supplied)
Rear (L)
DVD recorder
(white)
(white)
(red)
[Speakers]
Front (L)
[Speakers]
to optical
digital input
Rear (R)
Front (R)
Subwoofer
or
Centre
to coaxial
digital input
to DIGITAL
OUT
(OPTICAL)
