Guide to Parts and Controls
For more information, see the pages in parentheses.

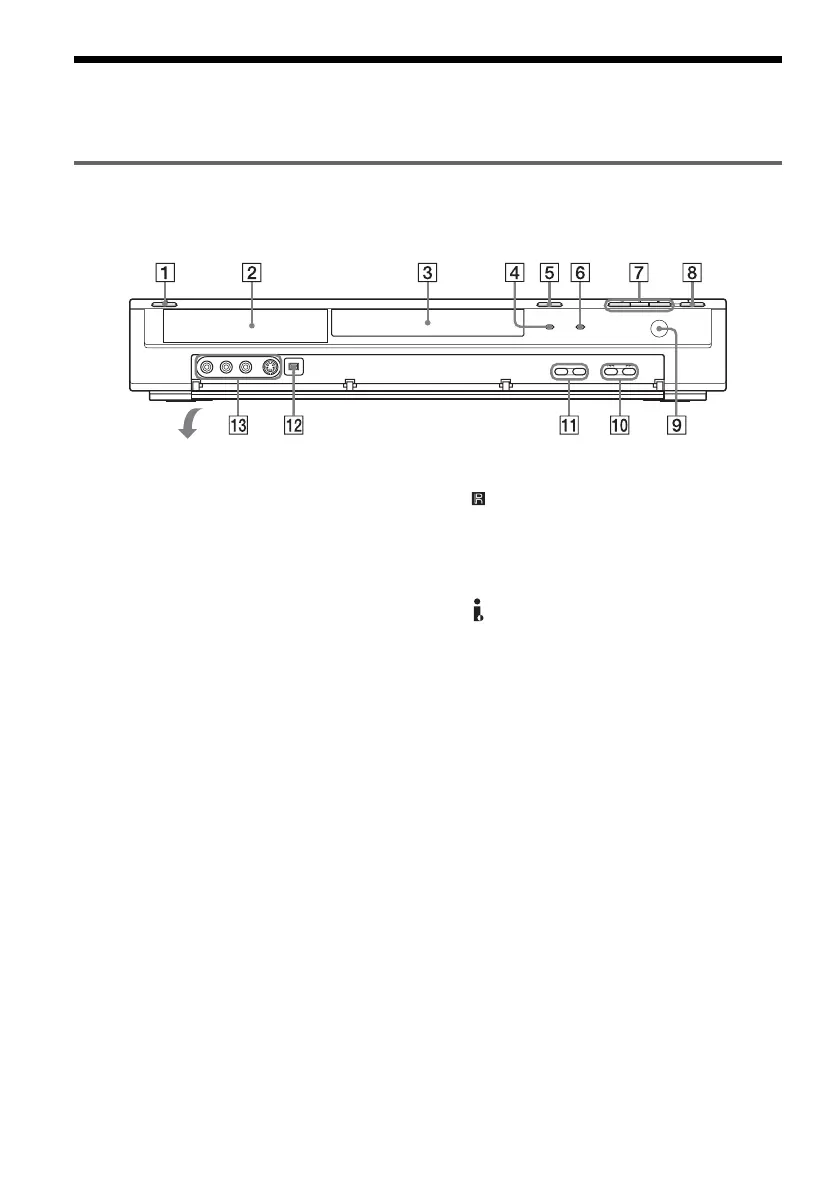

Front panel
Buttons on the recorder have the same function as the buttons on the remote if they have the same or
similar names.
A @/1 (on/standby) button (21, 27, 38, 40)
B Front panel display (31, 88)
C Disc tray (27)
D TIMER REC indicator (38, 40)
E A (open/close) button (27, 49, 54)
F PROGRESSIVE indicator (15)
G H (play) button (47, 53)
X (pause) button (43, 49, 54, 57)
x (stop) button (20, 28, 29, 73)
H z REC button (28, 43, 45, 67)
I (remote sensor) (18)
J ./> (previous/next) buttons (20, 49,
54)
K PROGRAM +/– buttons (28, 43)
L DV IN jack (66)
M LINE 2 IN (VIDEO, AUDIO L/R, S
VIDEO) jacks (24)
To Next Page
