17
Hookups and Settings

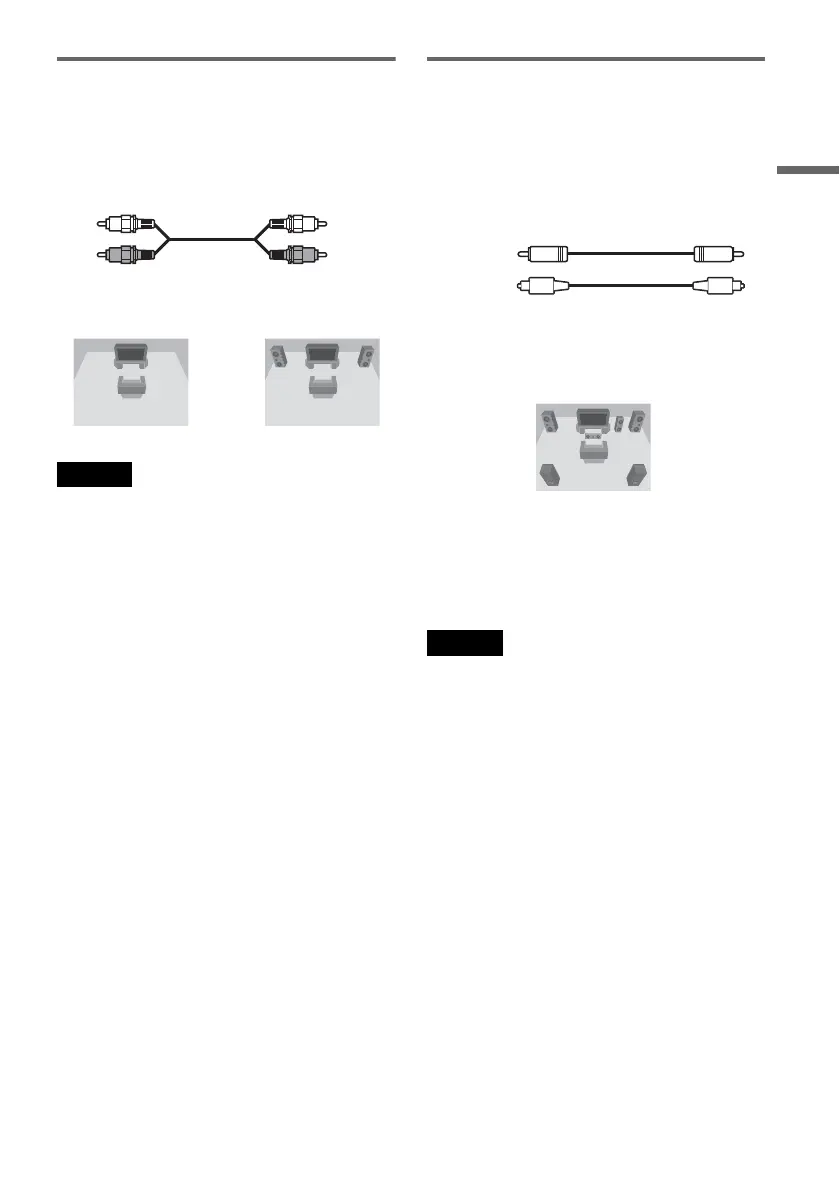

A Connecting to audio L/R input
jacks
This connection will use your TV’s or stereo
amplifier’s (receiver’s) two speakers for sound.
Connect using the audio cord (supplied).
• Surround effect (page 49)
Note
Do not connect the LINE 4 IN (AUDIO L/R) and LINE
2 OUT (AUDIO L/R) jacks to your TV’s audio output
jacks at the same time. This will cause unwanted noise to
come from your TV’s speakers.
B Connecting to a digital audio
input jack
If your AV amplifier (receiver) has a Dolby*
1
Digital, DTS*
2
, or MPEG audio decoder and a
digital input jack, use this connection.
Connect using a coaxial or optical digital cord (not
supplied).
• Surround effect
Dolby Digital (5.1ch), DTS (5.1ch), MPEG audio
(5.1ch)
*1
Manufactured under license from Dolby Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are
trademarks of Dolby Laboratories.
*2
“DTS” and “DTS Digital Out” are registered
trademarks of Digital Theater Systems, Inc.
Notes
• After you have completed connection B, make the
appropriate settings under [Audio] Setup (page 75). If
your AV amplifier (receiver) has an MPEG audio
decoder function, set [MPEG] to [Bitstream] in
[Audio] Setup (page 75). Otherwise, no sound or a loud
noise will come from your speakers.
• The surround sound effects of this recorder cannot be
used with connection B.
White
(L)
Red
(R)
White
(L)
Red
(R)
or
Coaxial cord
Optical cord
To Next Page
